Home Use Solar Power System Inverter off Gird System

Specifications

1.off grid inverter-pure sine wave output
2.wide input range
3.Individual AVR function
4.output precision 7%
5,USB RS232

6,Quiet, high efficient

7,Can connect battery

8,Humanization panels display

9,High overload capacity

10,Backup power supply with quick switch

11,Three-stage charging

12,30A/60A automatic three-stage battery charger

SR series solar inverter is a smart multifunctional solar inverter, consisting of inverters, automatic voltage regulator, conversion circuit, main control circuit and display alarm circuits, etc. designed to protect your computer and other important electronic equipment from power failure, brownouts, sags and surges. The solar inverter can filter out the small voltage fluctuations, when meeting big voltage disturbance, solar inverter can disconnect AC input by solar inverter internal circuit, so that avoid influencing your equipment. SOLAR INVERTER can offer uninterruptible power supply by lead acid battery or lithium battery until the utility power recover normally. when the utility power is normal, SOLAR INVERTER has voltage regulation function by internal automatic voltage regulator. meantime charge the battery. When the utility power is unnormal, solar inverter can change the battery energy into pure sine wave AC power, make the load work.

hybrid solar inverter Application:

Apply to Computer center, Network management center, Communication system, Automatic control system, Precision instrument and equipment, household appliances etc. widely apply to home inverter power supply and solar energy off grid inverter power supply (configurate solar panels and solar controller) etc.

HOME INVERTER Capacity Range is from 600VA to 6000VA.

Home inverter Main features:

1. Online interactive mode design: high-efficiency, high-power charging.

2. Adaptive output frequency adjustment: By automatically tracking the input frequency, adjust the battery inverter's output frequency, when just Battery inverter without utility power, can switch the output frequency via solar inverter front panel.

3. Intelligent interactive regulator: Relay fast interactive switch, with wide input voltage range, improve the output voltage regulation accuracy.

4. Intelligent digital control technology: Adopts 32-bit high-speed microcontroller circuit control, parameter setting, operation management, advanced self-test and self-detection feature, can self-test and fault analysis all the independent circuit on the circuit board to perform a self-test and fault analysis. Adopt SPWM conversion technology, pure sine wave output, to meet your needs.

5. Efficient inverter technology: Adopt ultra-low internal resistance power MOSFET as a power conversion switch, make the work efficiency of the inverter higher, make the performance more stable and reliable.

6. Perfect protection features: input voltage, frequency overrun protection, surge voltage protection, over-current protection, output short circuit protection, over temperature protection, battery overcharge and over discharge protection.

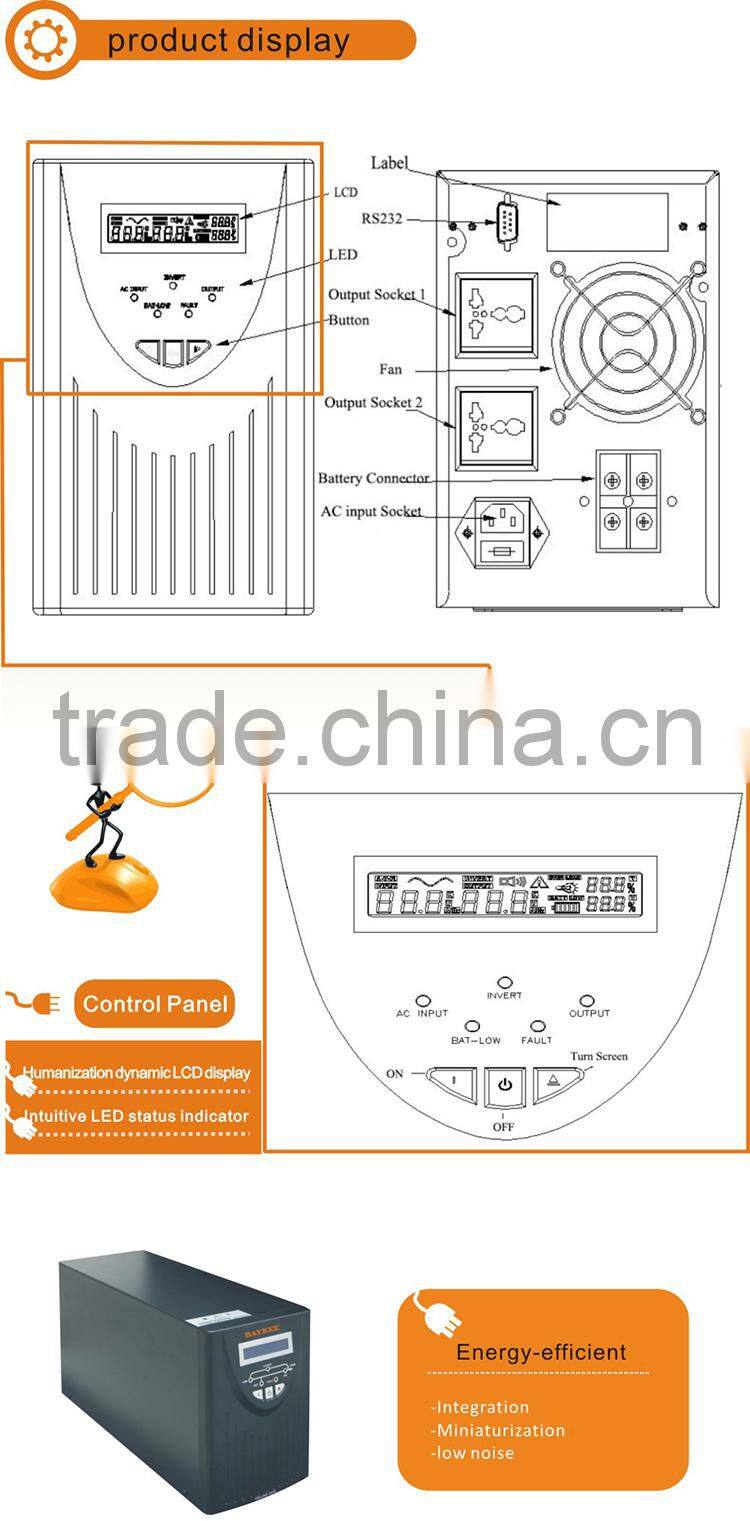

7. Intuitive LED status indicator: the workflow type status indication at a glance.

8. Humane screen dynamic LCD display: the operational status and data visual display, multi-screen data query.

9. Output no-load protection function: when the battery inverter work, if the output load is very small, five minutes will automatically shut down-load protection.

10. High-performance dynamic characteristics: a variety of feedback control using the the instantaneous control mode and rms, both to achieve a high dynamic adjustment, but also reduce the distortion of the output voltage.

11. Intelligent battery management: three-stage intelligent battery charging, automatic battery powered environment are charging and float conversion, temperature compensated charging, discharge management to extend battery life and reduce the burden on the administrator.

12. Intelligent detection function: the system microprocessor from time to time for all the power state, breaker status, fuse status and all the circuit work state line detection, if any fault protection and alarm to notify the administrator immediately.
