off grid solar systems
Off grid solar system for home:
System Capacity | Solar panel | Battery | MPPT controller | Inverter | Energy Per day | Total price |
BKNS-1kw | 4pcs 250w24v | 4pcs 65AH12V | 1pcs 24V40A | 800w | 4 kw/h |
|
BKNS-2kw | 8pcs 250w24v | 4pcs 120AH12V | 2pcs 24V40A | 1.5kw | 8 kw/h |
|
BKNS-3kw | 12pcs 250w24v | 4pcs 200AH12V | 1pcs 48V60A | 2kw | 12 kw/h |
|
BKNS-4kw | 16pcs 250w24v | 8pcs 200AH12V | 2pcs 48V40A | 3kw | 16 kw/h |
|
BKNS-5kw | 20pcs 250w24v | 8pcs 200AH12V | 2pcs 48V50A | 4kw | 20 kw/h |
|
BKNS-6kw | 24pcs 250w24v | 16pcs 200AH12V | 2pcs 48V60A | 4kw | 24 kw/h |
|
BKNS-7KW | 28pcs 250w24v | 16pcs 200AH12V | 3pcs 48V50A | 5KW | 28 kw/h |
|
BKNS-8KW | 32pcs 250w24v | 16pcs 200AH12V | 3pcs 48V60A | 6KW | 32 kw/h |
TYN series three phase solar UPS
Introductions:
TYN series UPS is professional off grid solar ups,it is not only with the performance of common ups,more important it can be finish the off grid solar system function with baykee PDU.
Work model description;
1,When solar power sufficient,system will turn to solar inverter model automatically;
2,When solar power insufficient, it will limit charge current,delivery the power to load as much as possible;
3,When power of load is greater than or similar to the power that solar absorb, solar ups can choose AC power supplemental priority or battery power supplement,then guarantee the load can work normally:
4,If the AC power is not available (grid power or generator),system will choose battery power to discharge automatically;
When solar power recover, solar ups start automatically, to start the recycle energy conversion;
The special solar ups system from baykee, is one of the most advance system in local market at present. It is not only consider the system balance, also consider the charge and energy transfer in complicated status,this system also is baykee research by ourselves.

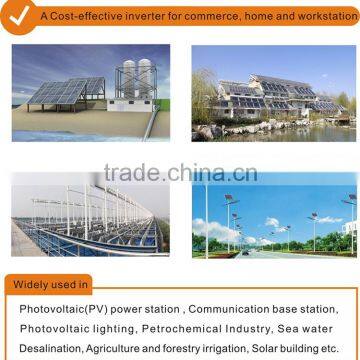

Applications:
TYN series solar UPS, champion UPS, industrial UPS from 10KVA to 600KVA ,It's designed specially for data management center, manufacture industry, petrify system, metallurgical industry, power system etc. It's the best protection equipment for various kinds of important equipments. Widely use in: power supply for restaurant,power supply for office use,power supply for factory,power supply for outdoor,power supply for desert middle part.
Main Features:
1. flexible setting energy sequence;
2. AC bypass configuration ;
3. High Efficiency (Up to 95%) ;
4. intelligent distribute load type, improve the use ratio effectively;
5. EPO (Emergency Power Off) ;
6. solar input ,load and charge balance automatically;
7. Low installation and operating costs ;
8. solar energy data is clear at a glance,calculate the energy by solar absorb directly and accurately
9. inverter efficiency is 98% max;
10. LCD shows the solar energy flow chart and data;
11. Low Total Harmonic Distortion Level (THD </= 3%) ;
12. Synchronization Capability with external sources ;
13. 50/60 Hz Frequency Converter version is available ;
14. intelligent generator input compatible, once the system power not enough,send a signal to start generator automatically;
15. Intelligent battery management system extends the lifetime of batteries;
16. Different voltage applications with refer to country mains characteristic.
3. Benefits of Solar Power
Now is a great time to go solar and harvest the power of the sun. Here is our top ten list of the benefits to installing solar power:
- When installed, solar energy is free – no resources are consumed
- Help to lessen our dependence on heavily polluting coal power stations
- Fossil fuels can't last forever, future generations will appreciate the effort
- You are gaining energy independence - add battery backup power for even greater energy security
- The cost of electricity is only going to rise – insure against that rising cost
- Quality solar power and water adds value and appeal to your home
- Solar PV systems are easily upgraded in future - aim to make your house a net energy producer!
- Solar panels offer a long lifetime of low maintenance service, maybe 30-40 years
- Your friends will think you're great!
- You'll feel great for doing your bit for the environment!
Features:
- High Module Conversion Effiiency
- Fast and inexpensive mounting
- 100% EL testing on every modules
- Guarantee positive output tolerance ( 0+3% )
- Withstand high wind and Snow Loads
- Excellent performance in low light environments
ATTENTION:
Above solar energy system configuration is for reference. It can be adjusted based on actual condition and requirement.
All parts have been tested and proven in actual operation with enough reliability and stability. It’s suggested to source
whole system as a pack from us to guarantee the system compatibility.
NOTES:
1. Power output data is based on areas with daily average peak power sunshine of 5hrs.
2. The battery capacity is designed for power storage of 4~5 Hrs PV output.
3. Mounting racks can be specially designed based on site condition.
