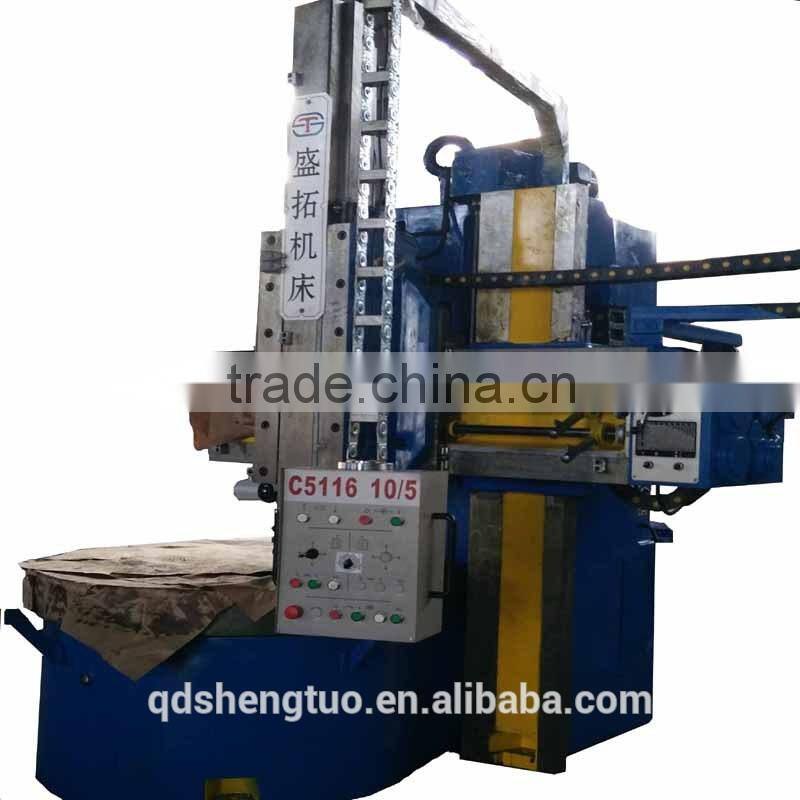

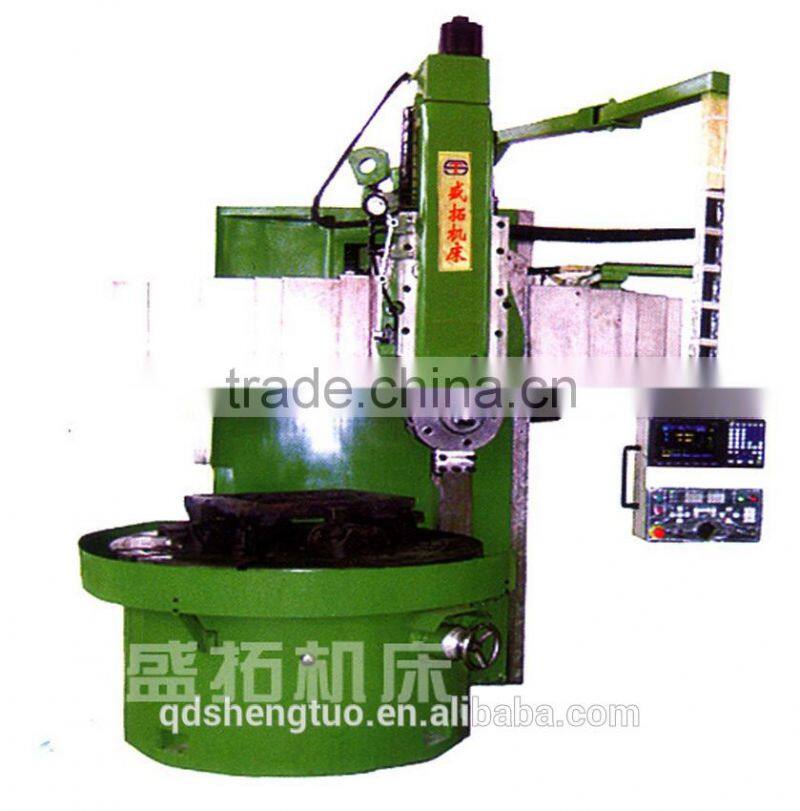

CK5116 Suitable for Processing Large Diameter Tire Molds Vertical Lathe
- qingdao
- T/T Money Gram
You May Like
-
High Quality CK5116 Applied to Mine Machinery Vertical Lathe
-
Hot Sale!!CK5116 Application to Automobile Vertical Machine Tool
-
CK5116 China Shengtuo Processing Large Diameter Flange Vertical Lathe
-
CK5116 Factory Outlets Chemical Machinery Vertical Lathe
-
Shengtuo CK5116 Application to Various Valves Pipelines Vertical Machine Tool
-
Shengtuo CK5116 Application to Propeller Vertical Lathe
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | Normal | Automatic Grade | Semi-Automatic | |
| Max. Swing Diameter | 1600mm | Place of Origin | Shandong, China | |
| Brand Name | Shengtuo | Model Number | CK5116 | |
| Voltage | 380V50HZ | Power(W) | 30KW | |
| Dimension(L*W*H) | Various | Weight | 7000kg | |
| Certification | CE ISO9100 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CK5116 Suitable for Processing Large Diameter Tire Molds Vertical Lathe
This lathe is a special-purpose vertical lathe and it is suitable for processing the internal/external cylindrical surface, conical surface, end face and so on with large-diameter for all kinds of workpieces . This lathe is reasonable in structure and strong in rigidity with large power and good stability, and what's more, it's beautiful in appearance and easy for operation, really the ideal product for processing all kinds of large-diameter workpieces.
Specifications:
Item | ST-CK5116 vertical lathe | Unit | |
Max. swing diameter of workpiece | 1600 | mm | |
Maximum torque of table | 2500 | KN.m | |
Table diameter | 1400 | mm | |
Max. height of workpiece | 1000/1500 | mm | |
Max. weight of workpiece | 5000/8000 | kg | |
Max.cutting force of tool post | 25 | KN | |
Max. cutting force of side tool post | :20 | KN | |
Range of table speed(2 step/stepless) | 5-160 | r/min | |
Feed range of tool post (2step/stepless) | 0.8-86 | r/min | |
Fast moving speed of tool post | 1800 | mm/min | |
Section height of tool bar | 40 | mm | |
Vertical travel of rail head | 800 | mm | |
Level travel of side tool post | 500 | mm | |
Vertical travel of side tool post | 980 | mm | |
Machine power supply | 380v,50HZ,3P | ||
Overall dimensions | 2830× 2870× 3400 | mm | |
Lathe weight | 13.8/14.1 | t | |
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flanges.
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
- 24hours service
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport.
