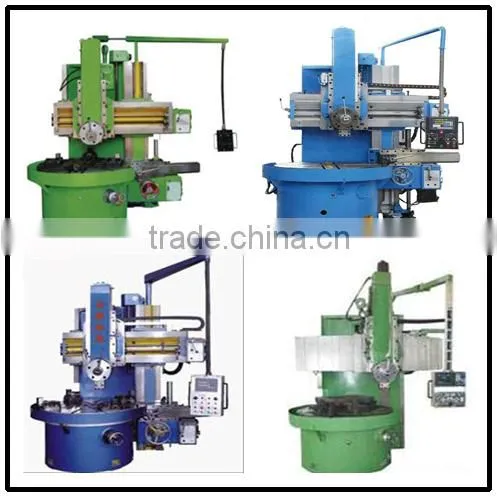

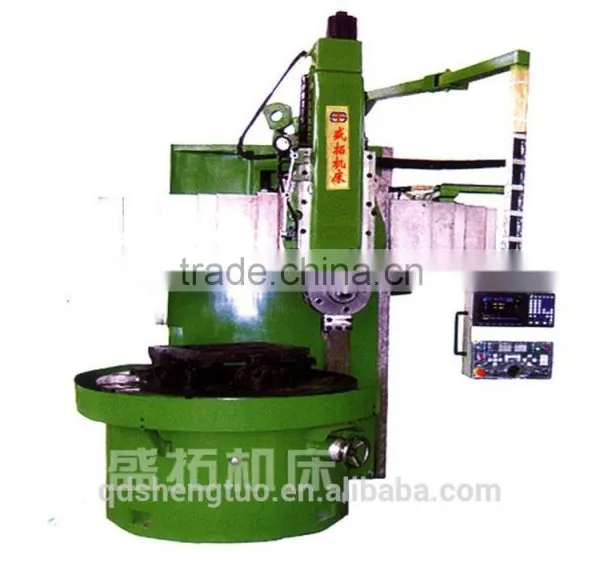

China Suppliers Vertical Lathe Machine Price with Reasonable Price and Excellent Quality
It is widely applied to many industries,such as rubber machinery, textile machinery,chemical machinery, automobile manufacturing ,tire mould machinery and so on. It is mostly used to process various flanges, valves, pressure vessels, boilers,tire moulds,plastic moulds, boilers and other workpieces.
Specification:
Item |
Unit |
Parameter |
C5116 |
|
Singal column lathe |
Worktable diameter |
mm |
1400 |
Maximum cutting diameter |
mm |
1600 |
Maximum height of workpiece |
mm |
1000 |
The largest workpiece weight |
t |
5 |
Vertical tool rest max cutting force |
KN |
24.5 |
Table speed range |
r/min |
5-160(Stepless Adjustable) |
Tool rest feeding range |
mm/min |
0.8-86(Stepless Adjustable) |
Tool post horizontal travel |
mm |
815 |
Tool post vertical travel |
mm |
800 |
Vertical tool rest rotation |
degree |
±30° |
Side tool post horizontal travel |
mm |
630 |
Side tool post vertical travel |
mm |
900 |
Main motor power |
kw |
30 |
Overall dimension |
mm |
2660X2660X3300 |
Company Information
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flange
Brand image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
FAQ :
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
3. Question :What’s your material your lathe machine?And how was your quality of products?
RE: Our material of lathe is cast iron,which have the function of Fixed and prevent vibration.As for quality I want to tell you the important part is spindle of lathe machine,we used the best durable spindle in China in order to produce heavy workpiece
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport.
Our mission:
Shengtuo is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 certificate in 2000, CE certificate in 2005 for ensuring the best in quality.
