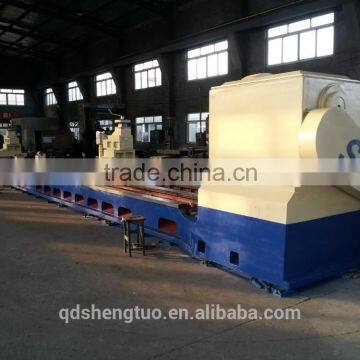

2016 New Style Heavy Duty Lathe Machine/Floor-Type Lathe Machine

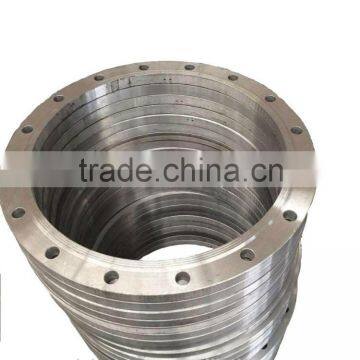

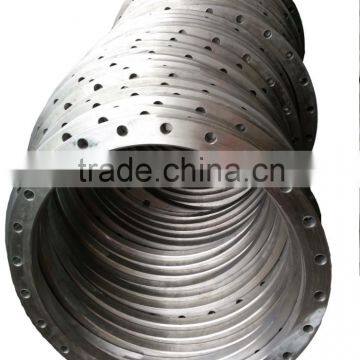

It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery, chemical machinery, automobile manufacturing,tire mould machinery and so on. It is mostly used to process various flanges,valves,pressure vessels ,tire moulds, plastic moulds, shafts, rotary drumsboilers and other workpieces.
Specifications:
Item | ST-C6024 with a base and a tailstock | Unit |
Max. swing diameter of workpiece | 2400 | mm |
The cross-feed travel of slide carriage | 450 | mm |
The longitude-feed travel of slide carriage | 1500 | mm |
Max. length of workpiece | 1500(can change with the workpiece) | mm |
Max. weight of workpiece | 6000 | kg |
The main motor speed | 960 | r/min |
Chuck diameter | 1600 (optional) | mm |
The quantity of the chunk jaws | 4 | set |
Number of spindle speeds | 6 | level |
Spindle diameter | 220 | mm |
Cutter bar section size | 50×50 | mm |
Spindle speed range | 13~103 | r/min |
Power of main motor | 15 | KW |
Power of feed motor | 1.1 | KW |
Taper type of tailstock quill | morse taper 6 | |
Adjusting mode of feed motor | stepless |
|
Base | 1 | set |
Tailstock | 1 | set |
Machine power supply | 380v,50HZ,3P | |
Overall dimensions | 4500×3500×2400 | mm |
Lathe weight | 15 | t |
Standard Configuration : 1 set of headstock,1 piece of 4-jaw chuck Φ1600mm(500mm-long per jaw),1 piece of chuck wrench,1 set of 1.7m bed, 1 base,1 set of 11kw main motor,1 set of feed rate motor. | ||
Optional Configuration:1 tailstock, 2.1m or 2.5m bed,2m or 3m or 4m or 5m bed,customer can choose one of the chucks Φ 1200mm,1800mm, 2000mm,2250mm. | ||
Specific Notice:Customer can customize the lathe according to their work piece.(Based on changing configuration). | ||
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flanges.
.
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
- 24hours service
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport,
