China Manufacturer Universal Lathe Machine With Top Quality
- Qingdao
- T/T
You May Like
-
China Manufacturer High Quality New Chinese Lathe With Low Price
-
China Manufacturer Low Price New Chinese Lathe With Top Quality
-
Professional Factory High Quality Cheap Prices Machine Tool Equipment for Sale
-
National Standard CW61125B CNC Flange Floor Machine Tool
-
CW61125 Shengtuo Manufacturer Direct Marketing High Precision Horizontal Lathe Machine
-
Processing Workpiece Max Diameter 2.4m Floor Spilt Machine Tool Equipment
Product Details
| Condition | New | Type | Other, Landing | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 2200mm | Place of Origin | Shandong, China | |
| Brand Name | Qingdao ShengTuo | Model Number | C6022 | |
| Voltage | 380V | Power(W) | 15KW | |
| Dimension(L*W*H) | 3200*2200*2500mm | Weight | 3000kg | |
| Certification | CE ISO9100 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

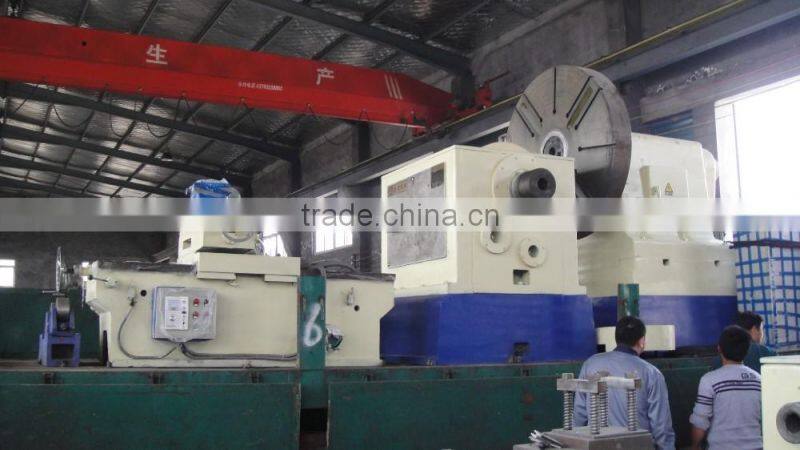

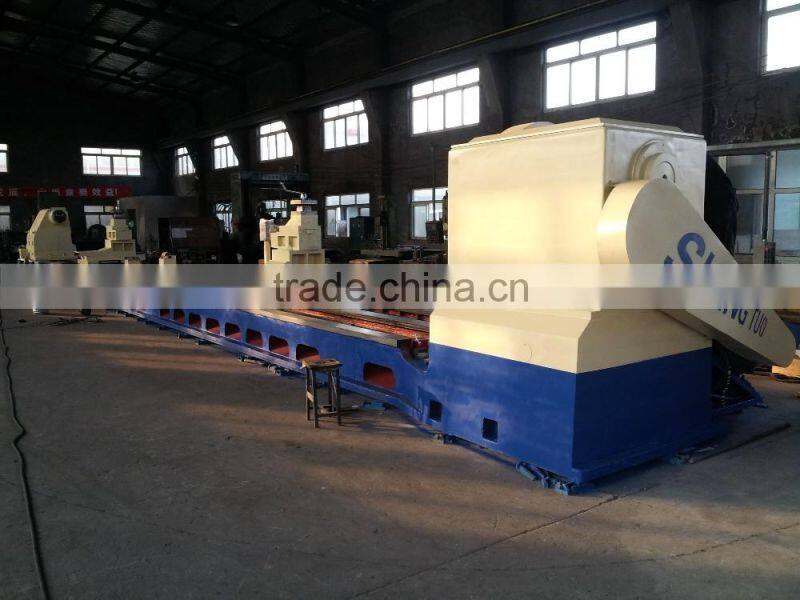

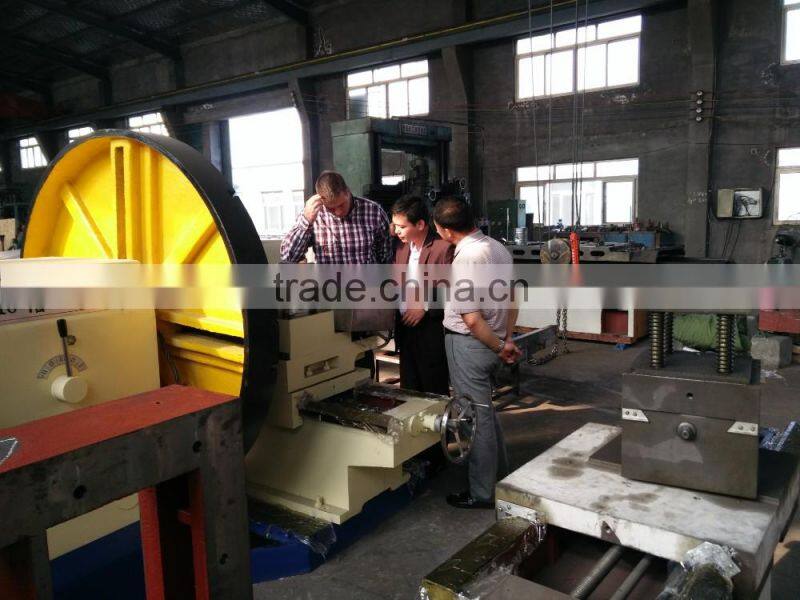

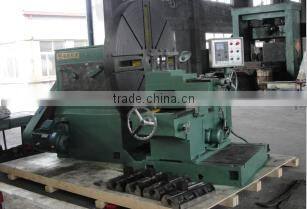

China Manufacturer Universal Lathe Machine With Top Quality
It is widely applied to many industries,such as rubber machinery, textile machinery,chemical machinery, automobile manufacturing ,tire mould machinery and so on. It is mostly used to process various flanges, valves, pressure vessels, boilers,tire moulds,plastic moulds, boilers and other workpieces.
Specification:
| ST-C6022 | Unit | |
Type of machine | Facing Lathe |
|
|
Max. swing diameter of workpiece | 2200 | mm |
|
The cross-feed travel of slide carriage | 1000 | mm |
|
The longitude-feed travel of slide carriage | 400 | mm |
|
Max. length of workpiece | 700 | mm |
|
Max. weight of workpiece | 4000 | kg |
|
Chuck diameter | 1600 | mm |
|
The quantity of the steel jaws | 4 | set |
|
Number of spindle speeds | 6 | level |
|
Spindle diameter | 190 | mm |
|
Spindle bore | 50 | mm |
|
Cutter bar section size | 50×50 | mm |
|
Spindle speed range | 21~216 | r/min |
|
Power of main motor | 11 | KW |
|
Power of feed motor | 1.1 | KW |
|
Adjusting mode of feed motor | stepless |
|
|
Machine power supply | 380v,50HZ,3P |
| |
Lathe weight | about 7 | t |
|
Standard configuration:1 headstock, 1piece of 4-jaw(500 mm-long per jaw) chuck Φ 1600mm, 1 piece of chuck wrench, 1 bed(1.56m-long), 1 base, 1 main motor(11kw), 1 feed motor. |
| ||
Optional configuration: Extended bed and floor,chuckΦ1400mm,1600mm,1800mm and 2000mm.500mm-long jaws. |
| ||
Specific Notice: Customers can customize the lathes according to their workpieces. |
| ||
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flange
.
