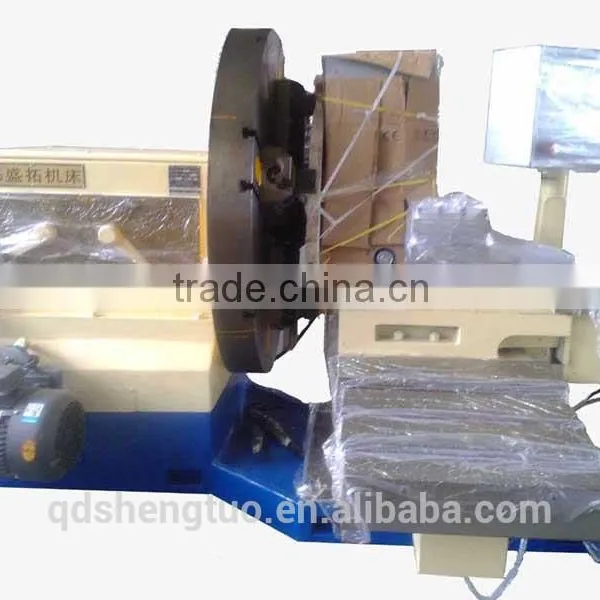

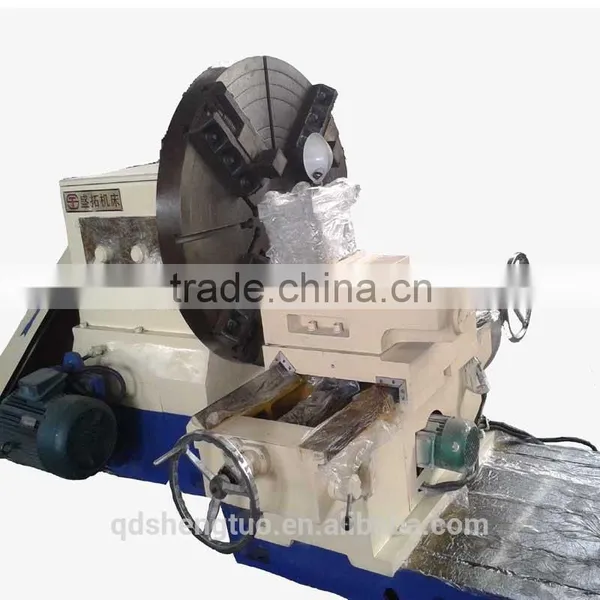

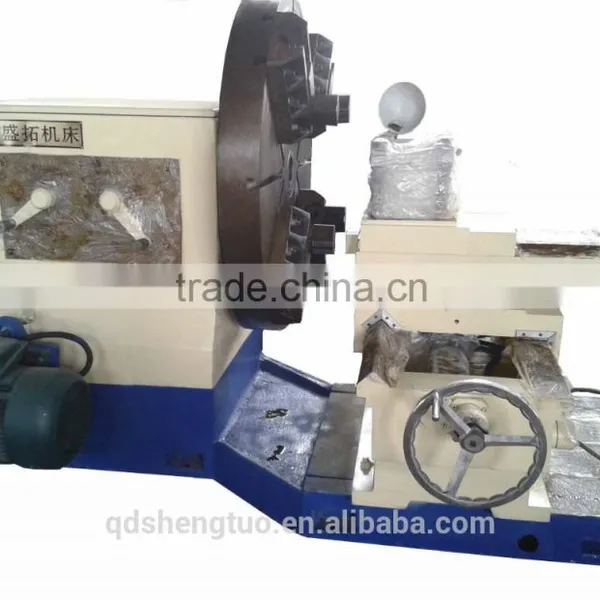

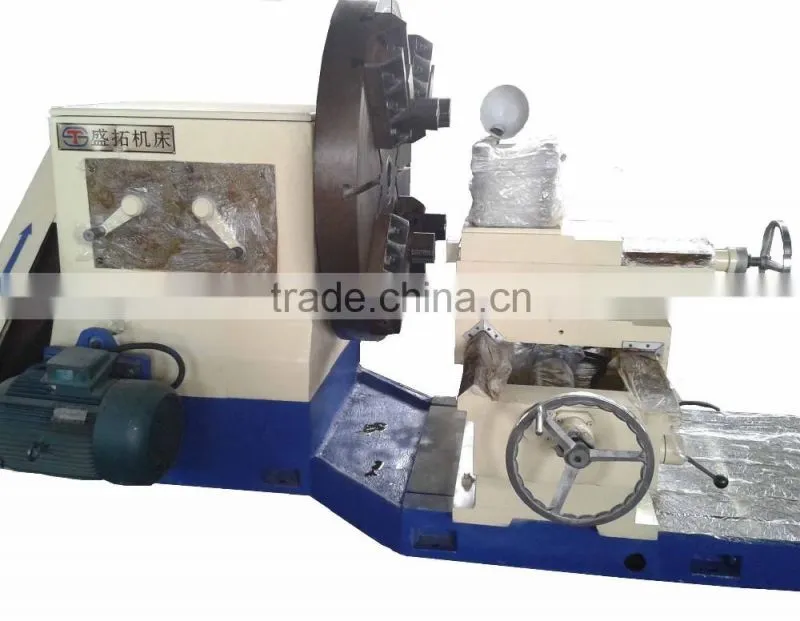

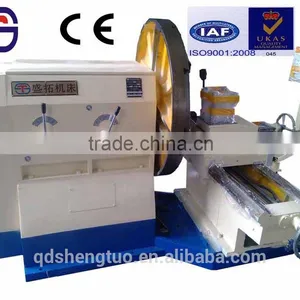

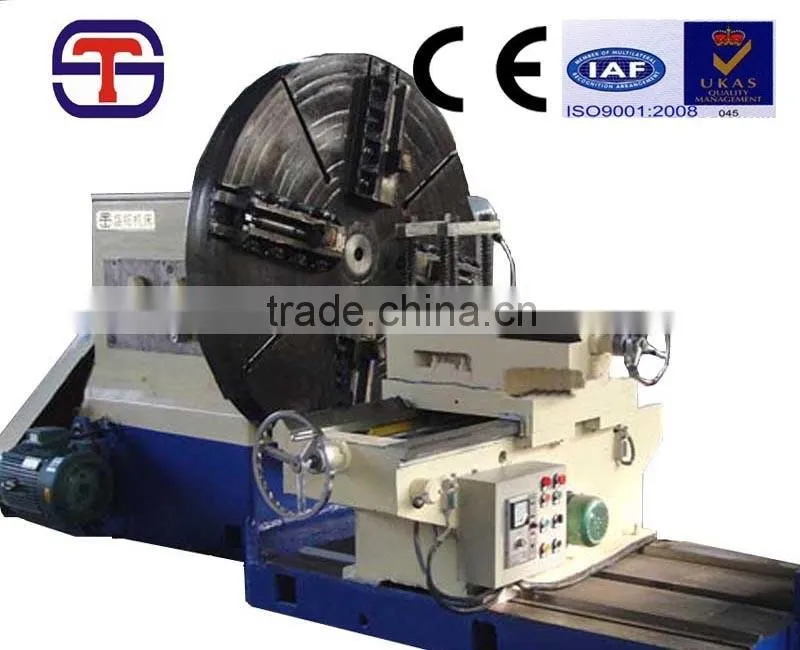

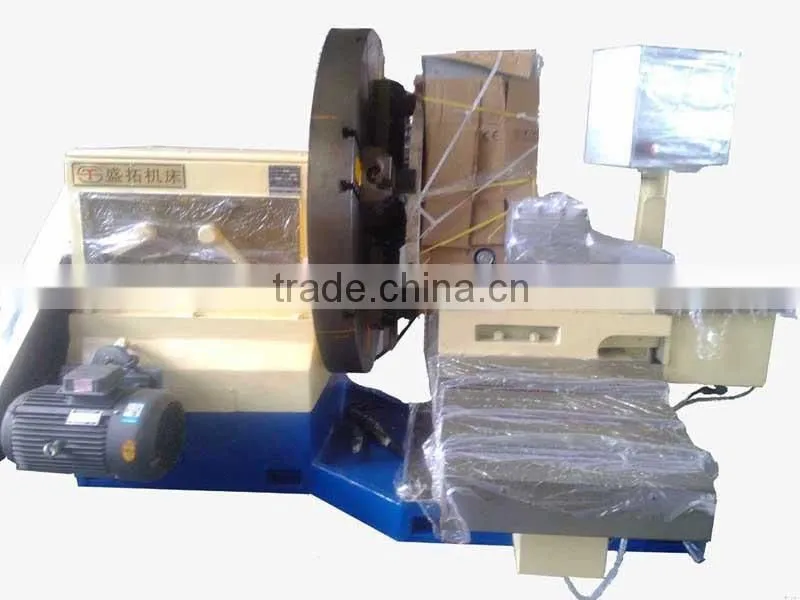

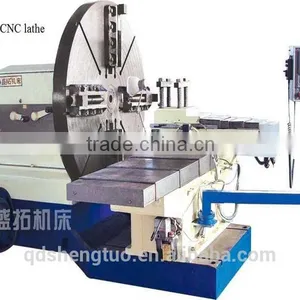

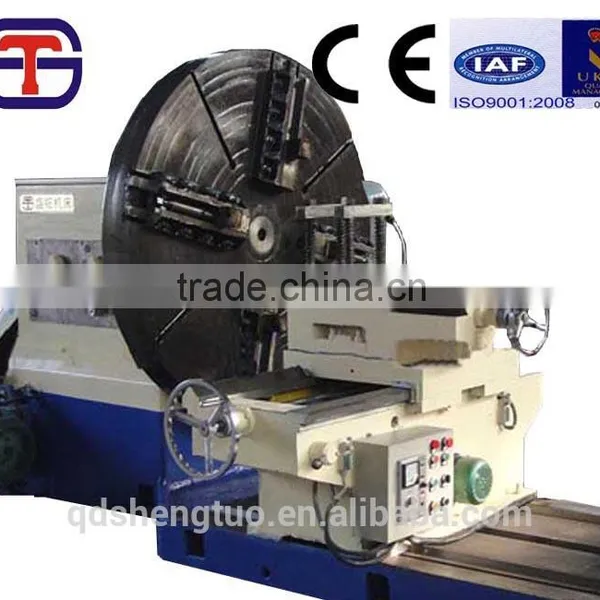

C6016 Shengtuo Suitable for Wind Power Equipment Landing Lathe
It is widely applied to many industries,such as rubber machinery, textile machinery,chemical, automobile manufacturing ,tire mould machinery and so on. It is mostly used to process various flanges, valves, pressure vessels, boilers,tire moulds,plastic moulds, boilers and other workpieces
.
Item |

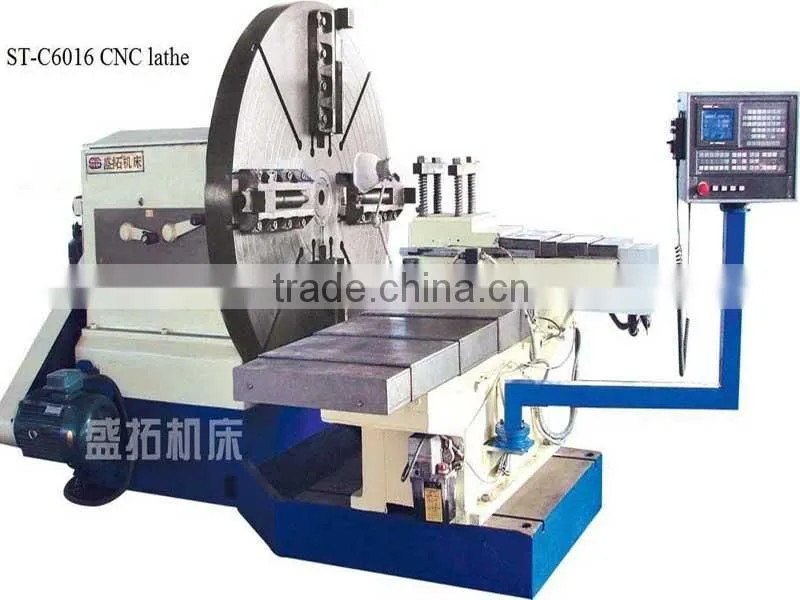

ST-C6016 CNC lathe |
Unit |
|
Max. swing diameter of workpiece |
1600 |
mm |
|
The cross-feed travel of slide carriage |
800 |
mm |
|
The longitude-feed travel of slide carriage |
400 |
mm |
|
Max. length of workpiece |
400 |
mm |
|
Max. weight of workpiece |
3000 |
kg |
|
Height of center |
800 |
mm |
|
Chuck diameter |
1200 |
mm |
|
The quantity of the chunk jaws |
4 |
set |
|
Spindle diameter |
190 |
mm |
|
Spindle speed range |
0~216 |
r/min |
|
Power of main motor |
11 |
KW |
|
Guangzhou CNC system |
TDB |
set |
|
Ball screw(made in China) |
2 |
set |
|
Electric lubrication system |
1 |
set |
|
Safety cover |
1 |
set |
|
Adjusting mode of feed motor |
Frequency control |
|
|
Machine power supply |
380v,50HZ,3P |
|
|
Overall dimensions |
3000× 2000× 1800 |
mm |
|
Lathe weight |
about 5 |
t |
|
Standard configuration: 1 headstock, 1piece of 4-jaw(350mm-long per jaw) chuck Φ 1200mm, 1 piece of chuck wrench, 1 bed(1.36m-long), 1 base, 1 main motor(11kw), 2 servo feed motors,1 CNC system. |
|
||
Optional configuration: Extended bed and floor,chuckΦ1200mm,1600mm and 500mm-long jaws. |
|
||
Specific Notice: Customers can customize the lathes according to their workpieces. |
|
||
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flanges.
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
- 24hours service
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport.
