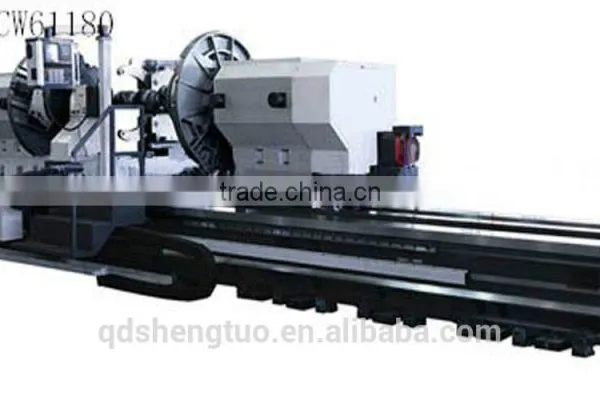

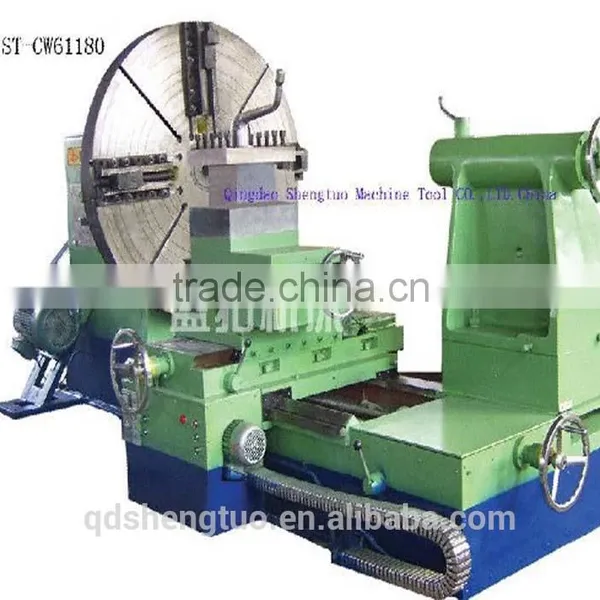

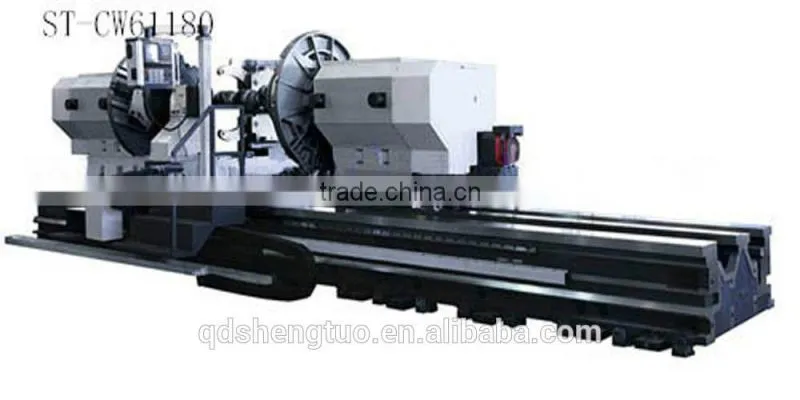

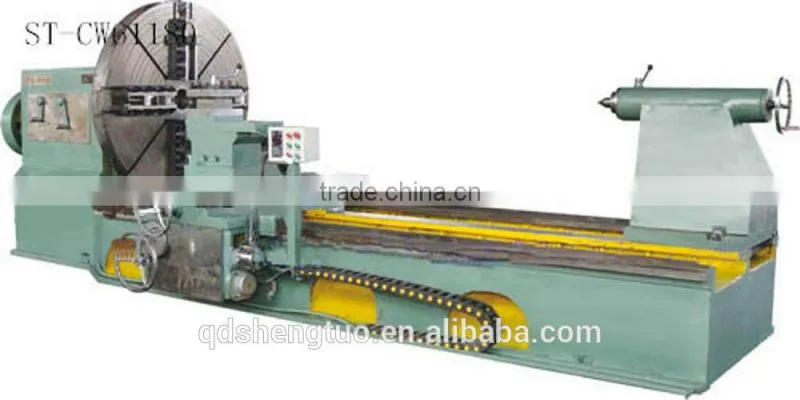

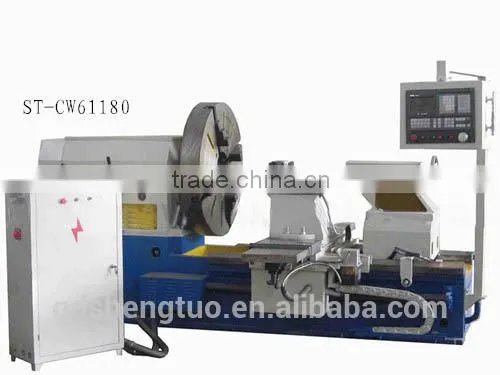

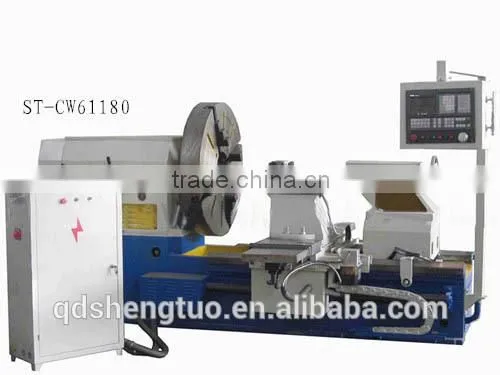

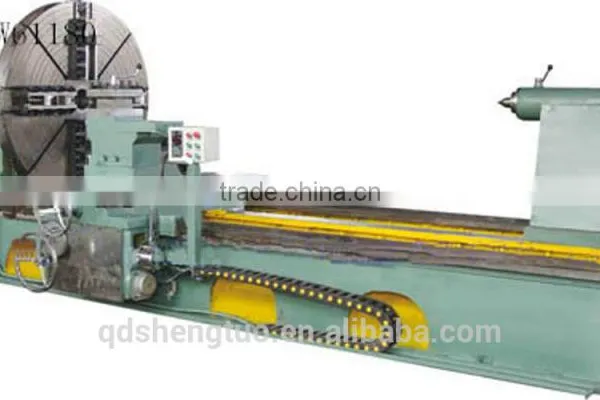

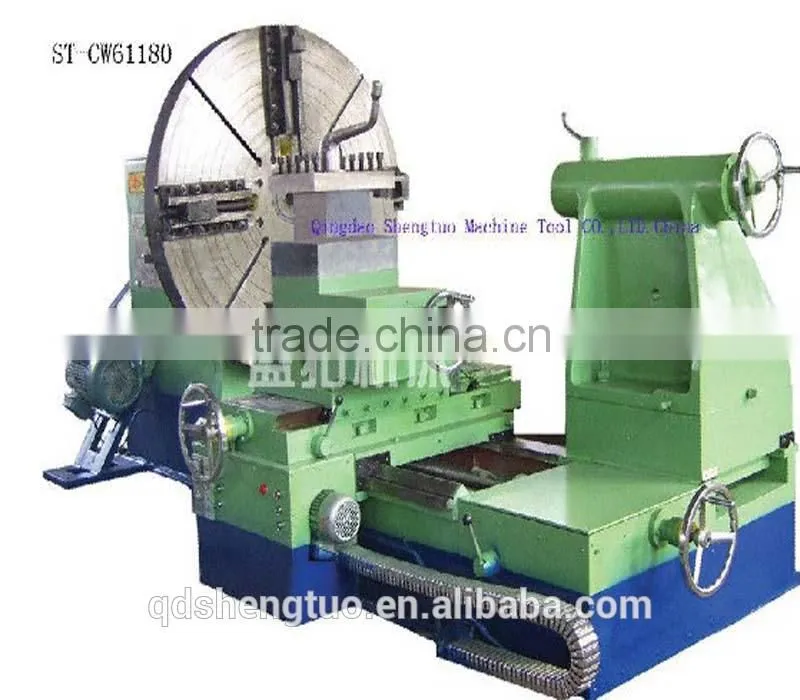

Processing Large Diameter CNC Facing Lathe
Description:

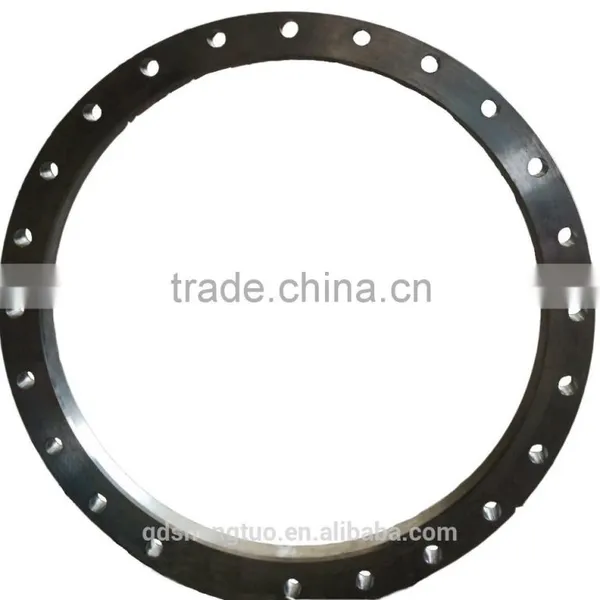

It is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on. And it is mostly used to process largediameter tire moulds, largediameter flanges, various valves and pipelines, pressure vessels, screw propeller,steamer machine accessories and other workpieces.
This kind of machine is for cutting and processing various metal workpieces.
It is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on. And it is mostly used to process large-diameter tire moulds, large-diameter flanges, various valves and pipelines, pressure vessels, screw propeller,steamer machine accessories and other workpieces.
Specifications:
Item |
CW 6180B*3000mm |
Unit |
|
Max. swing diameter of workpiece |
800 |
mm |
|
Max swing diameter over tool post |
520 |
mm |
|
Max swing diameter over gap |
1000 |
mm |
|
Max. length of workpiece |
3000 |
mm |
|
Max. weight of workpiece |
2.5 |
t |
|
The quantity of the chunk jaws |
3 |
set |
|
Spindle diameter |
104 |
mm |
|
Spindle speed range |
5.4~720 |
r/min |
|
Power of main motor |
11 |
KW |
|
Power of feed motor |
1.1 |
KW |
|
Coolant pump motor |
0.09 |
KW |
|
Adjusting mode of feed motor |
stepless |
|
|
Machine power supply |
380v,50HZ,3P |
||
Overall dimensions |
5155×1450×630 |
mm |
|
Lathe weight |
6 |
t |
|
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flanges.
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
- 24hours service
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport.
