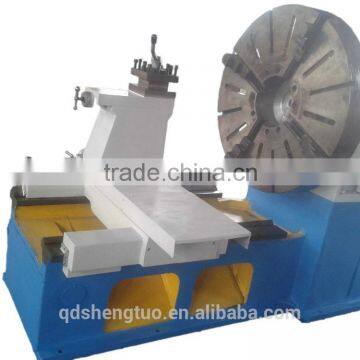

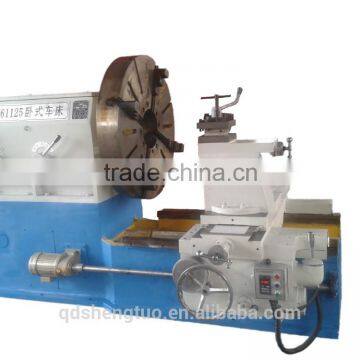

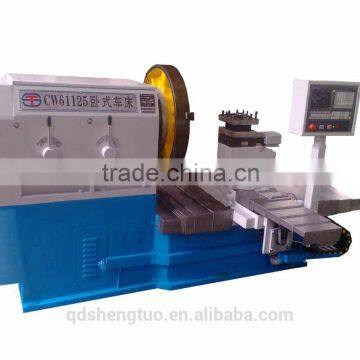

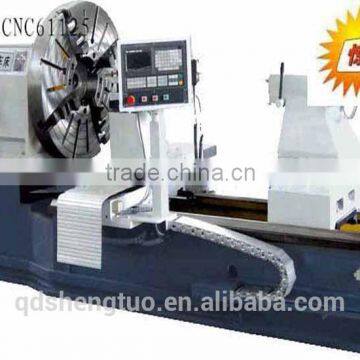

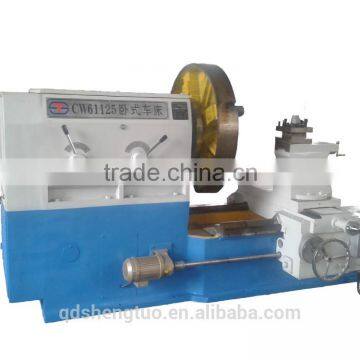

CW61125 2016 New Fashional Design Applied to Processing Flange Horizontal Lathe Machine It is widely applied to many industries,such as rubber machinery,mine machinery, textile machinery,chemical machinery ,automobile manufacturing, tire mould machinery and so on. Our main products: heavy duty face lathes, horizontal lathes ,combination lathes, CNC lathes, vertical machines, face milling machines, milling machines ,etc. This lathe is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces . This lathe is reasonable in structure and strong in rigidity with large power and good stability, and what's more, it's beautiful in appearance and easy for operation, really the ideal product for processing all kinds of large-diameter workpieces. The feed system of this lathe adopts frequency control motor to realize the stepless speed regulation. This makes the choice of feed rate more convenient.
Specifications:
Item | ST-CW61125 | Unit |
Max. swing diameter of workpiece | 1250 | mm |
Max.swing diameter over slide carriage | 1000 | mm |
Max.the travel of tool post (cross) | 650 | mm |
Max. travel of tool post(longitudinal) | 2000 | mm |
Max. length of workpiece | 550 | mm |
Max. weight of workpiece | 2000 | kg |
Chuck diameter | 800 | mm |
Giudeway width | 760 | mm |
Spindle diameter | 190 | mm |
Spindle bore | 50 | mm |
Cutter bar section size | 50×50 | mm |
Spindle speed range | 23~180 | r/min |
Power of main motor | 11 | KW |
Taper type of tailstock quill | morse taper 6 |
|
Automatic tool post | 240 | mm |
Safety cover | 1 | set |
Machine power supply | 380v,50HZ,3P | |
Overall dimensions | 3500×1650×1700 | mm |
Lathe weight | about 5 | t |
Standard configuration:1 headstock,1 bed and 1slide carriage, 1 piece of chuckΦ800mm equip with 4 steel jaws, 1 tailstock, 2 chuck wrenches.1 main motor. | ||
Optional Configuration:1 piece of chuck Φ1000mm,1 main motor(6 level 11kw),1 lengthening bed. | ||
Specific Notice: Customers can customize the lathes according to their workpieces.(Based on changing configuration). | ||
Qingdao Shengtuo Machine Tool Co.,Ltd is specialied in manufacturing large -diameter surfacing lathes.The major products are heavy duty landing lathes,horizontal lathes,vertical lathes,CNC,heavy duty lathes,flange lathes,roll turning lathes.We owned the certificate of CE and ISO9100.
It is widely applied to many industries,such as rubber machinery,textile machinery,mine machinery,chemical machinery, Air Accessories,paper machinery, Boiler and Pressure Vessel,wind power accessories and other processing various flanges.
1. Are you a factory or trading company ?
RE: Shengtuo was founded in 1998 and has a history nearly 20 years in manufacturing lathes. Through reformation we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 2008, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
- 24hours service
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Qingdao City. Which is only 30 minutes away from Qingdao Airport.
