Home > Products > Auto Brake Disc > 424992 1815203734 Ceramic Brake Disc Rotor Used for Peugeot Citroen Auto

424992 1815203734 Ceramic Brake Disc Rotor Used for Peugeot Citroen Auto

FOB Price

USD $4 - $10 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

424992 1815203734 Ceramic Brake Disc Rotor Used for Peugeot Citroen Auto

Reference Number
4249K0 424924 424925 424992 1611841980 1440027088 9467548587 9467548588 9467548488 92157000 2155210032 313734 1815203734 3815203734
Vehicle Application
Passenger Car

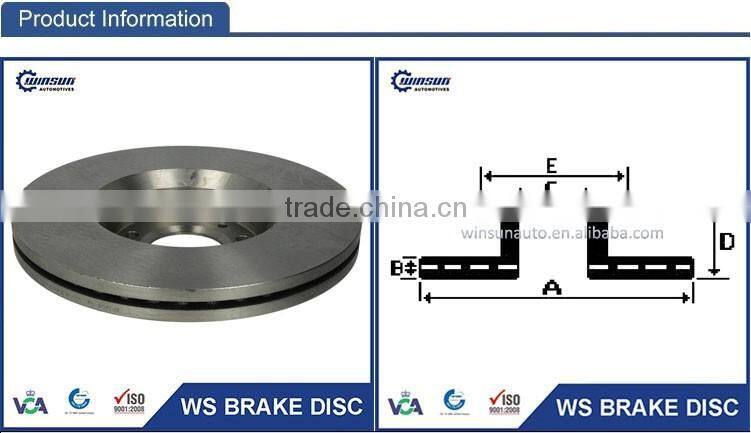

Specification
	Item Name	424992 1815203734 Ceramic Brake Disc Rotor Used for Peugeot Citroen Auto
A	Diameter	304 mm
B	Brake Disc Thickness	28 mm
C	Centering Diameter	71 mm
D	Height	48.5 mm
E	Pitch Circle Diameter	108 mm
	Number of holes	5
	Location	FRONT
	Solid or Vented	VENTED

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
