China Factory 4249A5 92092800 European Car Solid Break Disc for Sale
US$ 4 - 10
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Brake Discs
Material:
Gray Cast Iron
Certification:
ISO/TS 16949
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4246R9 92092803 European Car Disc Break From China ManufacturerUS$ 4 - 10MOQ: 50 Pieces -
4246R8 11155210024 Coated Car Break Disc Used for Peugeot 206 306 Citroen XsaraUS$ 4 - 10MOQ: 50 Pieces
-
4249K7 424930 92157400 98200157401 Light Truck Disc Brake Rotor Used for Peugeot Boxer Platform ChassisUS$ 4 - 10MOQ: 50 Pieces
-
51740245 51749274 Commercial Car MPV Brake Disc Used for Peugeot Boxer Box Boxer BusUS$ 4 - 10MOQ: 50 Pieces
-
4249A0 0986479298 Disk Brake 280mm Used for Fiat Ducato Flatform ChassisUS$ 4 - 10MOQ: 50 Pieces
Type
Brake Discs
Material
Gray Cast Iron
Certification
ISO/TS 16949
Size
Standard
Car Make
Other
OE NO.
4246R8 4246R9 4249A5
Place of Origin
Shanghai, China
Brand Name
Winmann
Model Number
4249A5
China Factory 4249A5 92092800 European Car Solid Break Disc for Sale
| Reference Number | ||
| 4246R8 4246R9 4249A5 92092800 92092803 11155210024 | ||
| Vehicle Application | ||
| Passenger Car | ||

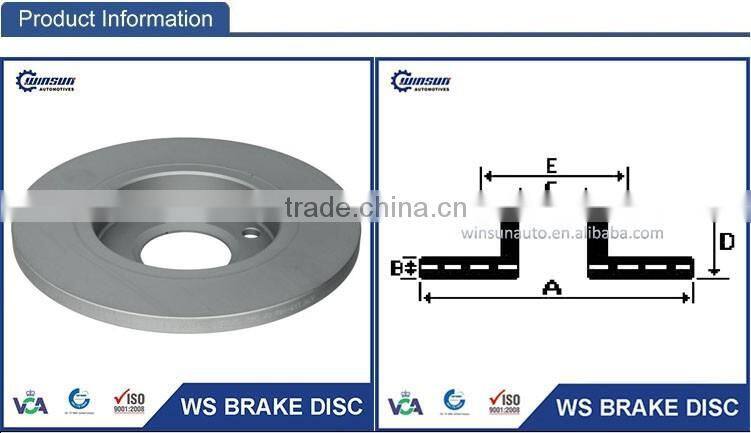

| Specification | ||
| Item Name | China Factory 4249A5 92092800 European Car Solid Break Disc for Sale | |
| A | Diameter | 247 mm |
| B | Brake Disc Thickness | 13 mm |
| C | Centering Diameter | 66 mm |
| D | Height | 34.2 mm |
| E | Pitch Circle Diameter | 108 mm |
| Number of holes | 4 | |
| Location | FRONT | |
| Solid or Vented | SOLID | |
6.1 Material Paragram of brake disc, rotor & brake drum:
Standard |
C |
Si |
Mn |
P |
S |
C.E |
G3000 |
3.1~3.4 |
1.9~2.3 |
0.6~0.9 |
≤ 0.15 |
≤ 0.15 |
3.90~4.15 |
6.2 Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
6.3 Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
| Main Products | |
| C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel | |
| Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set | |
| Main Application | |
| European & American & Japanese Commercial Vehicle, Main Brand Passenger Car |
