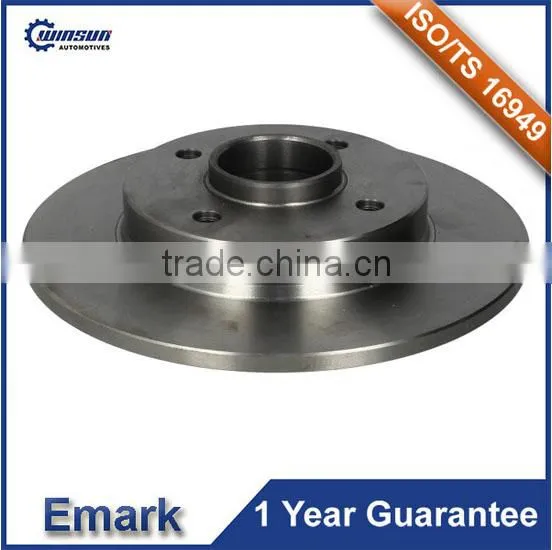

424934 4249Z9 180302200 Disc Brake Rotor Auto Parts Sparin With Kits

Name: 424934 4249Z9 180302200 Disc Brake Rotor Auto Parts Sparin With Kits
Brand: Winmann
SKU: 117531461

US$ 4 - 10 MOQ: 50 Pieces

Key Specifications

Type:

Brake Discs

Material:

Gray Cast Iron

Certification:

ISO/TS 16949

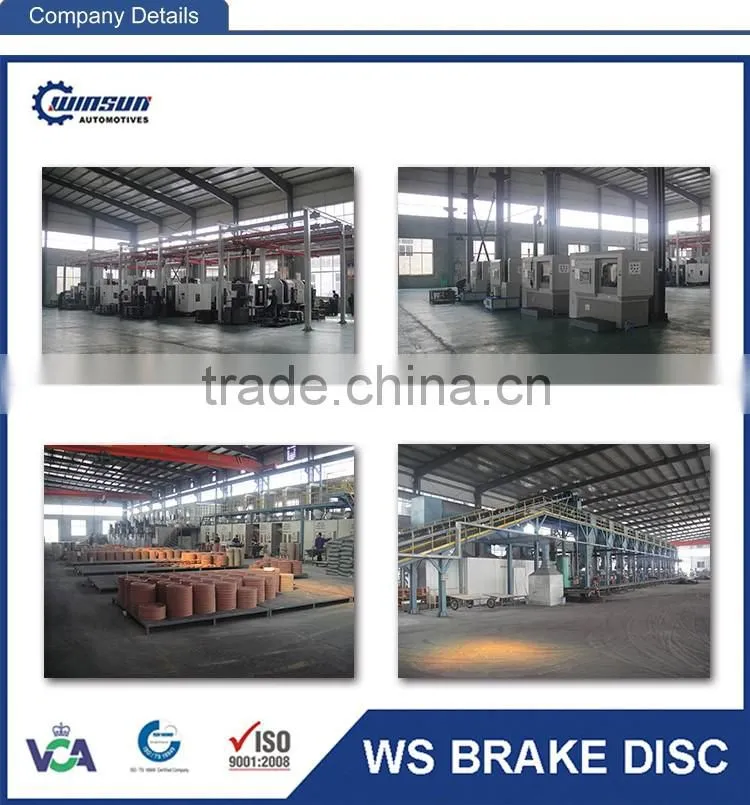

Shanghai Winsun Auto Parts Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Brake Discs

Material Gray Cast Iron

Certification ISO/TS 16949

Size Standard

Car Make Other

OE NO. 424934 4249Z9

Place of Origin Shanghai, China

Brand Name Winmann

Model Number 180302200

424934 4249Z9 180302200 Disc Brake Rotor Auto Parts Sparin with Kits

Reference Number
424934 4249Z9 92133300 98200133301 180302200 11155230041
Vehicle Application
Passenger Car
Specification

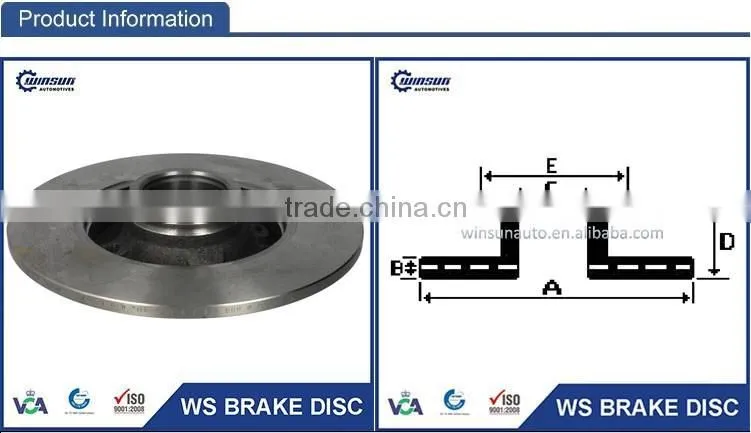

	Item Name	424934 4249Z9 180302200 Disc Brake Rotor Auto Parts Sparin with Kits
A	Diameter	249 mm
B	Brake Disc Thickness	9 mm
C	Centering Diameter	60 mm
D	Height	67.1 mm
E	Pitch Circle Diameter	108 mm
	Number of holes	4
	Location	REAR
	Solid or Vented	SOLID

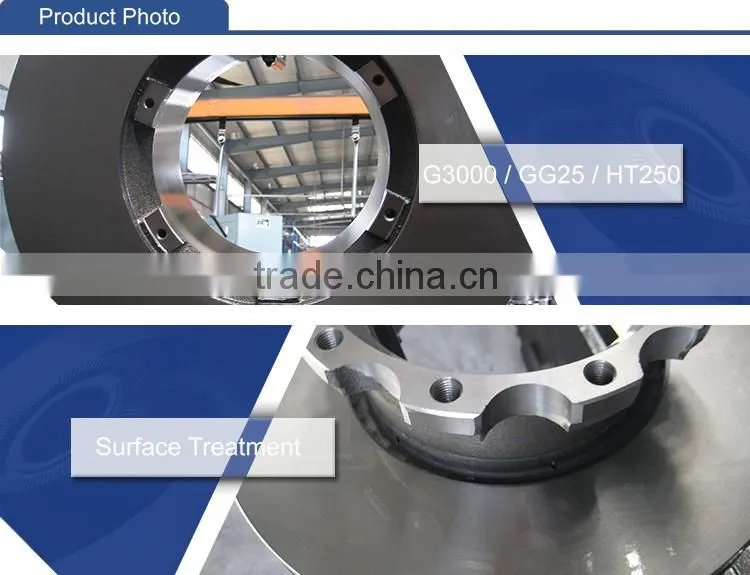

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

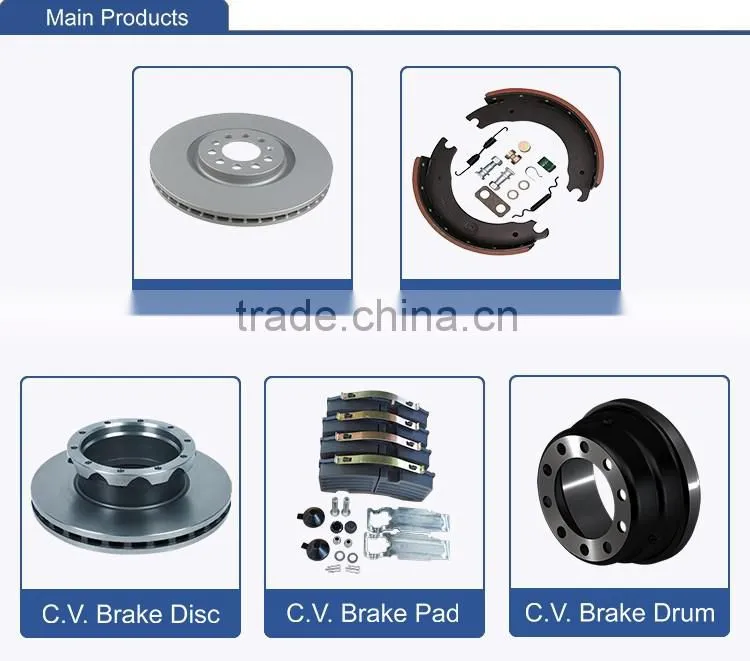

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
