Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Brake > Performance Auto Parts 424966 424965 92168600 92194100 Brake Disk With Bearing Kits

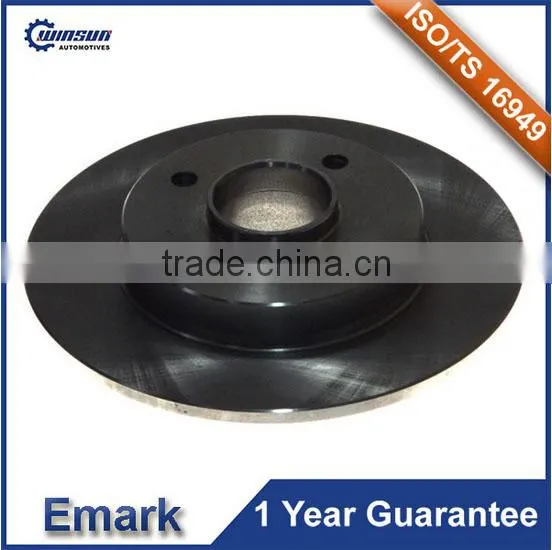

Performance Auto Parts 424966 424965 92168600 92194100 Brake Disk With Bearing Kits
US$ 4 - 10
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Brake Discs
Material:
Gray Cast Iron
Certification:
ISO/TS 16949
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
98200194100 08A85817 Auto Spare Parts Car Disc Rotor for SaleUS$ 4 - 10MOQ: 50 Pieces -
424965 424966 08A85827 Auto Parts France Break Disc With Bearing KitsUS$ 4 - 10MOQ: 50 Pieces
-
424966 440312100 Brake Rotor Auto Parts Wholesale Used for Peugeot 308US$ 4 - 10MOQ: 50 Pieces
-
424932 424919 Brake Disc With Bearing Kits Brazil Auto Parts Used for Citroen C-QuatreUS$ 4 - 10MOQ: 50 Pieces
-
Auto Parts Cross Reference Number 424932 424919 Disc Brake RotorUS$ 4 - 10MOQ: 50 Pieces
Type
Brake Discs
Material
Gray Cast Iron
Certification
ISO/TS 16949
Size
Standard
Car Make
Other
OE NO.
424966 424965
Place of Origin
Shanghai, China
Brand Name
Winmann
Model Number
424966
Performance Auto Parts 424966 424965 92168600 92194100 Brake Disk with Bearing Kits
| Reference Number | ||
| 424966 424965 92168600 92194100 98200194100 08A85817 08A85827 440312100 | ||
| Vehicle Application | ||
| Passenger Car | ||
| Specification | ||

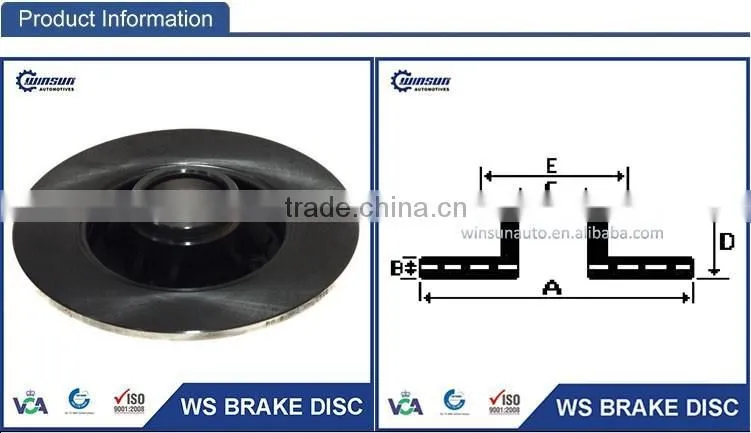

| Item Name | Performance Auto Parts 424966 424965 92168600 92194100 Brake Disk with Bearing Kits | |
| A | Diameter | 249 mm |
| B | Brake Disc Thickness | 9 mm |
| C | Centering Diameter | 55.9 mm |
| D | Height | 73.2 mm |
| E | Pitch Circle Diameter | 108 mm |
| Number of holes | 4 | |
| Location | REAR | |
| Solid or Vented | SOLID | |
6.1 Material Paragram of brake disc, rotor & brake drum:
Standard |
C |
Si |
Mn |
P |
S |
C.E |
G3000 |
3.1~3.4 |
1.9~2.3 |
0.6~0.9 |
≤ 0.15 |
≤ 0.15 |
3.90~4.15 |
6.2 Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
6.3 Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
| Main Products | |
| C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel | |
| Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set | |
| Main Application | |
| European & American & Japanese Commercial Vehicle, Main Brand Passenger Car |
