UK 1375kva Cummins Diesel Generator Set
Generator Supply Scope:
1. Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.brand-new engine, w/ start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
5.Circuit Breaker, Exhaust Silencer
6.Copper Radiator for 50°C ambient temperature and double-deck cooling, with fan guard and front guard
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running(bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Genset secification
Genset Model |
FCG1100E |
Prime Power(50HZ) |
1250kva/1000kw |
Standby Power(50HZ) |
1375kva/1100kw |
Frequency/Speed |
50Hz/1500rpm |
Voltage |
220/380V,230/400V,110/220V,240/415 |
Phases |
Three phases, four wires |
Manufacturer |
FDK Diesel Genset Co.,ltd |

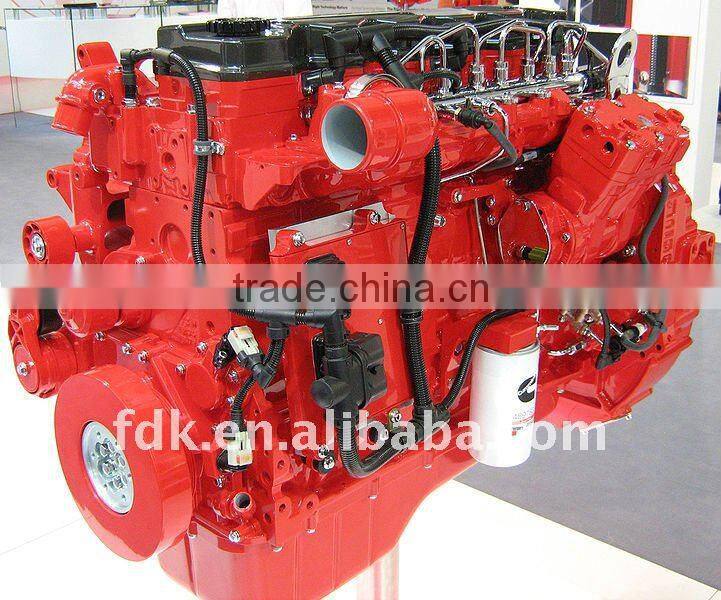

Engine specification
Manufacturer |
UK Cummins Engine Co. Ltd. |
Model |
QSK38-G5 |
Engine speed |
1500rpm |
Engine power prime |
1081 kw/1351kVA |
Type |
4-stroke, 12V-cylinder |
Aspiration |
Turbocharged and after water-cooled |
Governor |
Electrical |
Bore * Stroke |
159×159mm |
Displacement |
37.7L |
Compression ratio |
15:1 |
Type of cooling |
Close type cooling With fan & radiator |
Start type |
24V DC start, start motor comes with built-in battery |

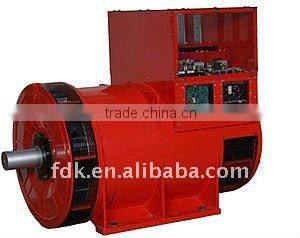

Alternator specification
Manufacturer |
Cummins generator technologies |
Model |
Stamford (LVI634F) |
Output power |
1000KW |
Number of phase |
3 |
Power factor (Cos Phi) |
0.8 |
Altitude |
≤ 1000 m |
Number of Pole |
4 |
Exciter type |
AREP |
Insulation class |
H |
Voltage regulation |
±0.5% |
Bearing |
Single |
Coupling |
Direct |

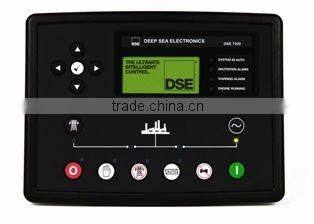

Deepsea & Smartgen Control Panel
Function:
Automatic start/Stop
Control ATS
Protection and Control and Alarming:
Water Temperature
Oil/Fuel Pressure
Engine revolve speed
Ampere Control
Voltage Control
Wire disfunction detecting
Remote control by computer, control cabinet, Even by mobile message
