Hot Sale Electirc Jet Drilling Equipment for Sale

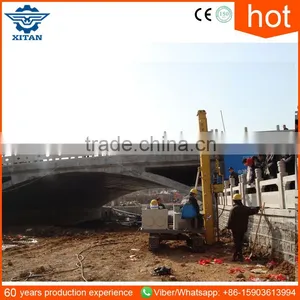

Hot Sale Electirc Jet Drilling Equipment for Sale thumbnail-1
Hot Sale Electirc Jet Drilling Equipment for Sale photo-1
US$ 13,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rotary Drilling Rig, jet drilling equipment
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Xitan Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rotary Drilling Rig, jet drilling equipment
Power Type Electric
Place of Origin Henan, China
Brand Name Xitan
Model Number XL-50
Usage Other, for foundation and reinforcement
Voltage 380V
Power(W) 22kw
Dimension(L*W*H) 4600*1800*1780mm
Weight 2500kgs
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

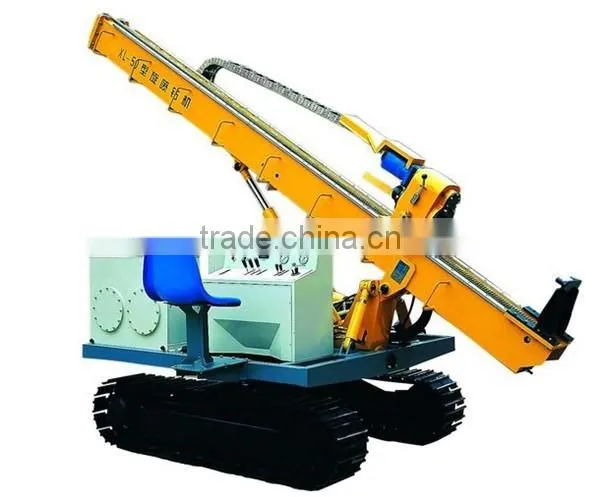

XL-50 jet drilling equipment

XL-50 Track type jet drilling equipment is one drilling rig which could drilling and rotary by itself, doesn't need other drilling rig to leading holes first. So the jet grouting drilling rig with high work efficiency.
Specification
Item
Specification
Drilling depth
50m
Rod Dia.(mm)
42mm, 50mm
Drilling angle range
left and right: +-30 slope forward 100, slope back 900
Moving speed
1.5km/h
Climbing capacity
200
Max. torque
2000N.m
Rotation speed of top-drive head
low: 0-80r/min
high:0-240r/min
top-drive head distance
3500mm
Rated pull force of top-drive head
30KN
Rated thrust force of top-drive head
12KN
Fast lifting and thrust speed of top-drive head/jetting
0.06-0.9/1.8m/min
Lifting and dropping speed of top-drive head
lifing speed: 0-22m/min
dropping speed: 0-28m/min
Main pump pressure
20MPa
Auxiliary pump pressure
20Mpa

Power
Electric motor
22kw
diesel engine
30hp

Overall dimension (L*W*H)
work condition
2600x1800x4600mm
transport condition
4600x1800x1780mm
Weight
2500kg
Main Feature
XL-50 jet drilling equipment

1. Powerful;
2. Top-drive head driven by hydraulic, stepless speed regulation, high efficiency and low labor intensity
Variable hydraulic system with load feedback, low energy consumoment;

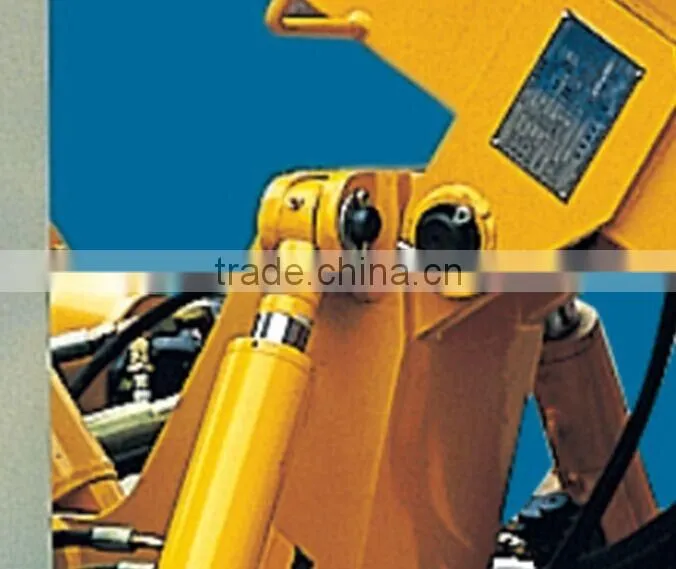

3. First use special valve fixed position by friction, satiable for jet grouting technic;

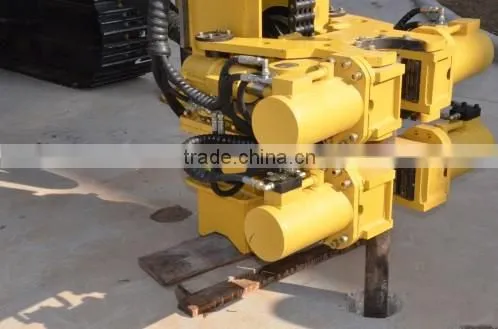

4. Top-drive head has wide range of rotary speed, meet varying layer and drilling technology;

Longer stroke of top-drive head, reduce auxiliary operation time; With rotary support

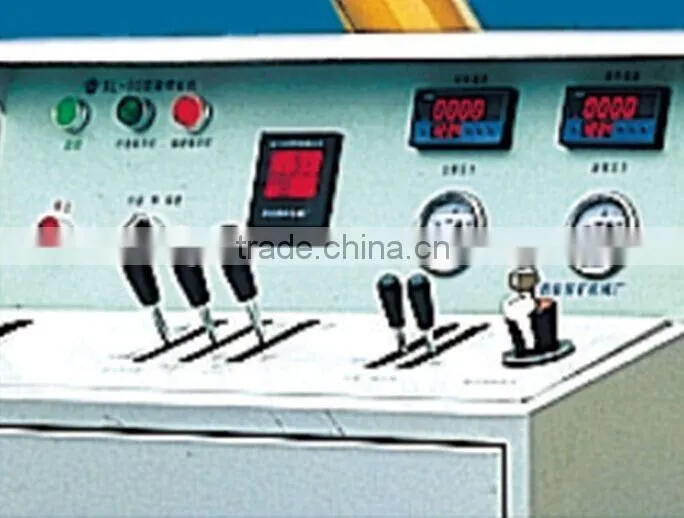

With display unit for verticality of derrick, rotaring of top-drive head and lift speed

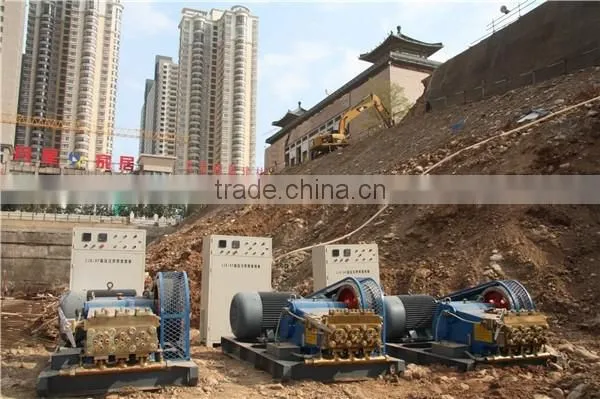

Application

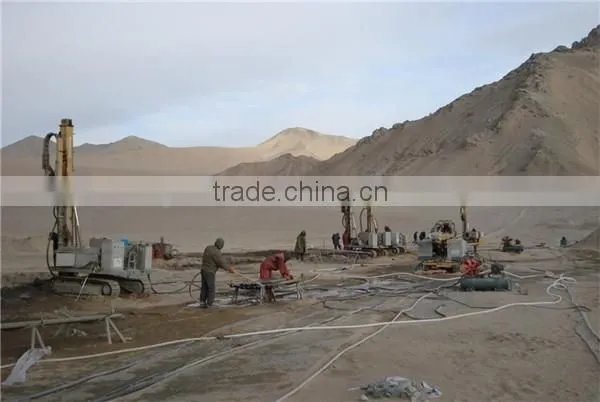

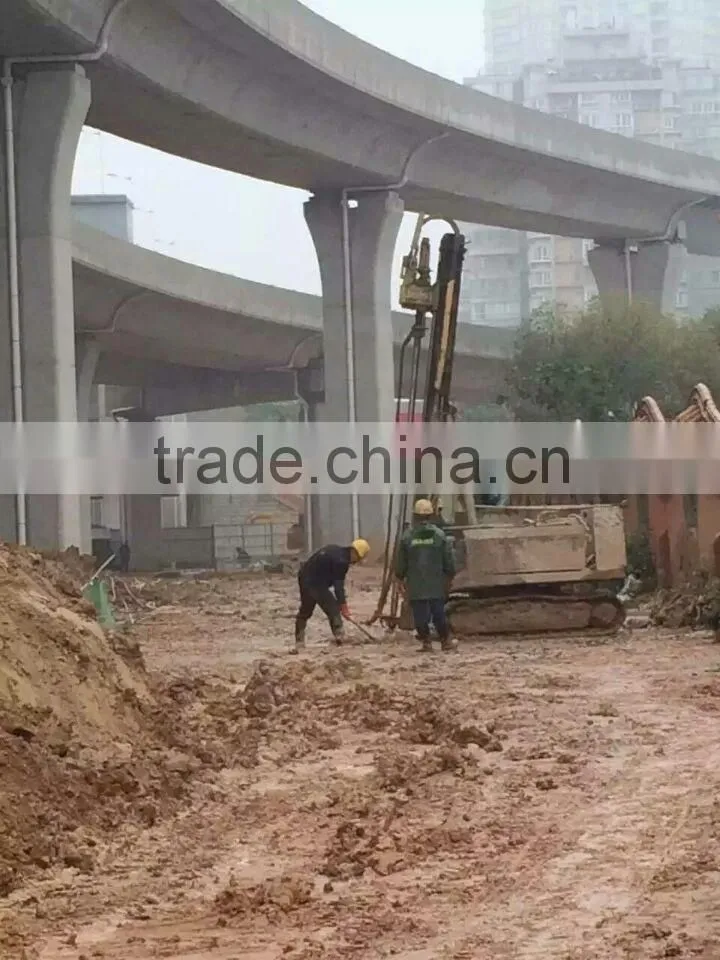

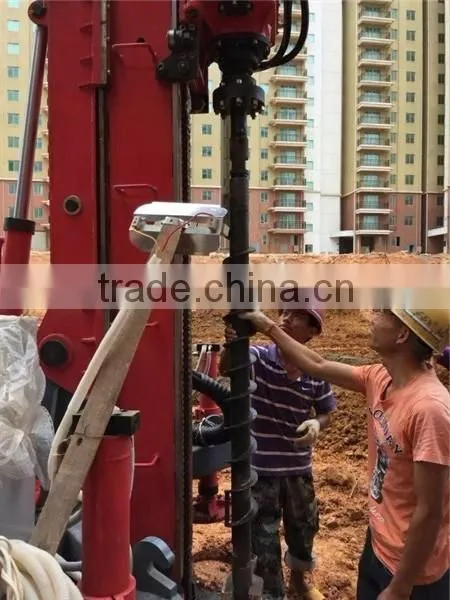

XL-50 crawler anchor drilling rig was  drlling in metro project

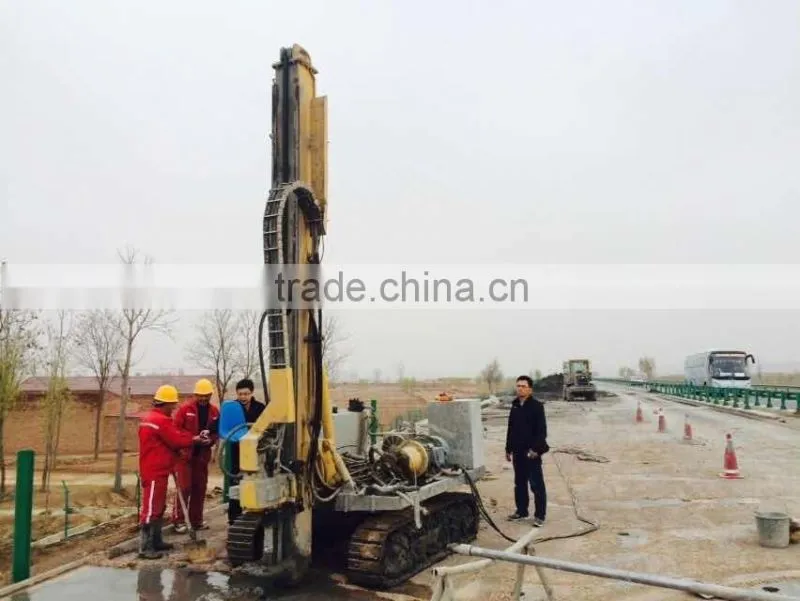

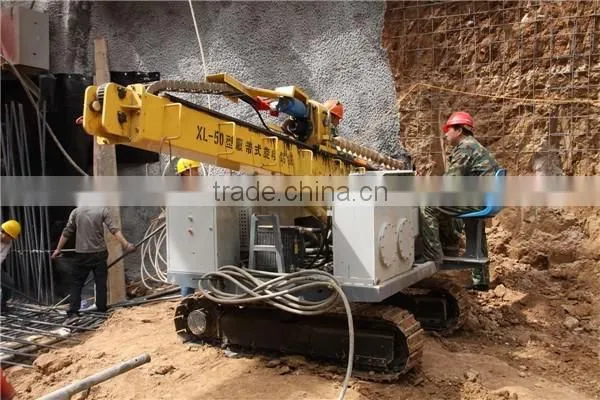

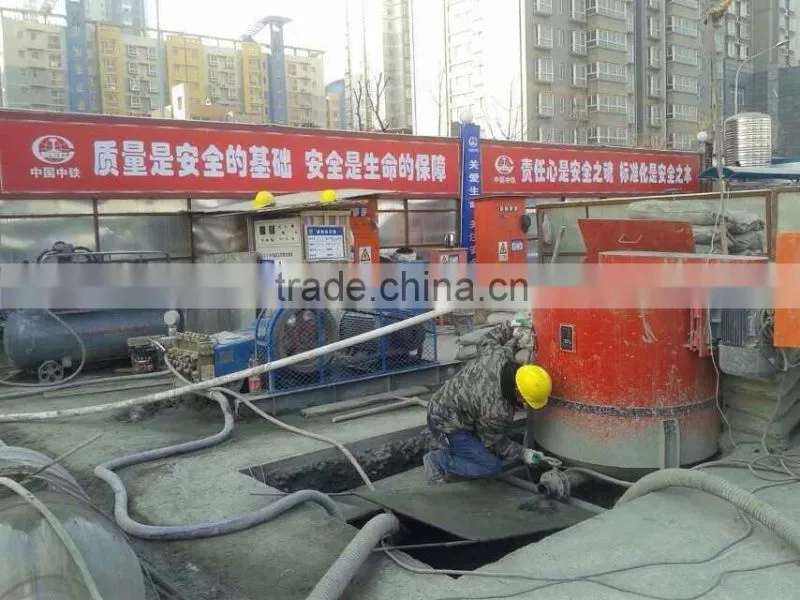

XL-50 jet drilling equipment was working for high pressure rotary jet grouting in foundation ditch treating

 GM-3 double pipe high pressure jet drilling equipment for bridge pier reinforcement

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the drawing of the XL-3 full hydraulic crawler big torque jet drilling equipment

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic jet drilling equipment

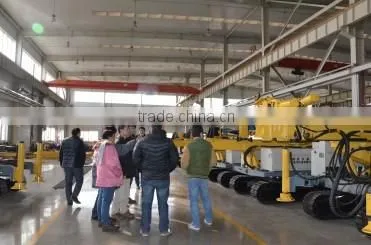

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Packing and Delivery

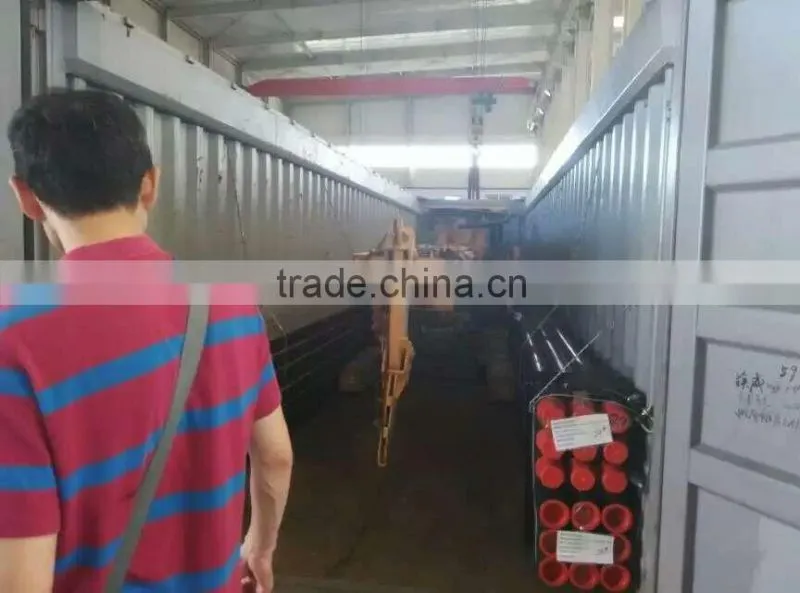

Put jet drilling equipment to the big track to port, then put the machine into 20'' container or 40'' container for shipping.

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

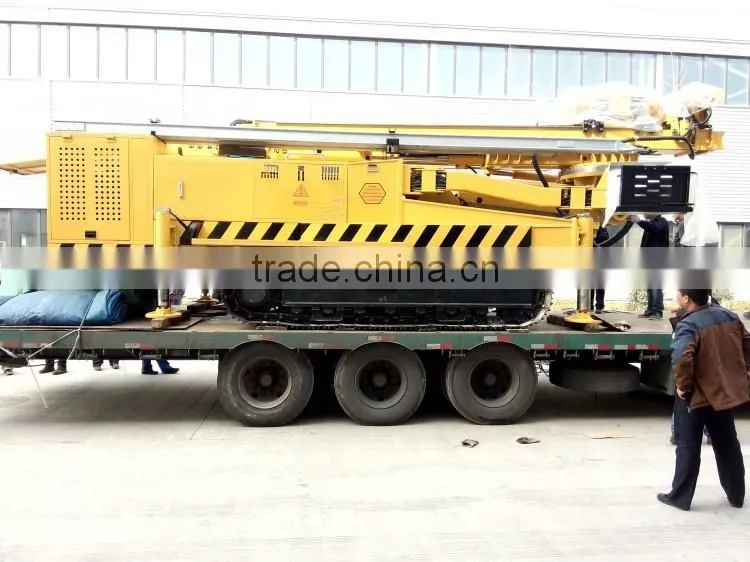

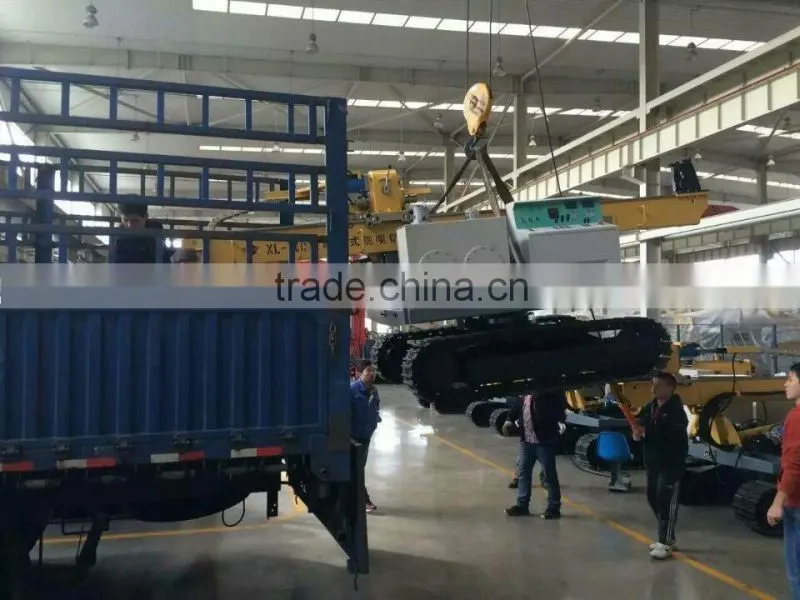

Put XL-50 jet drilling equipment to truck for sending to Shanghai port to Thailand

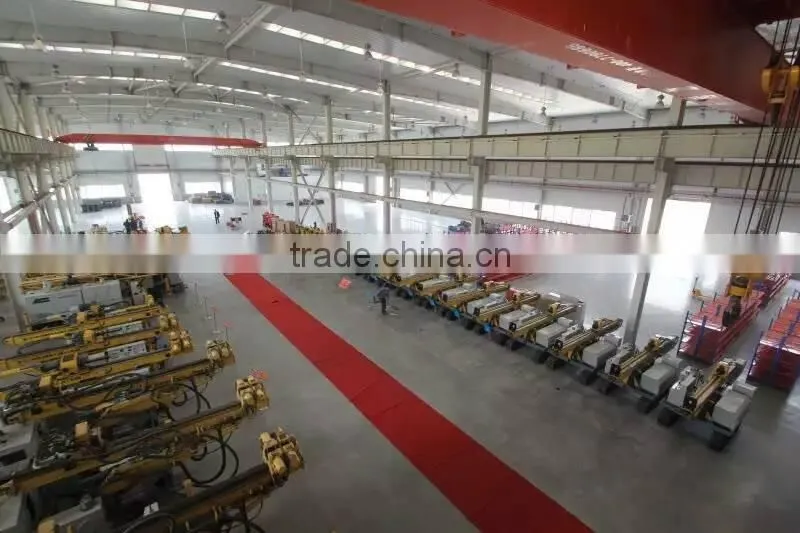

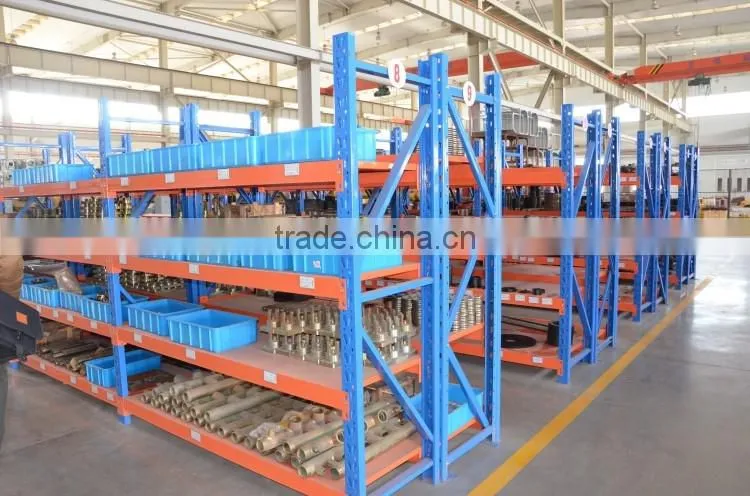

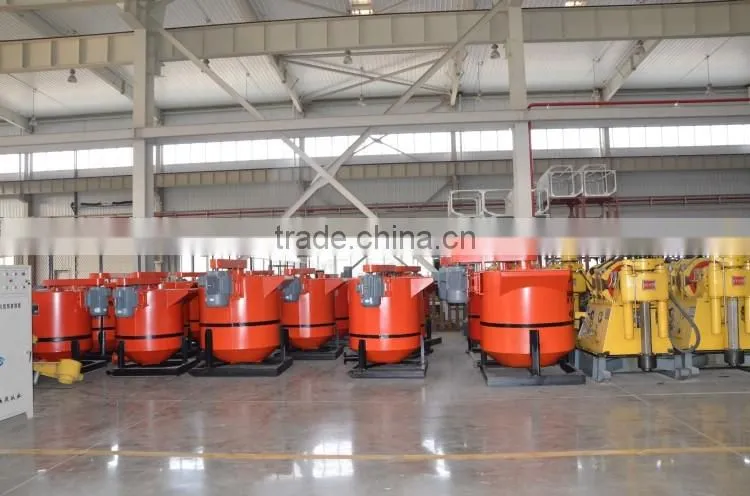

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".


So far, Zhengzhou Xitan Equipment Co., Ltd has been one of the biggest exporters of drilling rigs in China. Products are exported to more than 60 different countries and regions, such as Southeast Asia, South America, Africa, Eastern Europe and Russia, etc. It is well recognized by our customers for our high quality products and excellent after sales services. The strength of our company makes the brand “XITAN” famous and become increasingly influential on the international market.
