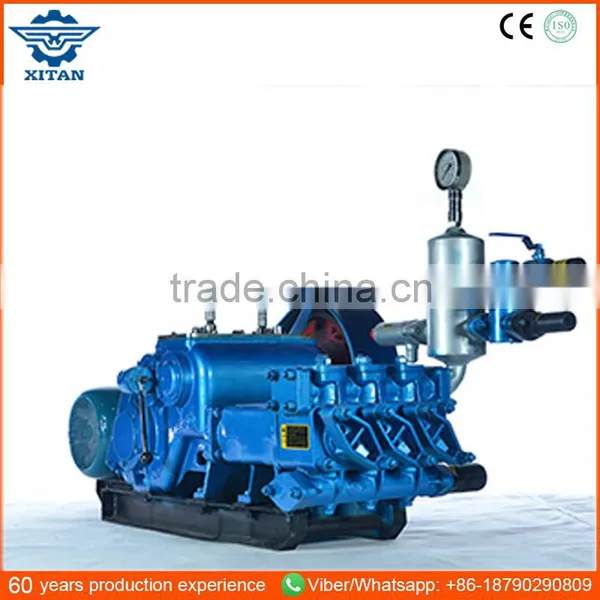

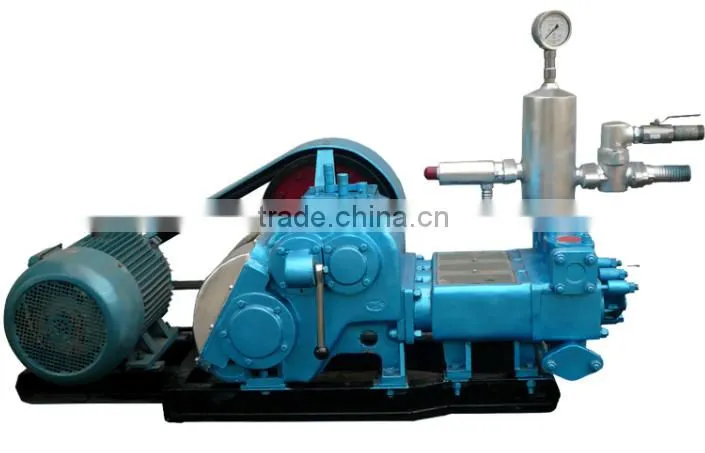

BW450 5 Coal Mine Mud Slurry Pumps for well drilling
BW450/5 mud pump is horizontal three cylinder reciprocating single-acting piston pump. Max flow is 450l/min and max pressure is 5Mpa.
BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.
Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.
Model |
BW450/5 mud pump |
Pattern |
Horizontal three cylinder reciprocating single-acting piston pump |
Cylinder dia(mm) |
95 |
Stroke(mm) |
100 |
Pump Speed (min) |
223 168 112 86 |
Flow(1/min) |
450 340 240 172 |
Pressure(Mpa) |
2 3 4 5 |
Volumetric efficiency (%) |
92 |
Total efficiency (%) |
83 |
Power(Kw) |
22 |
V-belt pulley shortcut |
410 (B Type *5 slot) |
Input speed (r/min) |
500 |
Suction height (m) |
2.5 |
Suction hose diameter (mm) |
76 (With 3 inch pressure hose) |
Discharge hose diameter (mm) |
51 (With 2 inches of two layers of steel high pressure hose) |
Size(mm) |
1000*995*650 |
Weight(kg) |
520 (without power) |
Main Features of Mud Slurry Pumps:
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.
For more information about Mud Slurry Pumps, please email us freely.
