Compact Size Colloidal Mixer Plunger Grout Plant for Sale

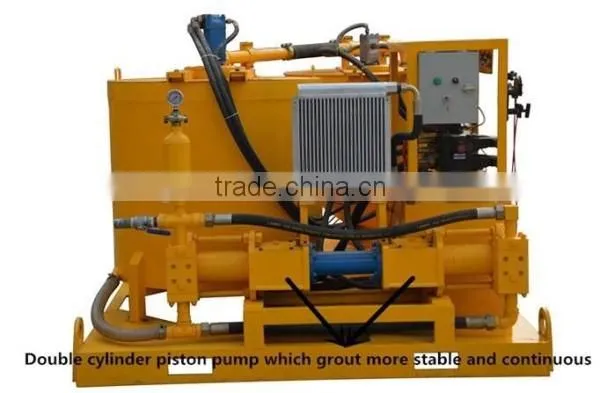

Compact Size Colloidal Mixer Plunger Grout Plant for Sale photo-1
US$ 7,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
xitan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port compact grout plant for sale
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name xitan
Model Number GGP300/350/85PL-E
After-sales Service Provided Engineers available to service machinery overseas
Product Description

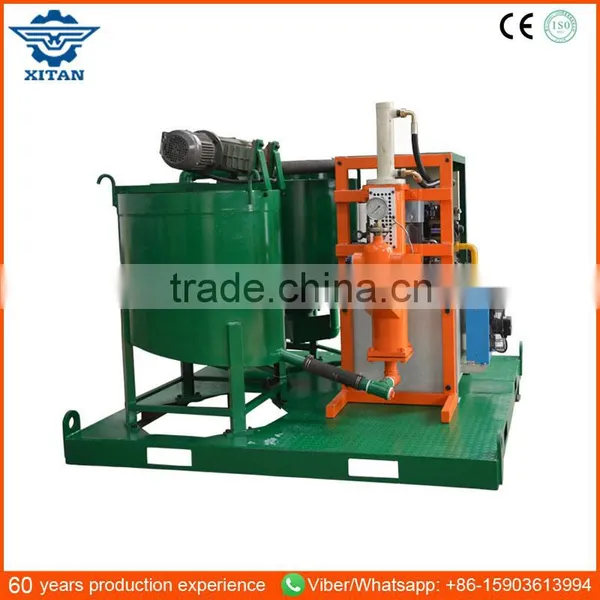

Compact Size Colloidal mixer Plunger Grout Plant for Sale

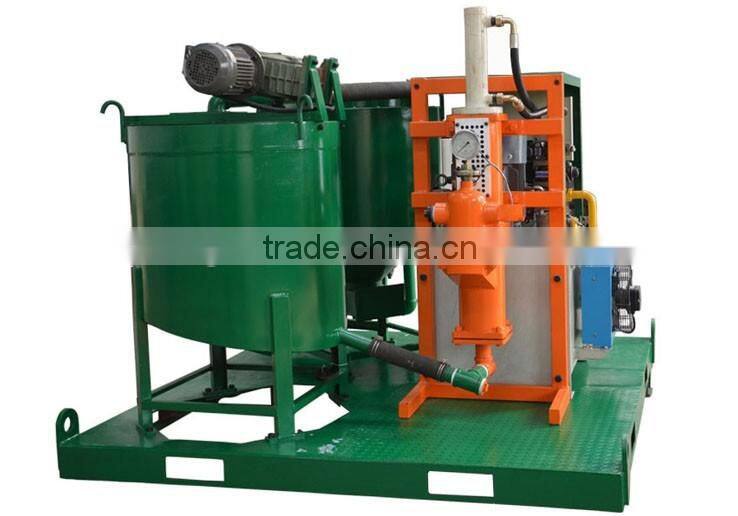

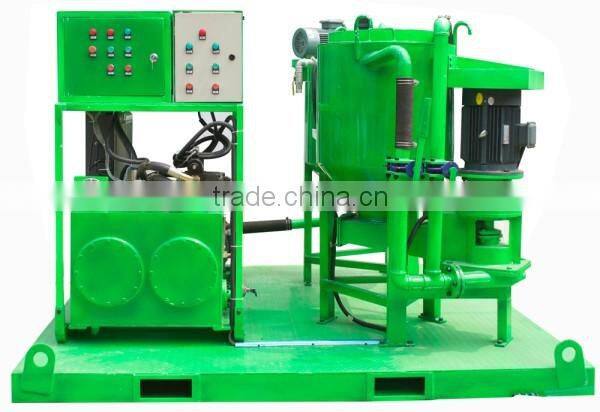

The GGP300/350/85PL-E colloidal mixer grout plant is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives in dam, tunnel, ground strengthening etc. grouting projects.
Specification
Item
GGP300/350/85PL-E colloidal mixer grout plant
Grout mixer
Capacity or Volume
300L
Acceptable W/C ratio
>0.45:1
Mixing time
3min
Mixing speed
1500rpm
Power
9kw
Grout agitator
Capacity or volume
350L
Rated rev.
36rpm
Power
1.5kw
Grout Pump
Pressure and flow
24 Bar(low pressure) 85L/min
50Bar (high pressure)  55L/min
Power
11Kw
GGP300/350/85PL-E electric grout plant
Gross weight
1250kg
Overall dimension
2100x2030x1700mm
Main Feature
 GGP300/350/85PL-E colloidal mixer grout plant

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;

2. Have low pressure and high pressure, stepless speed regulation;

3. Yuken relief valves and directional valves for hydraulic system of grout pump;

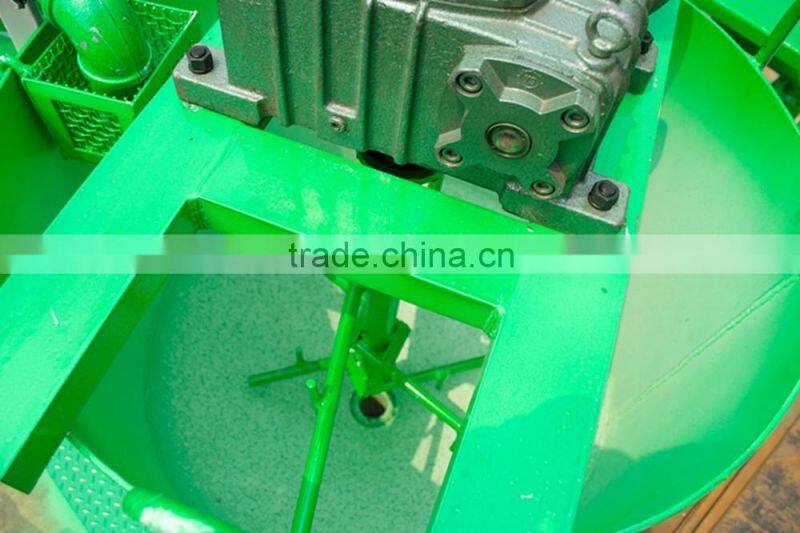

4. Butterfly valve of mixer and agitator;

GGP300/350/85PL-E colloidal mixer grout plant

5. Operation and maintenance are simple;

6. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.


7. With CE ISO certification.

Application

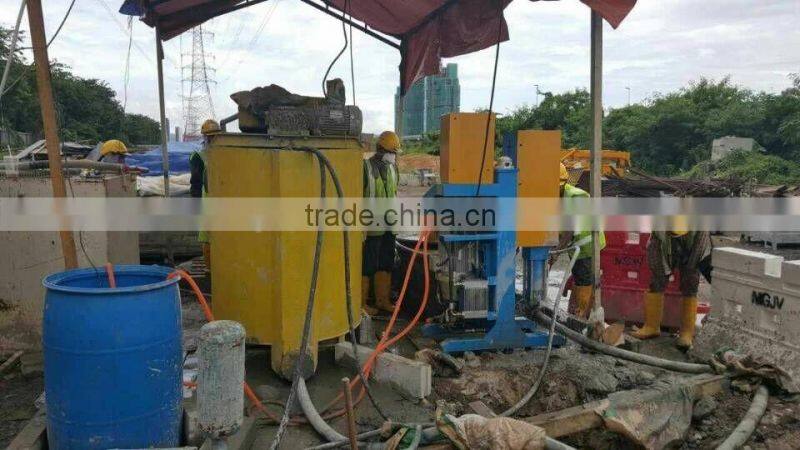

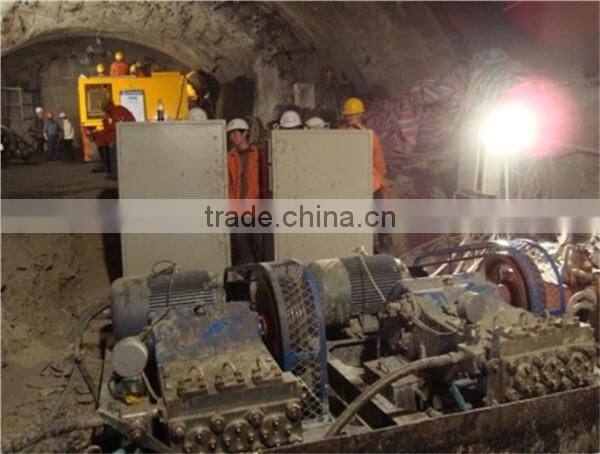

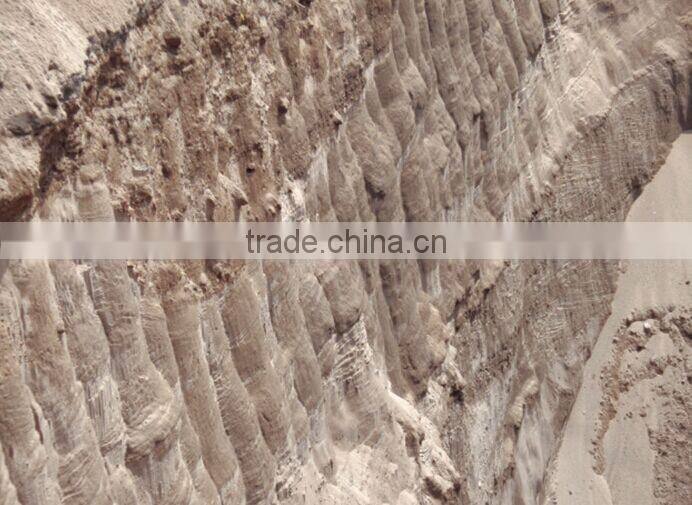

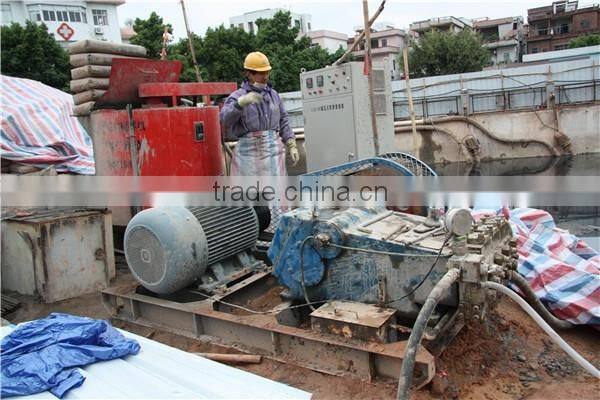

ZJB/BP-90 high pressure jet grouting drilling pump were grouting  at Potala palace

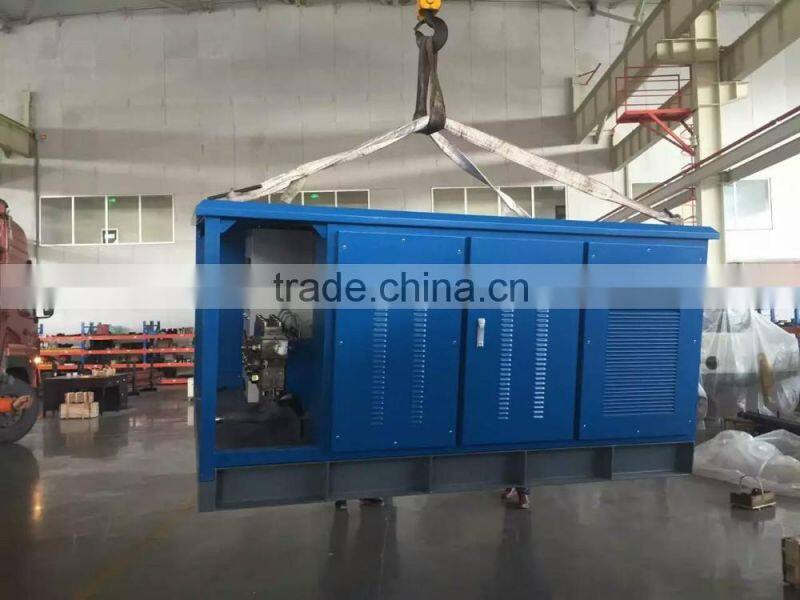

Packing and Delivery

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

Put high quality container type ZJB/BP -55 hot sale rotary jet grouting pump on truck to customer

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the high quality ZJB/BP -55 hot sale rotary jet grouting pump For sale

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic rotary grouting drilling rig

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".
