70Mpa Electric Cement Grouting Injection Pump Supplier's Choice

70Mpa Electric Cement Grouting Injection Pump Supplier's Choice photo-1
US$ 7,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
xitan
Model Number:
ZJB/BP-132
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name xitan
Model Number ZJB/BP-132
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Electric Cement Grout Injection Pump

ZJB/BP series electric cement grout injection pumps are applied on ground treatment and stabilization of railway, highway, bridge, dam , industrial and civil buildings ect. projects, also used in geological disaster control.
Specification
Item
ZJB/BP-55
ZJB/BP-55A
ZJB/BP-90
ZJB/BP-90A
ZJB/BP-132
ZJB/BP-132A
plunger dia
45mm
55mm
45mm
55mm
60mm
65mm
plunger stroke
120mm
120mm
100mm
flow
0-114L/min
0-160L/min
0-114L/min
0-160L/min
0-150L/min
0-170L/min
working pressure
30MPa
20MPa
50Mpa
30MPa
70MPa
40MPa
Power
50kw
90kw
132kw
Weight
1450kg
2200kg
2900kg
dimension(LxWxH)
2348x1056x826mm
2490x1196x915mm
2673x1546x1100mm
Main Feature
ZJB/BP series electric cement grout injection pumps

 1.  Advanced AC variable-frequency technique, stepless speed regulation, steady to start and run, no surge for power network;

2. Flow rate and pressure could be controlled automatic, perfect protection, safety and save energy and save cost (don’t do idle work, the power is working power).




3. With simple structure, easy to operate, high efficiency;

4. With new type pump parts, easy and speedy for disassemble and exchange, low maintenance costs.

Application

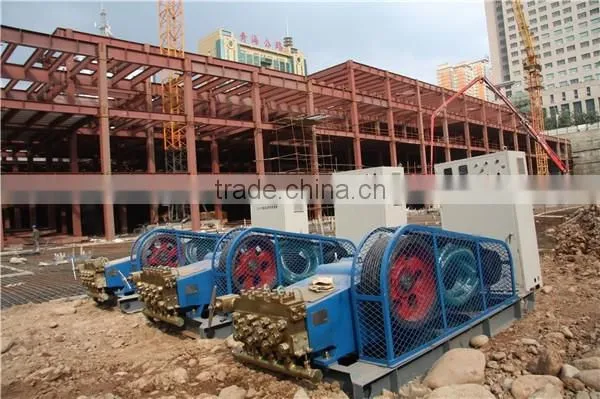

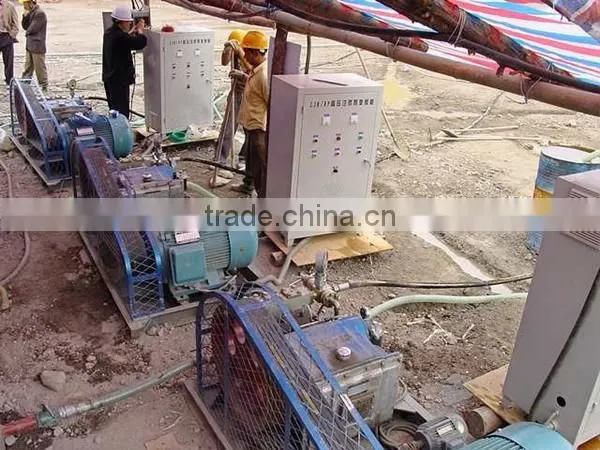

ZJB/BP-90 electric cement grout injection pumps were grouting  at Potala palace

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the drawing of the XL-3 full hydraulic crawler big torque jet grouting drilling rig

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic rotary grouting drilling rig

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Packing and Delivery

Put jet grouting drilling rig to the big track to port, then put the machine into 20'' container or 40'' container for shipping.

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

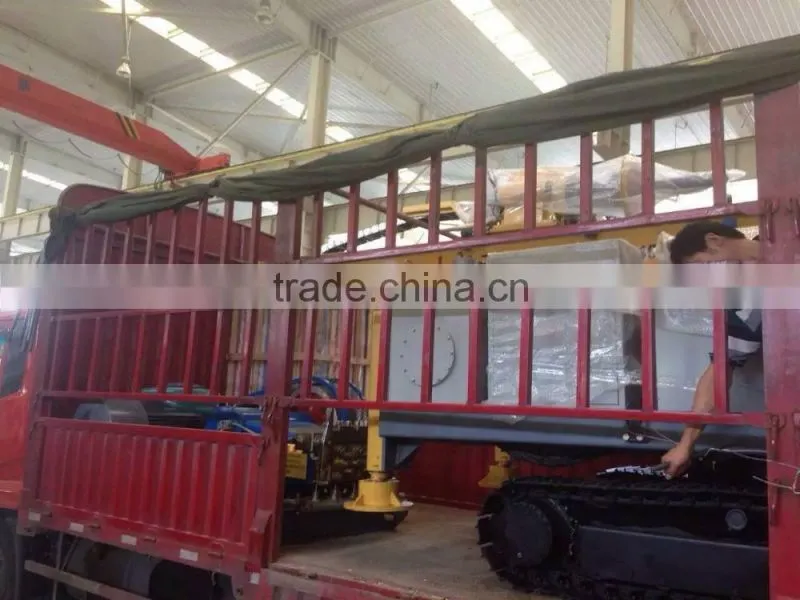

Put XL-50 rotary high pressure jet grouting drilling rig and electric cement grout injection pumps to truck

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".
