Flow Pressure Adjustable Dam Tunnel Grouting Pump

Flow Pressure Adjustable Dam Tunnel Grouting Pump photo-1
US$ 10,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
xitan
Model Number:
GDH75/100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name xitan
Model Number GDH75/100
After-sales Service Provided Engineers available to service machinery overseas
Product Description

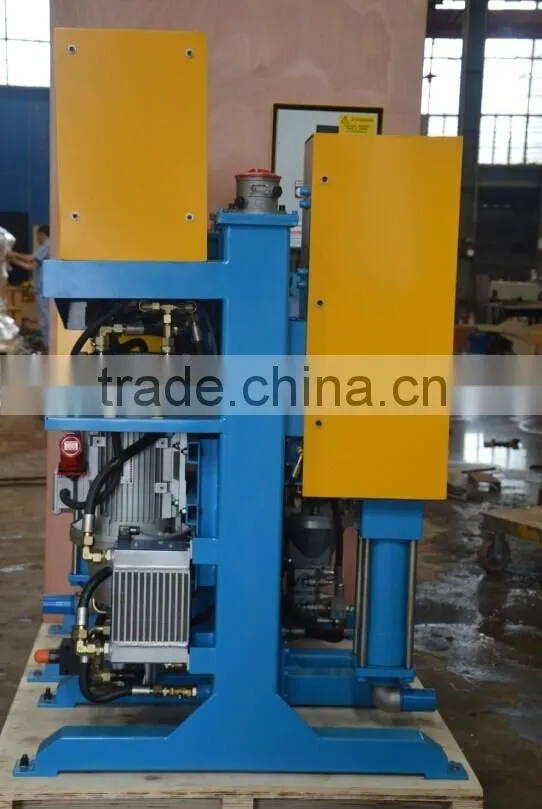

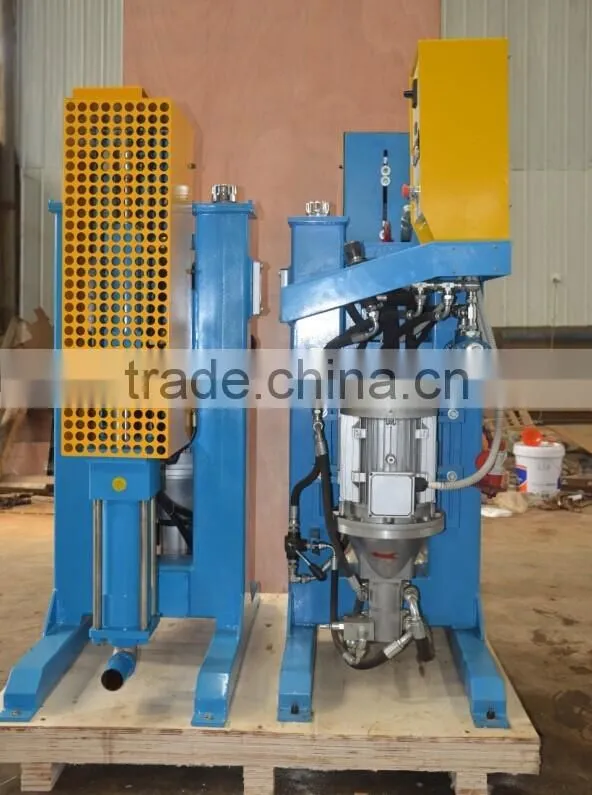

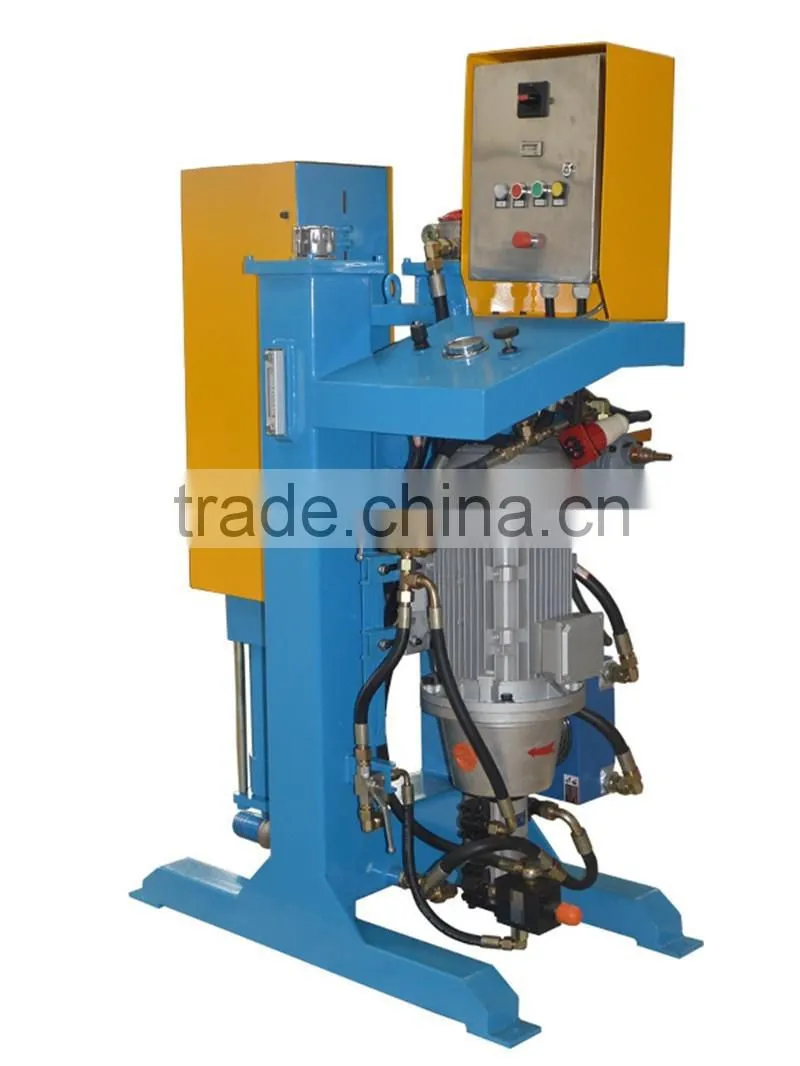

Flow Pressure adjustable dam tunnel grouting pump

The GDH 75/100 high flow pressure adjustable dam tunnel grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc. grouting methods in building dam tunnel etc. projects.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Specification
Item
GDH75/100 vertical grout pump
Piston diameter
100mm
Piston stroke
150mm
Low pressure
adjustable pressure
0-50Bar/725psi
adjustable flow
0-75L/min
High pressure
adjustable pressure
0-100Bar/1450psi
adjustable flow
0-40L/min
Discharge pipe size
M27x2
Inlet pipe size
G2''
Power unit
7.5kw
Chassis
Skid
Weight
390kgs
Overall dimension
1405x550x1650mm
Note: Chassis Skid or Tires
We also could according to your demands to customize
Main Feature
GDH 75/100 flow pressure adjustable grouting pump

 1.  With digital display counter; it can display at any time, and can accumulate work times;

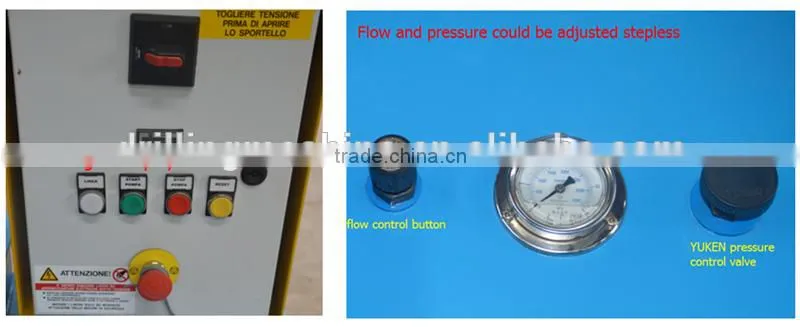

2.  Flow and pressure can be adjusted step-less;


3. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;

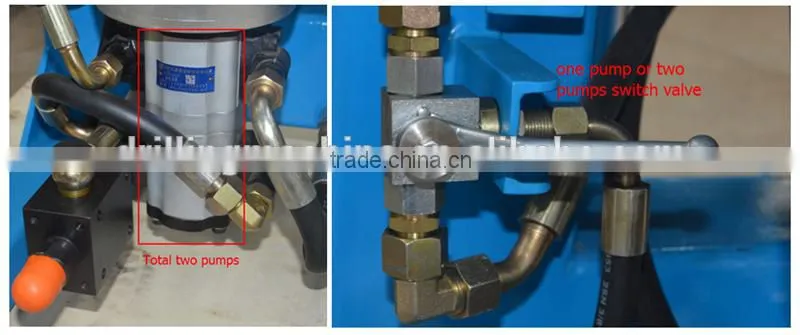

4. In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;;

5. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.

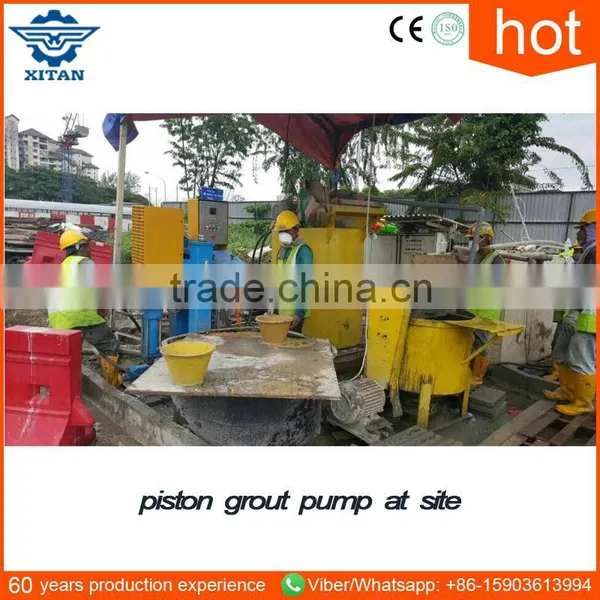

Application

ZJB/BP-90 high pressure jet grouting drilling pump were grouting  at Potala palace

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the high quality ZJB/BP -55 hot sale rotary jet grouting pump For sale

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic rotary grouting drilling rig

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Packing and Delivery

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

Put high quality container type ZJB/BP -55 hot sale rotary jet grouting pump on truck to customer

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".
