XY-44B Competitive Price Core Drilling Rig Supplier's Choice

XY-44B Competitive Price Core Drilling Rig Supplier's Choice thumbnail-1
XY-44B Competitive Price Core Drilling Rig Supplier's Choice photo-1
US$ 16,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, core drilling rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Xitan Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao Guangzhou etc. China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Core Drilling Rig, core drilling rig
Power Type Electric
Place of Origin Henan, China
Brand Name Xitan
Model Number XY-44B
Usage Other, for core drilling, engineering geological drilling
Voltage 380V
Power(W) 37kw
Dimension(L*W*H) 3200*1100*1950mm
Weight 2200kgs, 2200kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

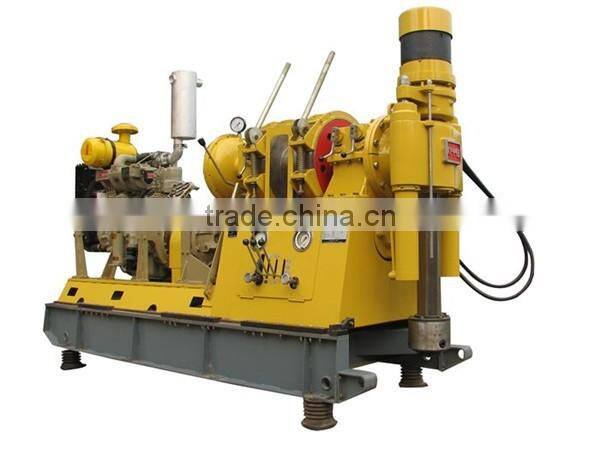

XY-44B Core Drilling Rig

XY-44B core drill is mainly suitable for core drilling with diamond bit or hard metal bit. It also can be used for engineering geological drilling, hydro-geological drilling, shallow oil and gas drilling, geothermal drilling and foundation engineering drilling, etc. This drilling rig has merits as following: ripe technique, reasonable structure, light weight, large ability, powerful, wide uses, etc.
Specification
Item
Specification
Drilling depth
1400m, 1300m, 950m, 800m
Rod Dia.(mm)
42mm, 50mm, 60mm, 89mm

Spindle speed
foreward (low)
82r/min, 151r/min, 243r/min, 320r/min
foreward (high)
265r/min, 466r/min, 745r/min, 983r/min
reverse
46r/min, 143r/min
Drilling angle range
0-3600
Inner diameter of spindle
93mm
Spindle storke
600mm
Max. torque of spindle
4200N.m
Max. lifting force of spindle
120KN
Max. thrust force of spindle
90KN
Rated pressure of hydraulic system
8MPa
Max. hoisting force(single rope)
45KN
Frame shifting distance
460mm

Power
Electric motor
37kw

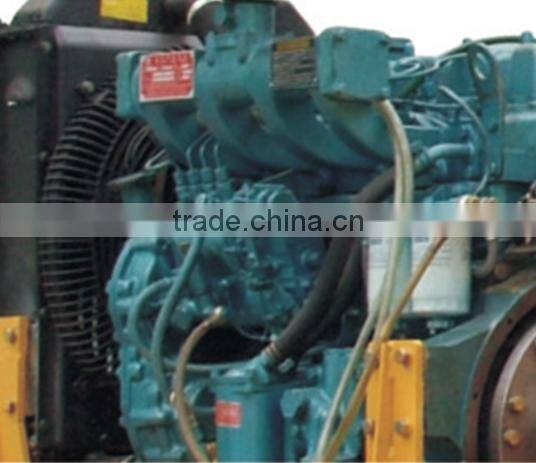

diesel engine
52hp
Overall dimension (L*W*H)
3200mmx1100x1950mm
Weight
2200kg
Main Feature
XY-44B core drilling rig

1. optional standard auto gearbox clutches, reliable performance, flexible operation, low cost accessories;

2. has more speed series (8 level) and reasonable speed range, low-speed torque (maximum of 4200N.m)
3. double cylinder hydraulic feed, stroke length, vertical through-hole diameter(93mm), especially for large diameter drill pipe and coring
4. hydraulic chuck clamping force, the use of bi- fuel and equipped with hydraulic lock, holding steady


5. equipped with a water brake system, deep drilling, drill safe and stable
6. with gear pump oil, power consumption, stable operation. System fitted with hand pumps, when the power machine does not work, can still play out the hole with a hand pump drilling
7.The shift from long (up to 460mm), fixed solid, high-speed drilling and good stability.
8. using seismic instruments, instrument long life, the situation is conducive to grasp the hole. Manipulation of flexible and reliable

Customer Visit

Thailand customer was discussing the design of GL6000 multi-function engineering grilling rig with our technician.

We are discussing the drawing of the XL-3 full hydraulic crawler big torque jet grouting drilling rig

Malaysia customer was trying to operate the GL4000 high pressure full hydraulic rotary grouting drilling rig

Philippines' customers come to visiting our factory for buy GM-3 anchoring drilling rig

Application

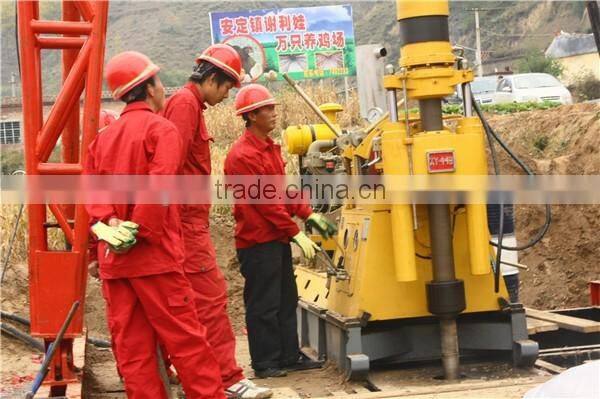

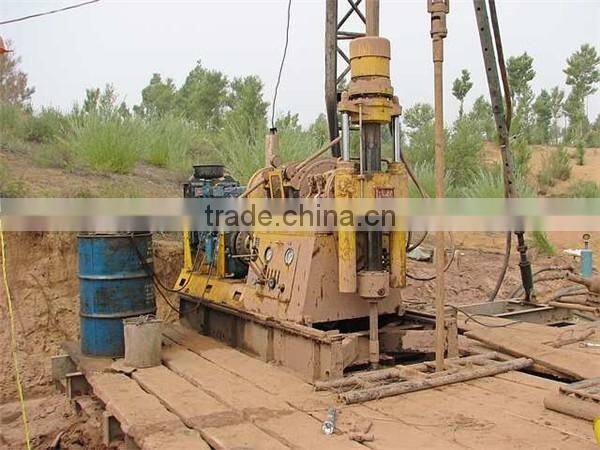

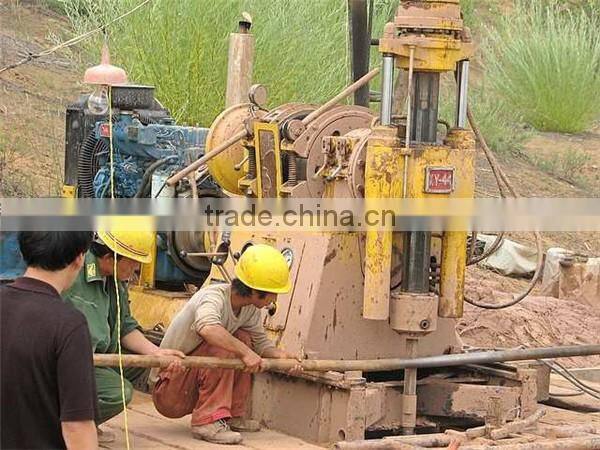

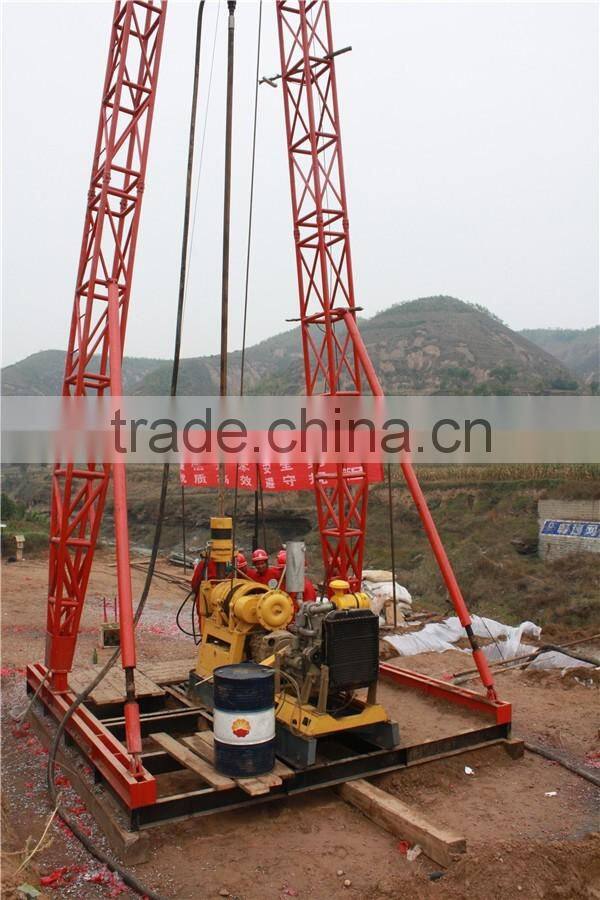

XY-44B core drilling rig ws working in Philippines

Packing and Delivery

Put jet grouting drilling rig to the big track to port, then put the machine into 20'' container or 40'' container for shipping.

Packaing the GM-3 anchoring drilling rig and tools to container for sending to Philippines customer

Put XL-50 rotary high pressure jet grouting drilling rig to truck for sending to Shanghai port to Thailand

Company View

Zhengzhou Xitan Equipment Co., Ltd, which has experienced engineers, professional R&D team and special after-sale service team, adheres to the faith that providing the best quality drilling equipment and best service to our customers.


At present, our team devote to pursuit high standard and high specification products. There are more than 20 species drilling equipment, such as rotary jet grouting drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig and high pressure jet grouting mixer and pump, etc. These drilling rigs have been used widely in geological exploration, tunnel engineering, mining industry, water well and geothermal well, etc. All of our products have passed the ISO9001:2001 quality management system certification and won the "national inspection-free products".
