Galvanized Steel Wire for electrical cable wire
1. Material: Q195,Q235,45#,60#,65#,70#,72B,80#,82B,65Mn
2. Surface Coating: Galvanized
3. Characteristic: High tensile strength,small tolerance
Shiny surface, good corrosion prevention

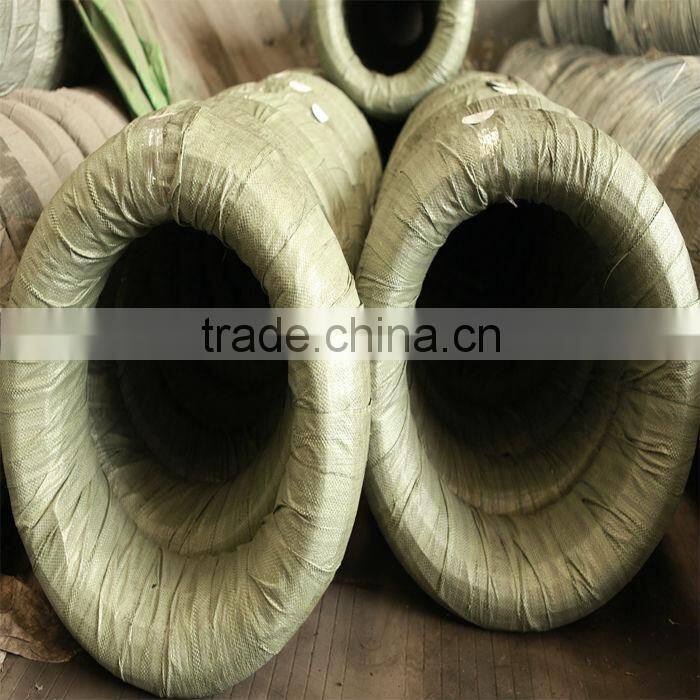

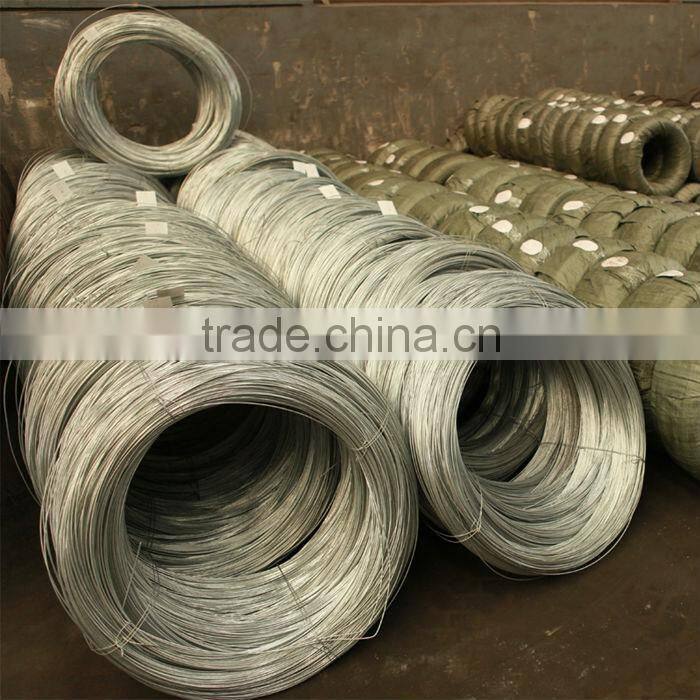

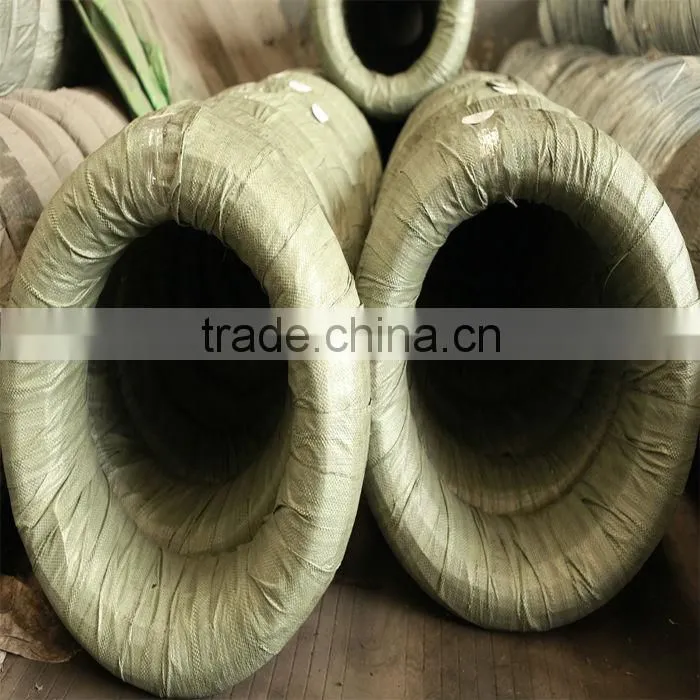

4. Packing type:Spool or Coil
5. Application: Being used for stranded conductors in overhead power circuitry
6. Remarks during use and handling:
a. During transportation, handle softly and carefully, avoid bumping and damaging the steel wires. Moisture and rain prohibited. Steel wires must be stored in dry and well ventilated indoors
b. Pay attention to the direction of steel wires when paying-off. Be sure the spool or coil is rotating freely as to achieve identical tension of all the steel wires
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface
Technical parameters
Wire dia: 1.24-5.5mm; Tensile Strength:1290~1340Mpa
| Nominal Diameter | Tensile Strength | Stress at 1% Elongation | Twist | Elongation | Standard |
| mm | Mpa | Mpa | Times/360°C | Lo=250mm | As per GB,EN,IEC,JIS,ASTM standard,as well as customer's request |
| 1.24-2.25 | ≥1340 | ≥1170 | ≥18 | ≥3% | |
| 2.25-2.75 | ≥1310 | ≥1140 | ≥16 | ≥3% | |
| 2.75-3.00 | ≥1310 | ≥1140 | ≥16 | ≥3.5% | |
| 3.00-3.50 | ≥1290 | ≥1100 | ≥14 | ≥3.5% | |
| 3.50-4.25 | ≥1290 | ≥1100 | ≥12 | ≥4% | |
| 4.25-4.75 | ≥1290 | ≥1100 | ≥12 | ≥4% | |
| 4.75-5.50 | ≥1290 | ≥1100 | ≥12 | ≥4% |
NOTE:Providing engineer design as per cstomer's request.
