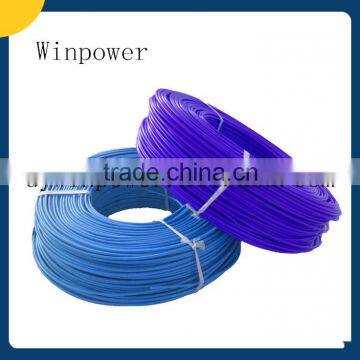

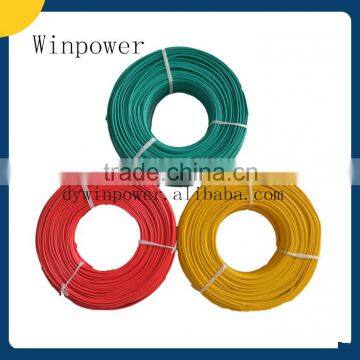

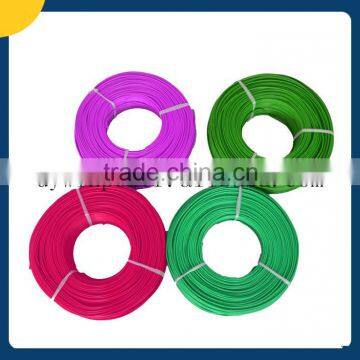

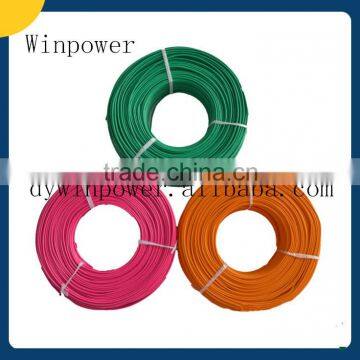

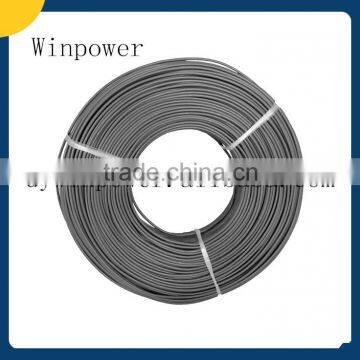

ul3385 12 AWG irradiated crosslinked wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.
SPECIFICATION: 12 AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
F LAME TEST: CSA FT1 flame test
RATED TEMPERATURE: 105 Deg Centigrade
RATED VOLTAGE: 300v
CONDUCTOR: 65/0.254 mm stranded tinned copper
INSULATION THICKNESS: 0.45mm
PE OUTER DIAMETER: 3.20 mm
MAX. CONDUCTOR RESISTANCE: 5.53 Ω/km
DIELECTRIC STRENGTH: 2000v
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
7/0.10 |
0.30 |
0.38 |
1.05 |
386 |
2,000 |
28 |
7/0.127 |
0.38 |
0.38 |
1.20 |
242 |
2,000 |
26 |
7/0.16 |
0.48 |
0.38 |
1.30 |
152 |
2,000 |
24 |
11/0.16 |
0.61 |
0.38 |
1.40 |
95.30 |
2,000 |
22 |
17/0.16 |
0.76 |
0.38 |
1.60 |
56.10 |
2,000 |
20 |
26/0.16 |
0.94 |
0.38 |
1.80 |
36.30 |
2,000 |
18 |
41/0.16 |
1.18 |
0.38 |
2.10 |
22.20 |
2,000 |
16 |
26/0.254 |
1.50 |
0.45 |
2.40 |
16.60 |
2,000 |
14 |
41/0.254 |
1.88 |
0.45 |
2.70 |
9.50 |
2,000 |
12 |
65/0.254 |
2.36 |
0.45 |
3.20 |
5.53 |
2,000 |
10 |
105/0.254 |
3.10 |
0.45 |
3.80 |
3.95 |
2,000 |
Packing: Coils: 1000ft per roll ,with PE film as outer package
Carton A: 51cm*25cm*27cm Carton B: 33cm*33cm*33cm
Delivery: 3-15 days after receiving the down payment
Terms of payment : T/T (30% down payment and pay off after receiving the duplicate of B/L)
L/C at sight
1. Sample Available.
2. OEM are offered.
3. Customer wire can be manufactured.
4. Convenient transportation path to DANYANG.
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang Station about 20 minutes.
