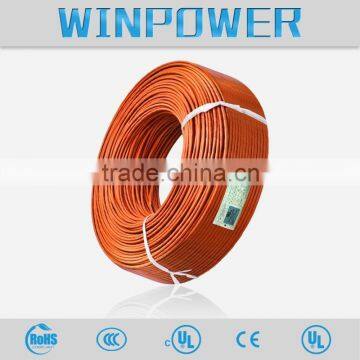

UL3386 AWM 26 XLPE insulated flexible electrical wire

FOB Price

USD $0.001 - $99 / Kilometer

6 Kilometers(Min.Order)

Supply Ability 200 Kilometer / Kilometers per Month
Port Port of Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Winpower
Model Number	UL 3386 26 AWG	Type	Insulated
Application	Other, electrical equipment wire	Conductor Material	Copper
Conductor Type	Stranded	Insulation Material	PE

Product Description

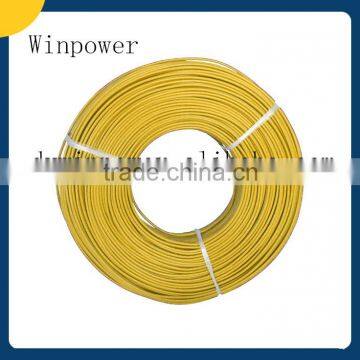

UL3386 AWM 26 XLPE insulated flexible electrical wire

All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.

SPECIFICATION: 26 AWG

REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2

F LAME TEST: CSA FT2 flame test

RATED TEMPERATURE: 150 Deg Centigrade

RATED VOLTAGE: 600v

CONDUCTOR: 7/0.16 mm stranded tinned copper

INSULATION THICKNESS: 0.76mm

PE OUTER DIAMETER:2.00 mm

MAX. CONDUCTOR RESISTANCE: 239 Ω/km

DIELECTRIC STRENGTH: 2000v

CONDUCTOR			INSULATION		MAX.COND. RESISTANCE (Ω/km,20°C,DC)	DIELECTRIC STRENGTH (VAC,1min)
AWG	CONSTRUCTION (No./mm)	DIA. (mm)	THICKNESS (mm)	O.D. (mm)	MAX.COND. RESISTANCE (Ω/km,20°C,DC)	DIELECTRIC STRENGTH (VAC,1min)
30	7/0.10	0.30	0.76	1.90	381	2,000
28	7/0.127	0.38	0.76	2.00	239	2,000
26	7/0.16	0.48	0.76	2.10	150	2,000
24	11/0.16	0.61	0.76	2.20	94.2	2,000
22	17/0.16	0.76	0.76	2.35	59.4	2,000
20	26/0.16	0.94	0.76	2.55	36.7	2,000
18	41/0.16	1.18	0.76	2.80	23.2	2,000
16	26/0.254	1.50	0.76	3.15	14.6	2,000
14	41/0.254	1.88	0.76	3.55	8.96	2,000
12	65/0.254	2.36	0.76	4.05	5.64	2,000
10	105/0.254	3.10	0.76	4.90	3.546	2,000
8	168/0.254	4.25	0.76	6.60	2.23	2000
6	266/0.254	5.35	0.76	8.50	1.403	2000
4	420/0.254	6.70	1.15	9.80	0.882	2000
2	665/0.254	8.45	1.53	11.60	0.5548	2000
1	836/0.254	9.50	2.04	13.70	0.4398	2000
1/0	1045/0.254	10.60	2.04	14.80	0.3487	2000
2/0	1330/0.254	12.00	2.04	16.20	0.2766	2000
3/0	1330/0.254	13.45	2.04	17.60	0.2194	2000
4/0	2109/0.254	14.85	2.04	19.00	0.1722	2000
