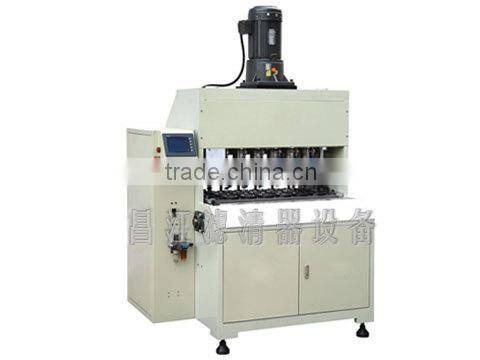

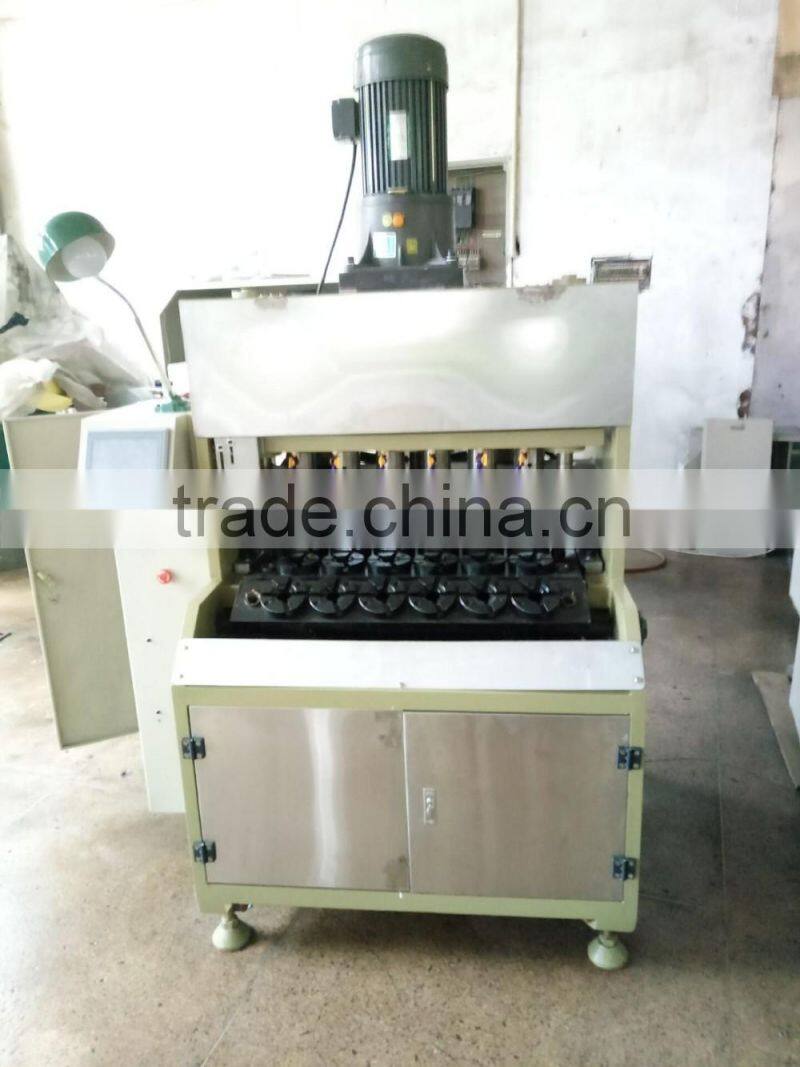

Help CenterFull-auto Six-works Tapping Machine CJGS-6
Related Products
-
Full - Auto Turntable Bottom Plate Welding Machine , 10 - 40pcs / Min of Oil FilterUS$ 500 - 24,000MOQ: 1 Set -
Full-auto Steel Clipping Machine for Car Air Filter MachineryUS$ 500 - 24,000MOQ: 1 Set
-
High Efficiency Spiral Tube Making Machine Rotary Pleating Machine CustomizedUS$ 500 - 24,000MOQ: 1 Set
-
25 Working Stations Oil Filter Making Machine Filter Steel Clipping 18pcs / MinUS$ 500 - 24,000MOQ: 1 Set
-
Full-auto Knife Paper Pleating Production Line CJCZ55-600NUS$ 500 - 24,000MOQ: 1 Set
1, capacity: 28 / min
2, tapping range: Metric: M16 ~ M38, English: 3 / 4 "~ 1"
3, let a few workpieces / times: diameter: ≤ M24 6 cells / second;
M26 ~ M30 6 cells / time
≥ M30, 1 "5 pcs / times
4, the workpiece range: 60mm ~ 130mm (workpiece odd and even hole-hole Universal)
5, chuck positioning aperture: 15mm
6, Motor Power: 5.5kw
7, cooling pump power: 120W
8, the working pressure: 0.6MPa
9, power supply voltage: 380V/50Hz
10, Machine Weight: 1300kg
11, Dimension: 1000 × 1300 × 2100mm (L × W × H)
Second, the main characteristics of
1, the fuselage of the integration process, thereby ensuring that the workpiece and the tap of verticality.
2, the site set up tapping nozzle cooling system, so as to enhance the smoothness of the workpiece and the tap of durability.
3, this machine has the automatic function, the spindle is transferred to tapping into, the end of the rapid return, reverse, and the chain conveyor, positioning, and so on for the automatic stroke control.
4, this machine can also be a one-time attack in six parts, thus greatly improving the efficiency.
5, this machine is PLC control, flexible and reliable, low failure rate, easy adjustment of man-machine interface, easy to operate.
Third, the scope of application
Machine used mainly for automotive, diesel filter thread of the tapping plate.
