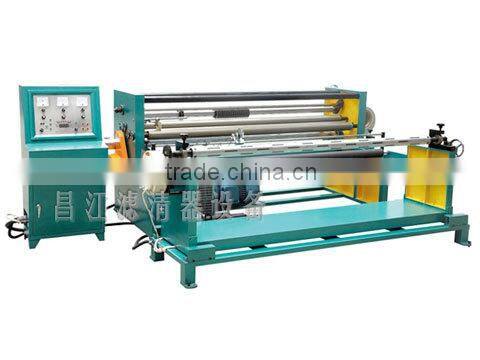

Help CenterFull-auto Photoelectric Paper Trimming Machine
Related Products
-
Air Filter Making Machine 20 - 300mm Composited Material Pleating Machine ,US$ 500 - 24,000MOQ: 1 Set -
Separated Glass Fiber Pleating MachineUS$ 500 - 24,000MOQ: 1 Set
-
Custom HEPA Air Filter Paper Pleating Machine With 6 Roller for Glass FiberUS$ 500 - 24,000MOQ: 1 Set
-
1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor ControlledUS$ 500 - 24,000MOQ: 1 Set
-
Custom Filter Making Machine / Pleater Machine With Hot Melt GulingUS$ 500 - 24,000MOQ: 1 Set
1,Specification
1,Available cutting width:≤1200mm
2,coil delivery diameter:≤Φ1100mm(coil lD:Φ76mm)
3,coil recede diameter :≤Φ750mm(coil lD:Φ76mm)
4,coil revert speed:≤90m/min
5. Available cut width range: 40mm-1200mm
6. Trim torralance: ±0.5mm
7. Motor power: 7.5KW
8. Working air pressure: 0.6Mpa
9. Power supply: 380V/50HZ
10. M/C weight: 1300kg
11. M/C dimension: 2200×2250×1250mm(L×W×H)
2,Features
1.Adjust the round blades distance to meet the different cutting specifications.
2.The cutting speed is steep less regulated by motor.
3.The coiling speed synchronizes with cutting speed through the magnetic powder clutch, meanwhile maintaining the appropriate tensile force.
4.Adjusting the magnetic brakes on the paper delivery coil to keep the certain tightness between papers.
5.Both the paper delivery coil and the paper recede coil use the air bulking axis, to avoid the paper bobbin skidding and easy operation.
6.The waste trimming paper can be blown out through the action of the air-blower.
7.This machine has the automatically meter counting and reverting system.
8.This machine equips the photoelectric trimming device to make the paper cut much more precisely.
3,Applications
This machine is specially designed and used for cutting the filter paper and the non-woven of the panel air filter, cabin filter and fuel filter.
The cutting machine can be made according to customers’ specifications.
