Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width

Name: Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width
Brand: CHANGJIANG
SKU: 117480981
Availability: InStock

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width thumbnail-1

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width thumbnail-2

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width thumbnail-3

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width thumbnail-4

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width thumbnail-5

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width photo-1

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width photo-2

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width photo-3

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width photo-4

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width photo-5

US$ 500 - 24,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

CHANGJIANG

Model Number:

CJCZ55-1050

Contact Supplier Request Quote Chat Now

Ruian Changjiang Filter Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO AND SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name CHANGJIANG

Model Number CJCZ55-1050

After-sales Service Provided Engineers available to service machinery overseas

for Wire Mesh , 1050mm Width

Product Details:

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJCZ55-1050-II

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment
Supply Ability:	Engineers available to service machinery overseas

Detailed Product Description

Hydraulic Filter Knife Pleating Machine for Wire Mesh , 1050mm Width

Quick Detail:

Type	Knife Pleating Machine
Applications	Pleating for hydraulic filter
Package	Standard Export Plywood cases
Certificate	CE ISO 9001
After-Sales service	Engineers available to service machinery overseas
Delivery Time	20 days after got Your down payment
Payment Term	30% T/T payment in advance, 70% T/T payment before shipment

Consists

Auto Paper De-coiler
Pre-slitting Conveyor
Marker
Automatic Counter
Filter Paper Pleating Machine( equip with pre-heater and monitor)

Specification

Model 55-1050-II Pre-slitter

Speed	0.5m/min-12m/min(adjustable)
Adjustable width	32-1050mm
Power supply	220V/50HZ
Motor power	0.75kw
Working air pressure	0.6Mpa
M/C weight	300KG
M/C sizes	1100×1300×1100mm

Marker

Max width for marker	1050mm
Adjustable marking distance	8-55mm
Power supply	380V/50HZ
Motor power	0.75kw
M/C weight	300KG
M/C size	1080×750×1100mm

Pleater

Max Width	1050mm
Adjustable pleating height	8-55mm
Pleating speed	0-200pleats/min (adjustable)
Power supply	380V/50HZ
Motor Power	0.75KW
Heater power	2kw
Heating Temp	Normal temperature-200℃
Working air pressure	0.6Mpa
M/C weight	500kg
M/C size	1670×1200×1240mm

Feature

The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system.
The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.

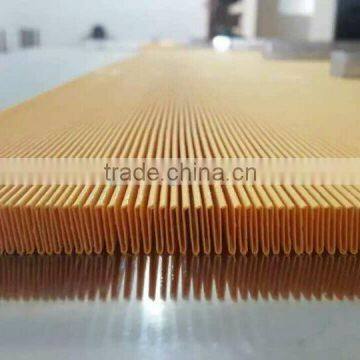

The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
After marking, the filter paper will be pleated and pre-heated.

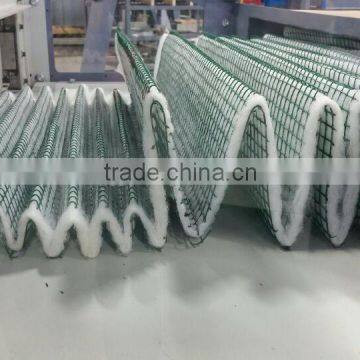

The machine is also suitable for folding the iron wire fabric and non-woven fabric of by hydraulic filter, even the multilayer folding.

Applications

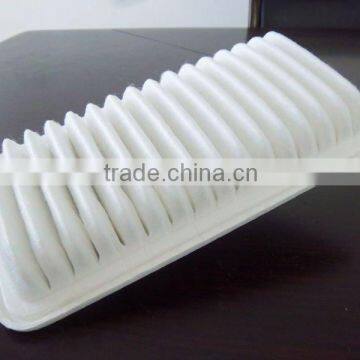

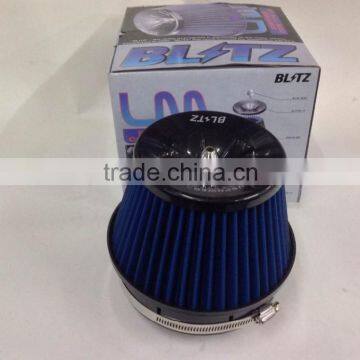

1.The production line is applied to auto Tri-filter industry, hydraulic pressure, purification and water treatment industries etc.

2.Furthermore, we can customize the paper-pleating production line of different specifications (machine width and pleat height, this pleating machine also can pleat “M” type).
