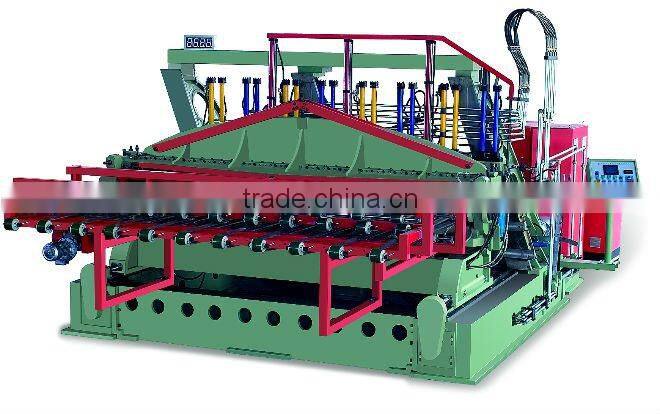

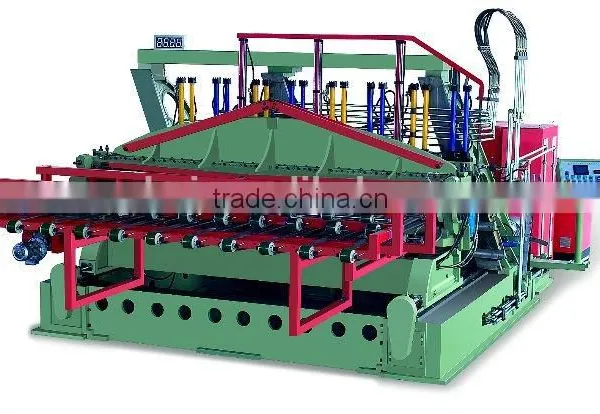

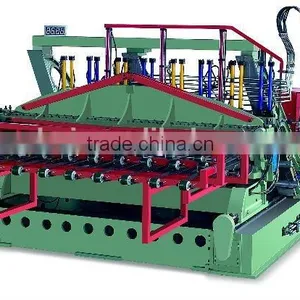

We supply High quality Woodworking Vertical Venner Slicing machine Model BB1342
| Model | BB1342 |
| max allowed wood size | 3900x760x760mm |
| size of the planer tool | 4200x200x19mm |
| slicing thickness | 0.2-3mm |
| slicing speed | max.80pcs/min |
| wood clamping method | hydraulic control |
| power source | 65.95Kw |
| main motor | 45kw(frequency motor) |
| motor of oil pump | 11kw |
| knife-holder quick back motor | 3.5Kw*2 |
| circulating heat water motor | 0.75kw |
| veneer transport motor | 2.2kw |
| size of body(LxWxH) | 7700x5800x4100mm |
| net weight | 40T |
1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
Video online: /v_show/id_XNTM4MDcxOTg4.html

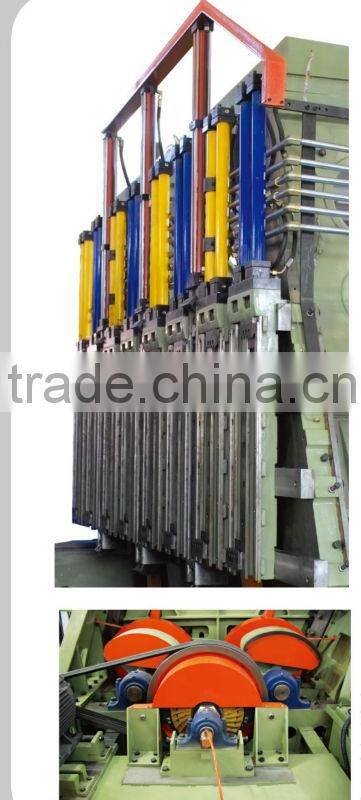

hydraulic blade holding system
hydraulic clamping system/ pneumatic brake system
feeding system/Lubricating center

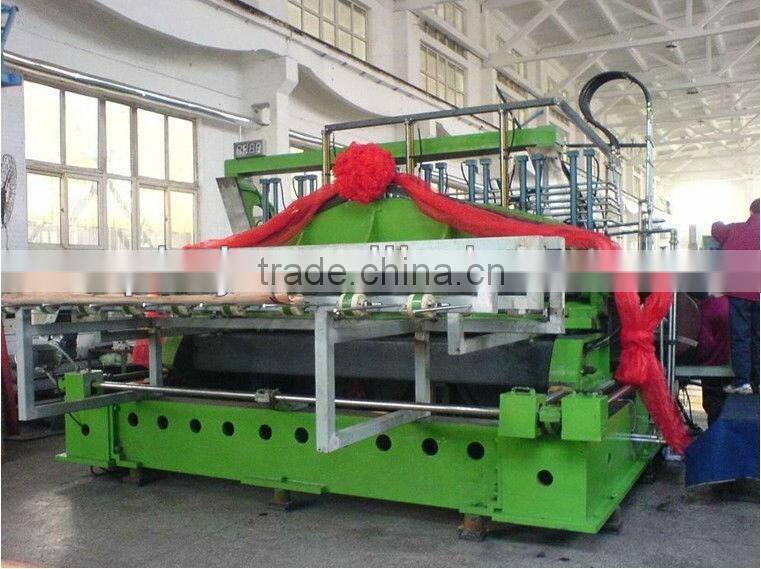

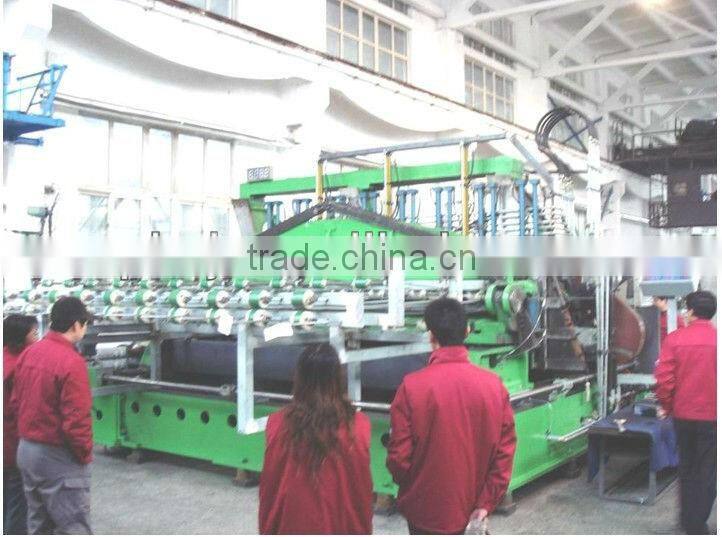

In working condition
Pckage: Bare packing and fit in container directly.
Delivery: About 50 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
760mm
