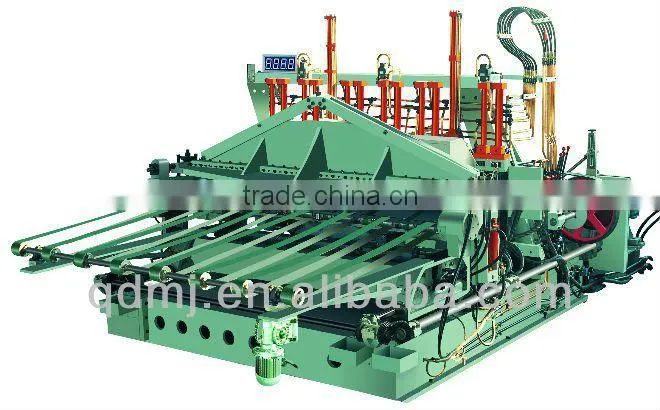

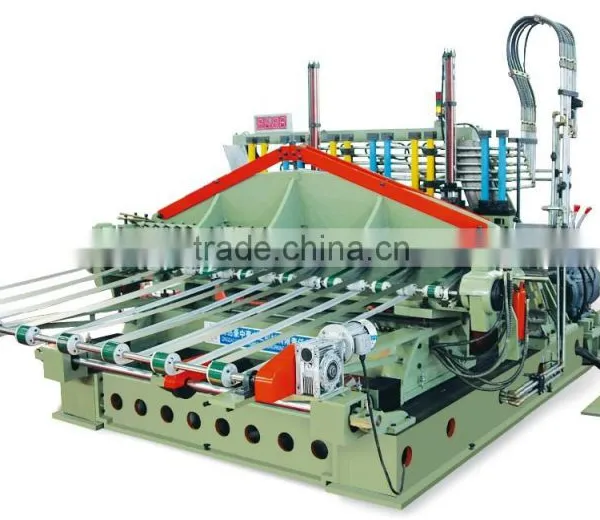

WE OFFERING U VERY HEAVY DUTY VERTICAL VENEER SLICER MODEL BB 1332
| MODEL | BB1332 |
| max allowed wood size | 3000x450x500mm |
| size of the planer tool | 3200x200x19mm |
| slicing thickness | 0.2-3mm |
| slicing speed | max.80pcs/min |
| wood clamping method | Hydraulic control |
| power source | 41.35/44.85kw |
| main motor | 30kw |
| motor of oil pump | 5.5kw |
| knife-holder quick back motor | 2kwx2/7.5Kw |
| circulating heat water motor | 0.75kw |
| veneer transport motor | 1.1kw |
| size of body | 6800x4600x3700mm |
| net weight | 21T |
Features Overview
1Main motor of veneer slicer adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
Veneer slicer online video: /v_show/id_XNTM4MjYwNTI4.html
pneumatic brake system/ servo feeding system Self lubricating center
hydraulic clamping system
Package: Bare packing and fit in container directly.
Delivery: About 50 days after receive the down payment.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
Usually 600, width can reach 1300mm by BB1135B model
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
