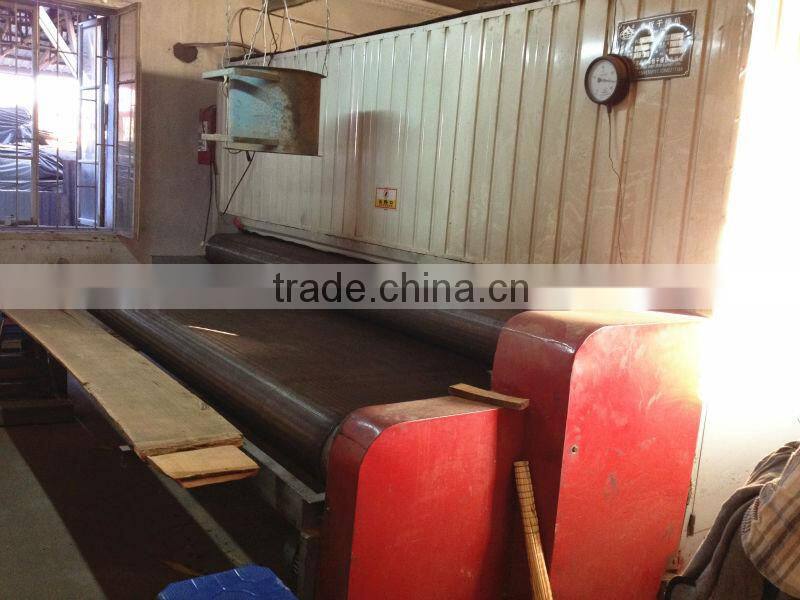

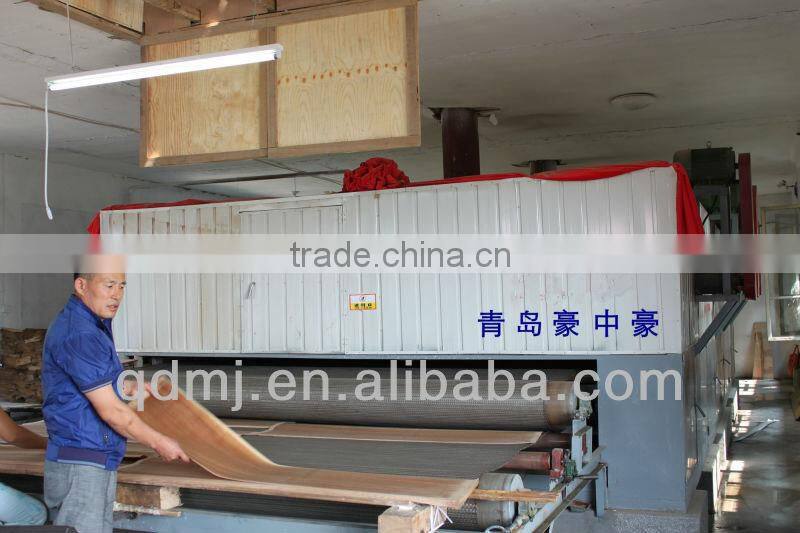

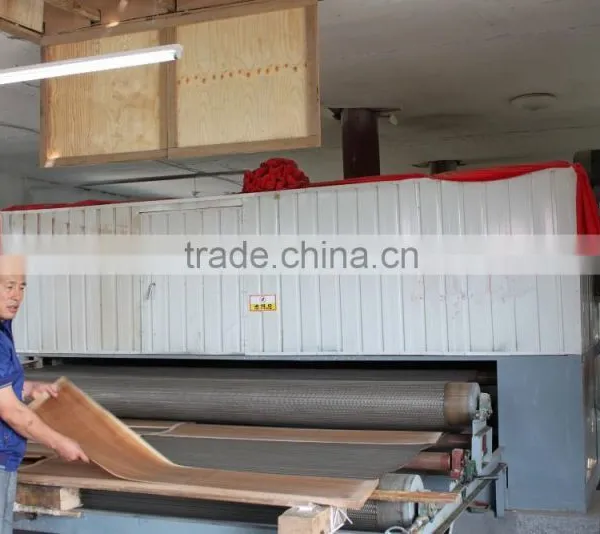

One layer veneer net dryer machine

We supply high quality One layers Net veneer dryer machine BG1826

 1- Model BG1826

2- Working width 2650mm
3- Working layers 1
4- Length of heating section 8×2000=16000mm
5- Length of cooling section 1×2000=2000mm
6- General motor power  52 KW
7- Transmission motor power 4kw×1=4kw
8- Motor power of thermal air blower 5.5×8=44kw
9- Motor power of cooling air blower 4kw×1=4kw

10- Veneer transportation speed 0-12m/min

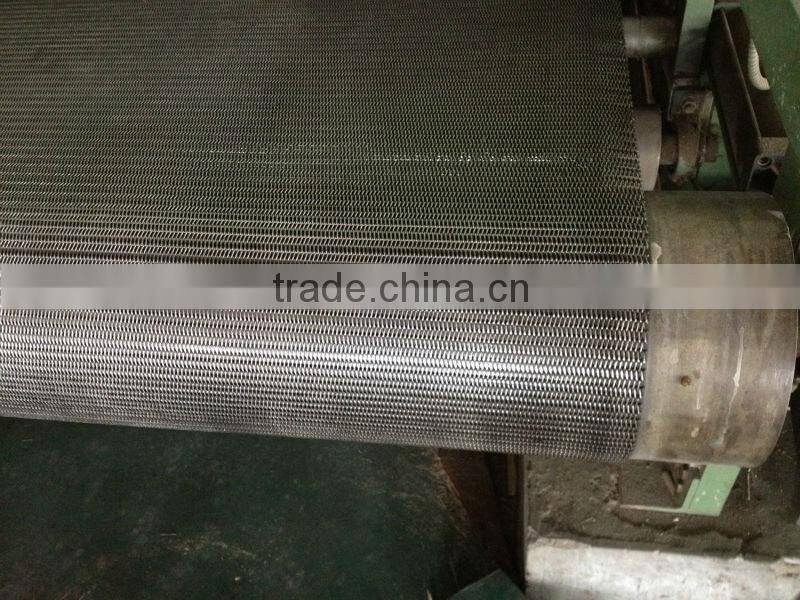

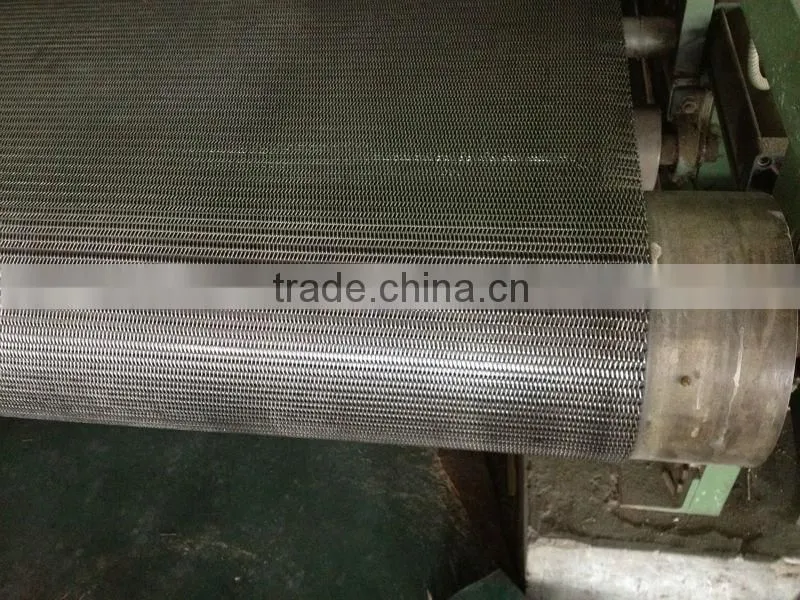

11- Stainless screen
12- Heating medium Steam or Thermal oil
13- Steam pressure 4MPa
14- Drying temperature 90 -130°C
15- Steam consumption 1T
16- Veneer density 600kg/m3(advantage)
17- Available veneer thickness 0.2~2mm
18- Veneer initial moisture content 35%
19- Veneer final moisture content 10%±2%
20- Drying capacity 12-18m3/24 hours
23- Overall dimension 18 X3.65 X1.75m
24- Total weight 17T



Drying system
Hot-air curtain style:

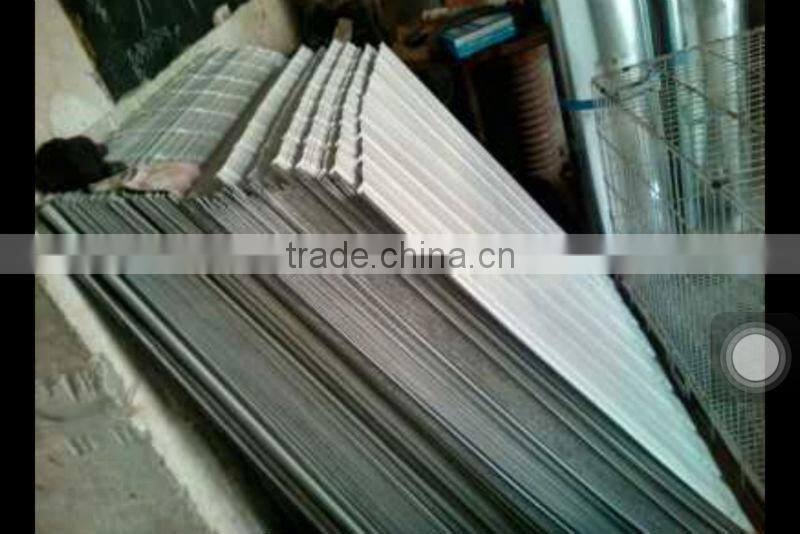

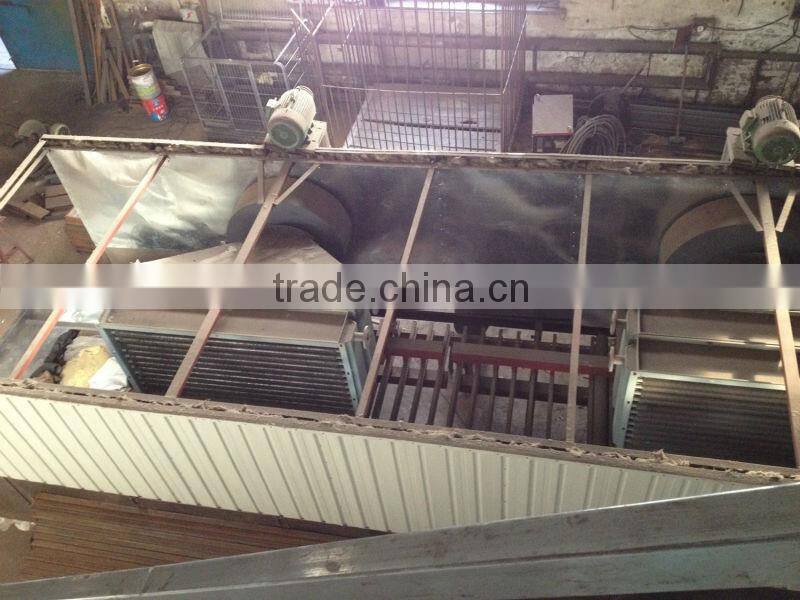

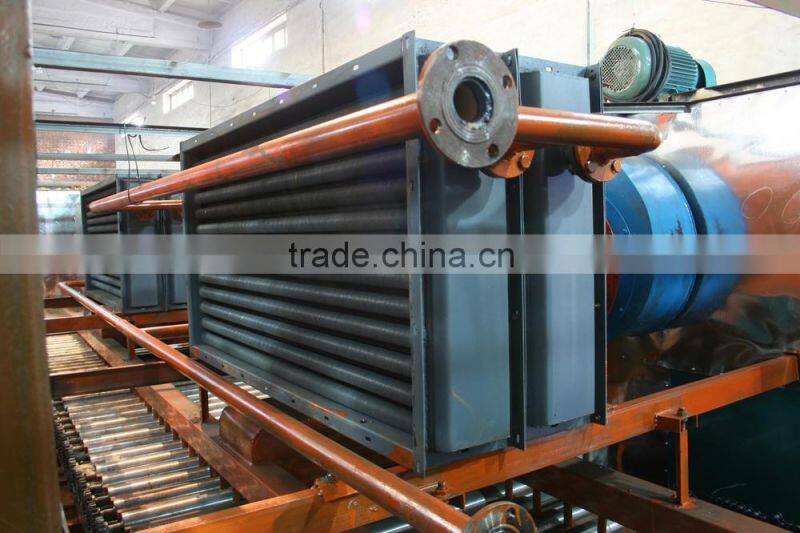

In this type, the air is circulated in (direct)direction, radiator adopt steel aluminum alloy sheets, is heated with steam and oil the hot-air immit into the top and bottom bellows by acentrical fan, and injected with high speed into both sides of the veneers.  The veneers are dried uniformly.
Driving system:

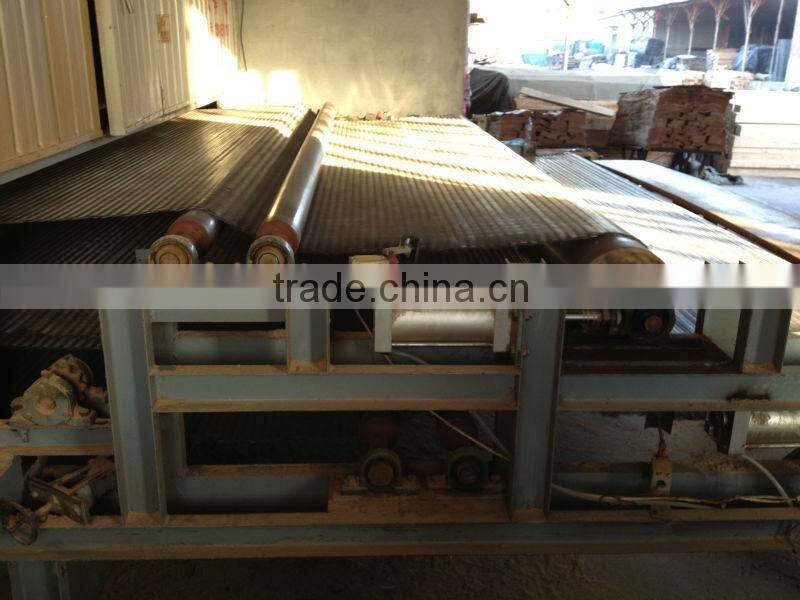

The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, the veneer advance pressed by the top roller weight.  The veneer is dried when come through the rollers and air nozzle with flat smooth surface.
Control system
According to the users’ requirement, we have manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thickness and different moisture of the veneer is dried.
Structure selection
The  contour structure is metal material (iron plate, aluminum plate, stainless steel ect.) asbestos keep temperature with brick body, we can produce according to your requirement and also remake the old machines.
Heating source system:
You can choose the heating systems according to your conditions and environments such as hot air stove, steam stove, oil stove.

The inlet width can be customised from 1.35meter to 3meter
Veneer dried thickness is available in range 0.2mm-5.0mm.
