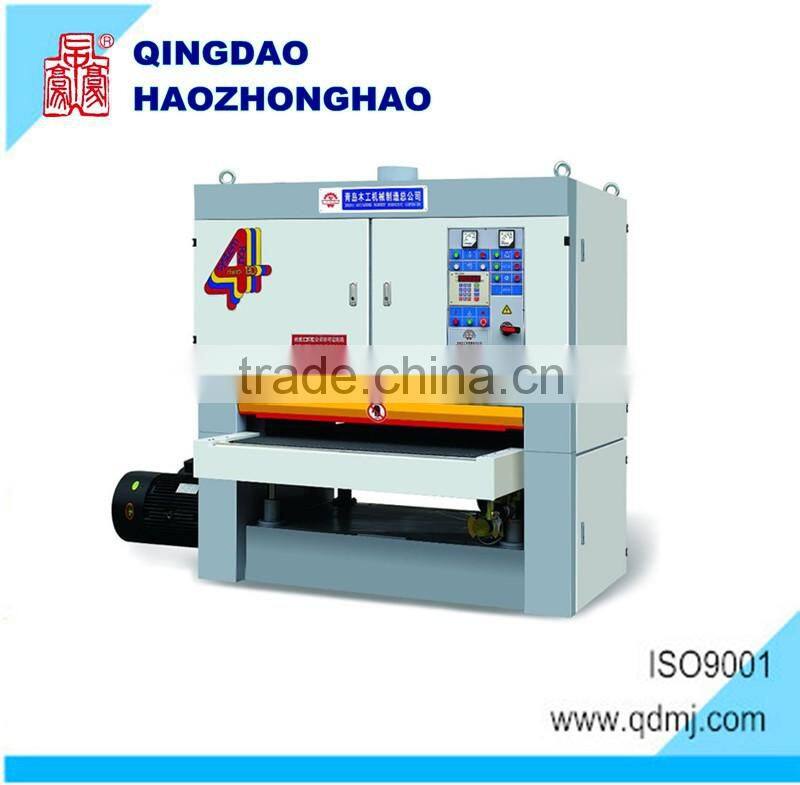

Help CenterSFE130 R-RP Woodworking Machine Wide Belt Sanding Machine
Related Products
-
Woodworking Machine Wide Belt Sander MachineUS$ 10,000 - 12,000MOQ: 1 Set -
SFE130 R-RP Woodworking Machine Wide Belt Sander MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
MM5813 Woodworking Plywood Particleboard Calibrating Double Side Sanding MachineUS$ 80,000 - 90,000MOQ: 1 Set
-
MM5613 Woodworking Plywood Particleboard Calibrating Double Side Sanding MachineUS$ 60,000 - 80,000MOQ: 1 Set
-
Two Side Sander MachineUS$ 80,000 - 90,000MOQ: 1 Set
| Model | SFE130R-RP(A) | SFE130RP-P |
| Width of sanded panel | 40-1300mm | 40-1300mm |
| Thickness of sanded panel | 3-120mm | 3-170mm |
| Speed of abrasive belt on 1st unit | 18m/s | 18m/s |
| Speed of abrasive belt on 2nd unit | 12m/s | 12m/s |
| Feed speed | 6-30m/min | 6-30m/min |
| Size of abrasive belt | 1330*2500mm | 1330*2500mm |
| Total power | 56.62/63.62KW | 39.82KW |
| Power of abrasive belt on 1st unit | 30Kw/37Kw | 22Kw |
| Power of abrasive belt on 2nd unit | 22Kw | 15Kw |
| Conveyer motor power | 4Kw | 2.2Kw |
| Lifting motor power | 0.25Kw | 0.25Kw |
| Brush motor power | 0.37Kw | 0.37Kw |
| Pressure | 0.55Mpa | 0.55Mpa |
| Compressed air consumption | 0.2m³/min | 0.2m³/min |
| Compressed air volume | >8000m³/h | >8000m³/h |
| Speed required for cleaning equipment | 25-30m/s | 25-30m/s |
| Weight | 3200Kg | 3000Kg |
| Overall dimension | 2600*2020*2130mm | 2525*2020*2100mm |
1. Function and Characteristics:
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.

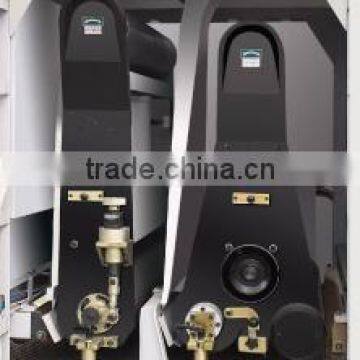

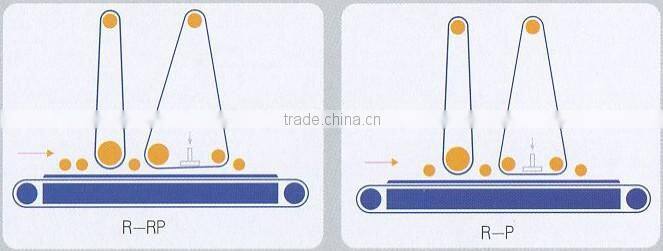

(2) SFE130R-RP, the front roller is adjustable steel roller; the second one is rubber roller with sanding pad. Steel roller keep sanding and rubber roller is for fine polishing. roller can change accroding to your requirement
(3) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
2. Standard installation:
(1). Feeding belt automatic centering.

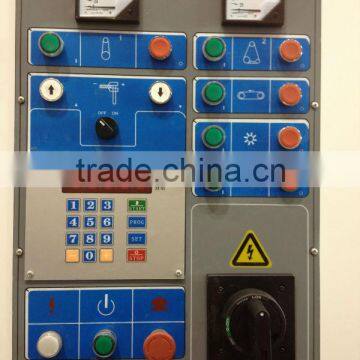

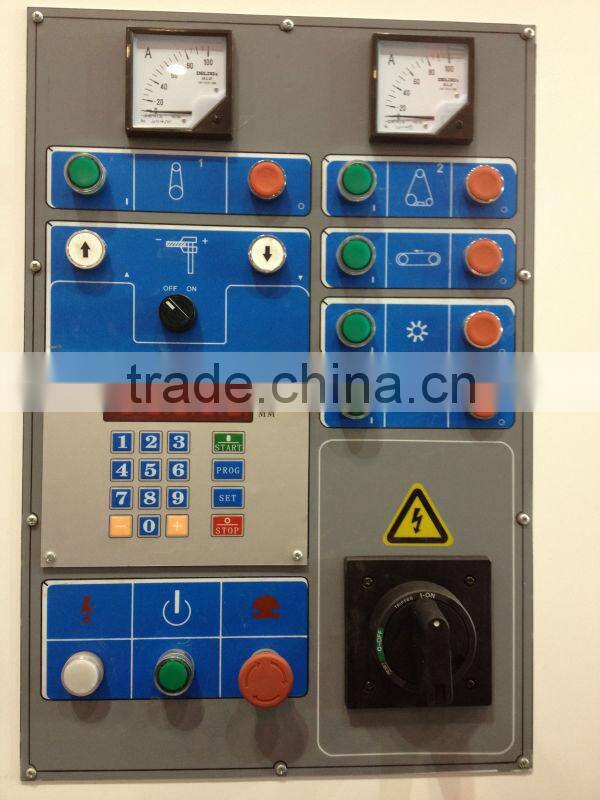

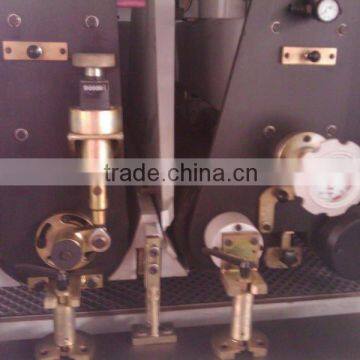

(2). Digital thickness display.
(3). Limitation switch equipment which control vibrating of abrasive belt along center.
(4). Brush roller cleaning the panel after sanding
(5). Oil/air filters supply purity air continually
3. Optional Parts:
(1). Vacuum feeding table
(2). Japanese NSK internal bearing reduce vibration of belt
(3). Automatic air blower on first and second belt
(4). Pneumatic pad
(5). Motor power

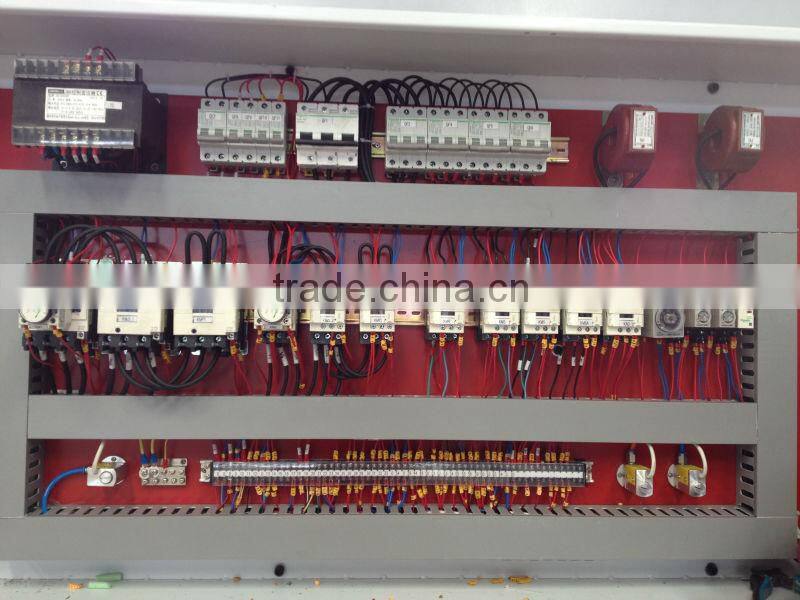

(6). French Schneider Electrical switch contactor
(7). Thickness setting device adjust the height of table automatically according to the thickness of work piece

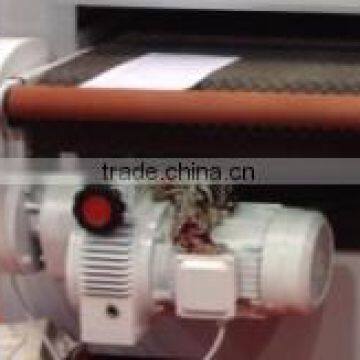

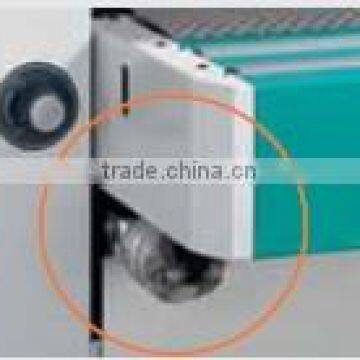

Variable speed of conveyor belt Automatic centering of conveyor belt

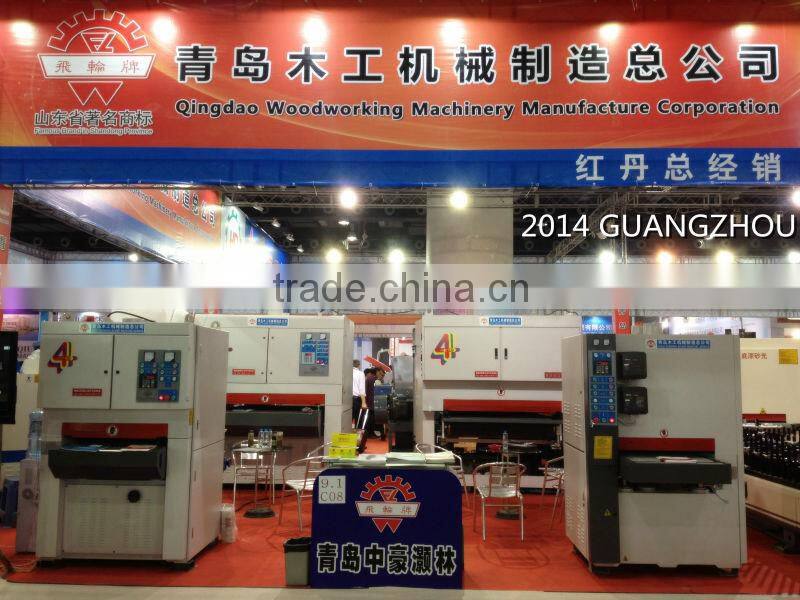

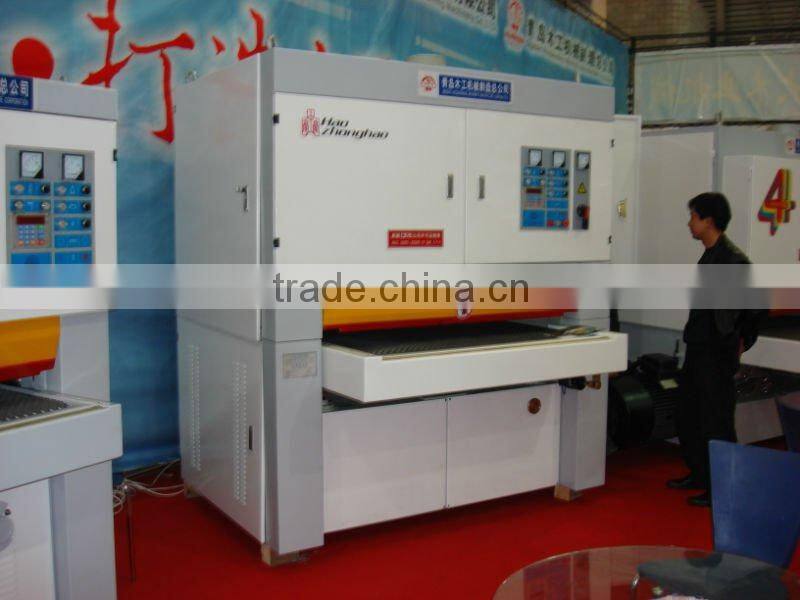

2014 in Guangzhou Woodworking Exhibition

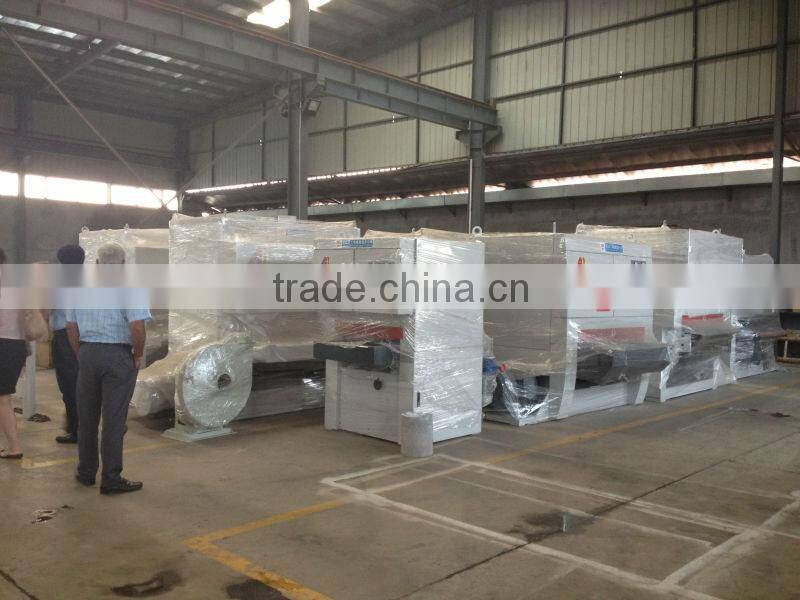

Package: PE film package.
Delivery: About 30 days after receive the down payment.
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especiallySanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
