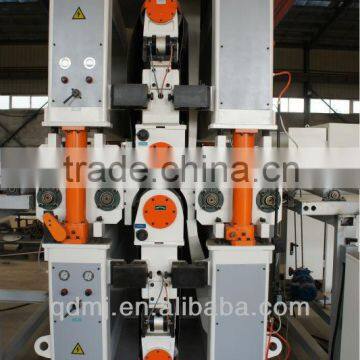

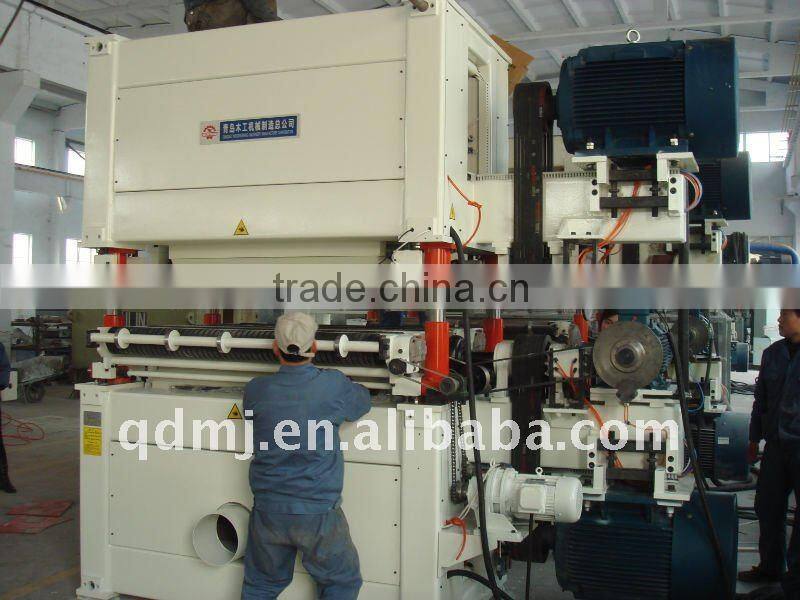

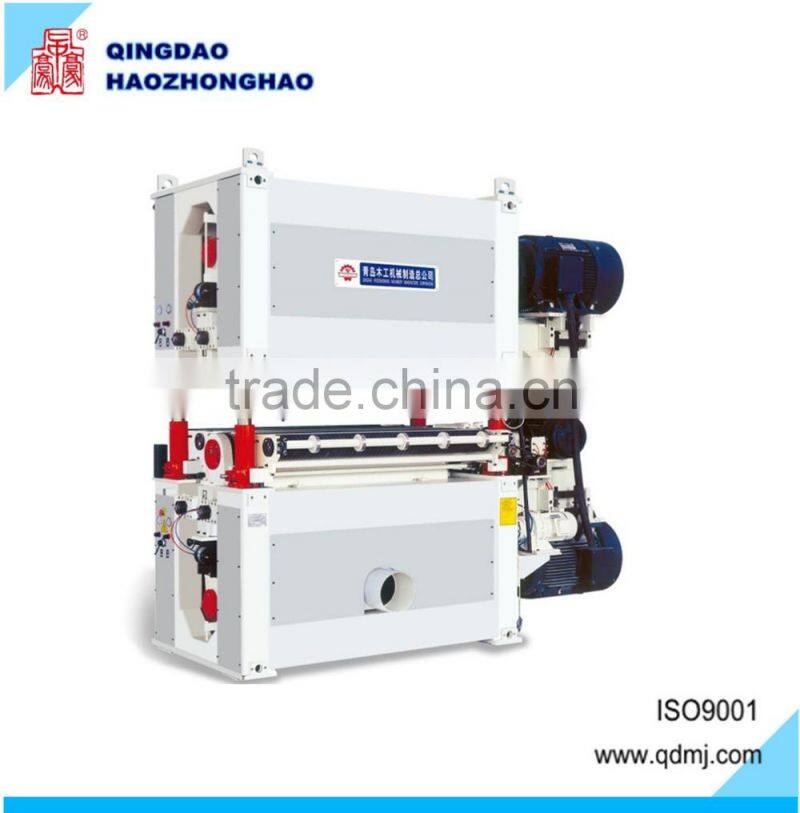

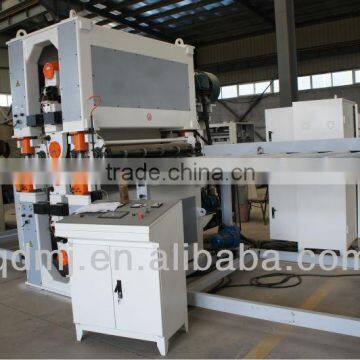

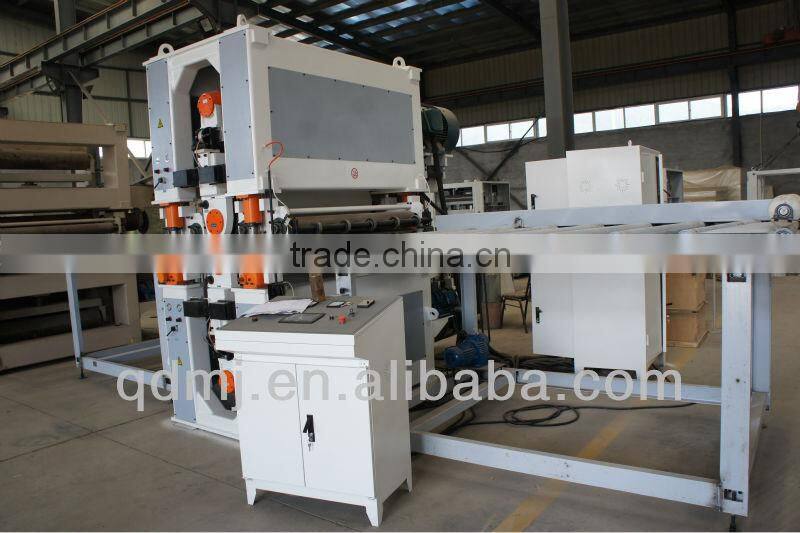

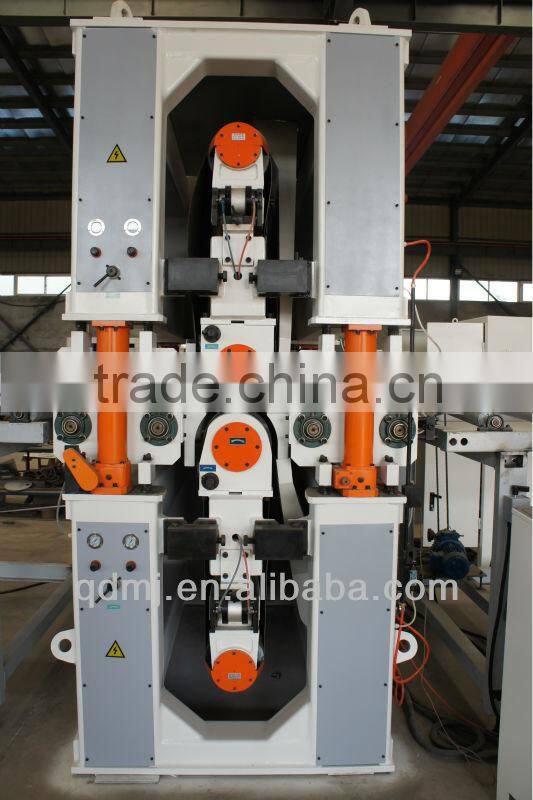

Help CenterMM5613 Woodworking Plywood Particleboard Calibrating Double Side Sanding Machine
Related Products
-
Two Side Sander MachineUS$ 80,000 - 90,000MOQ: 1 Set -
Two Side Sanding MachineUS$ 80,000 - 90,000MOQ: 1 Set
-
Double Side Sander MachineUS$ 80,000 - 90,000MOQ: 1 Set
-
Double Side Sanding MachineUS$ 80,000 - 90,000MOQ: 1 Set
-
MM5813 Woodworking Two Side Sander MachineUS$ 80,000 - 90,000MOQ: 1 Set
We Supply high quality MM5613 Woodworking double side sanding machine
Specifications
1Machine is widely used in PB lines
2 MAX working width: 1300mm
3 for heavy calibrating and fine polishing
4 ISO9001
Model |
MM5613R |
MM5813R-R |
Working width |
≤1300mm | ≤1300mm |
Working thickness |
≤100mm | ≤100mm |
Working length |
≥600mm |
≥6000mm |
Working precision |
+0.08mm or -0.08mm |
+0.08mm or -0.08mm |
Size of abrasive belt |
1350*2560mm |
1350*2560mm |
Speed of abrasive belt |
25m/s |
25m/s |
Total power |
145kw |
277.2kw |
Motor power of abrasive belt |
75Kw*2 | 75Kw*2 |
Rear motor power of abrasive belt |
|
55Kw*2 |
Motor power of auto-feeding system |
11Kw |
15Kw |
Power of motor for up and down |
2.2Kw |
2.2Kw |
Working air pressure |
0.6-0.8m³/h |
0.6-0.9m³/h |
Volume of compressed air |
1.0m³/h |
2.0m³/h |
Volume of dust-collecting |
28000m/s |
56000m/s |
Weight |
15T | 20T |
Overall dimension |
1850*3400*3000mm |
2990*3400*3000mm |
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sanding machine?
Usually 600- 1300mm. Also It can produce as clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especiallySanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
