Complete Line for Automatic Vials Normal Saline Filiing Line
Main Application
1.This unit is made up of CLQ Ultrasonic Vertical Washing Machine, RSM Sterilizing & Drying Machine and KGYX Filling & Sealing Machine.
2.It is divided into three working areas of washing, sterilizing & drying and filling & sealing. It can be either used in-line or in the form of three single machines.

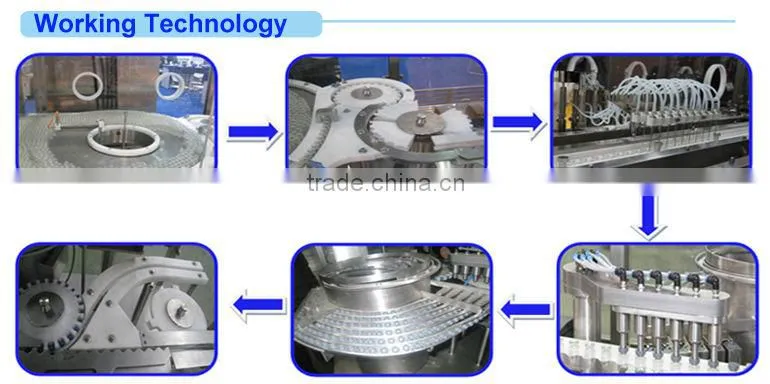

3.The unit can automatically finish the processes of water spaying, ultrasonic wave washing, compressed air blowing, recycling water flushing, compressed air blowing, fresh high-temperature sterilizing, cooling, bottle-collating, filling, cap-collating, stopppering, panel mounting and so on for vials.
Main technical parameters
Type |
Component parts |
Suitable size |
Output(max) |
Power |
Net weight |
Overall size |
BXKZ I |
CLQ40 |
2.25ml |
6000-12000 pcs/h |
69.8KW |
7500Kg |
9930×2500×2340mm |
PSM620/44 | ||||||
KGYX8 | ||||||
BXKZII |
CLQ60 |
2.25ml |
8000-18000 pcs/h |
85.8KW |
8000Kg |
10830×2500×2340mm |
RSM620/60 | ||||||
KGYX10 | ||||||
BXKZ III |
CLQ80 |
2.25ml |
10000-24000 pcs/h |
123.8KW |
8100Kg |
10830×2500×2340mm |
RSM900/100 | ||||||
KGYX12 |
