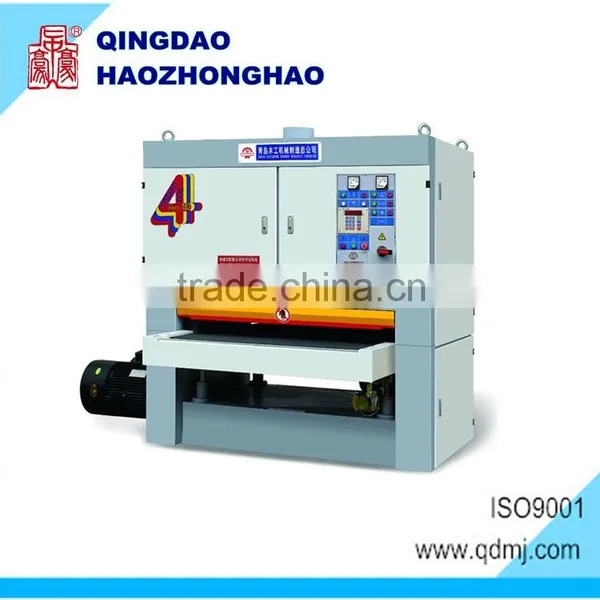

We supply high quality Calibrating wide belt sanding machine SFE130 R-RP/SFE130 RP-P
| Model | SFE130R-RP(A) | SFE130RP-P |
| Width of sanded panel | 40-1300mm | 40-1300mm |
| Thickness of sanded panel | 3-120mm | 3-120mm |
| Speed of abrasive belt on 1st unit | 18m/s | 18m/s |
| Speed of abrasive belt on 2nd unit | 12m/s | 12m/s |
| Feed speed | 6-30m/min | 6-30m/min |
| Size of abrasive belt | 1330*2500mm | 1330*2500mm |
| Total power | 56.62/63.62KW | 39.82KW |
| Power of abrasive belt on 1st unit | 30Kw/37Kw | 22Kw |
| Power of abrasive belt on 2nd unit | 22Kw | 15Kw |
| Conveyer motor power | 4Kw | 2.2Kw |
| Lifting motor power | 0.25Kw | 0.25Kw |
| Brush motor power | 0.37Kw | 0.37Kw |
| Pressure | 0.55Mpa | 0.55Mpa |
| Compressed air consumption | 0.2m³/min | 0.2m³/min |
| Compressed air volume | >8000m³/h | >8000m³/h |
| Speed required for cleaning equipment | 25-30m/s | 25-30m/s |
| Weight | 3200Kg | 3000Kg |
| Overall dimension | 2600*2020*2130mm | 2525*2020*2100mm |
The max. sanding width is 1300mm. It is suitable for calibrating and fine sanding kinds of panels. Its indexed are advanced and it is in high precision, reasonable composition and convenient operation. It has the world advanced level.
This machine is one of the necessary equipment for integrated wood and furniture manufacturing.

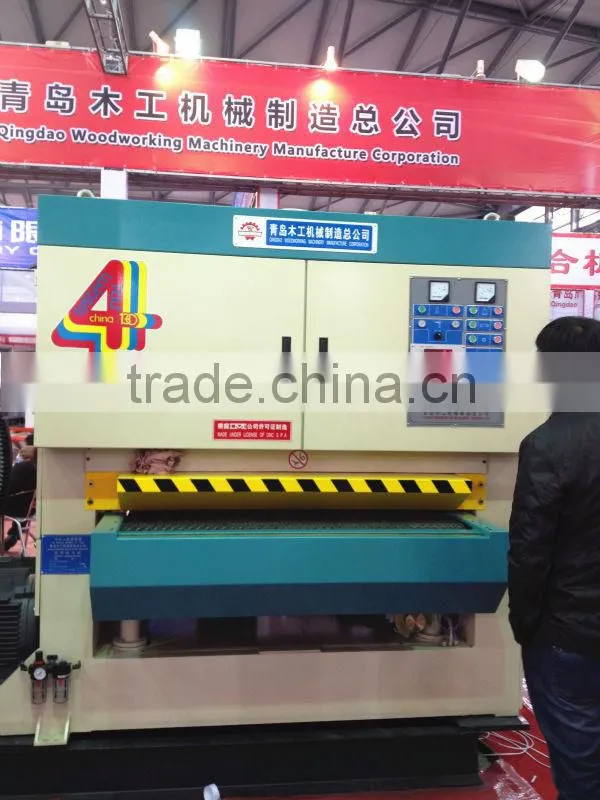

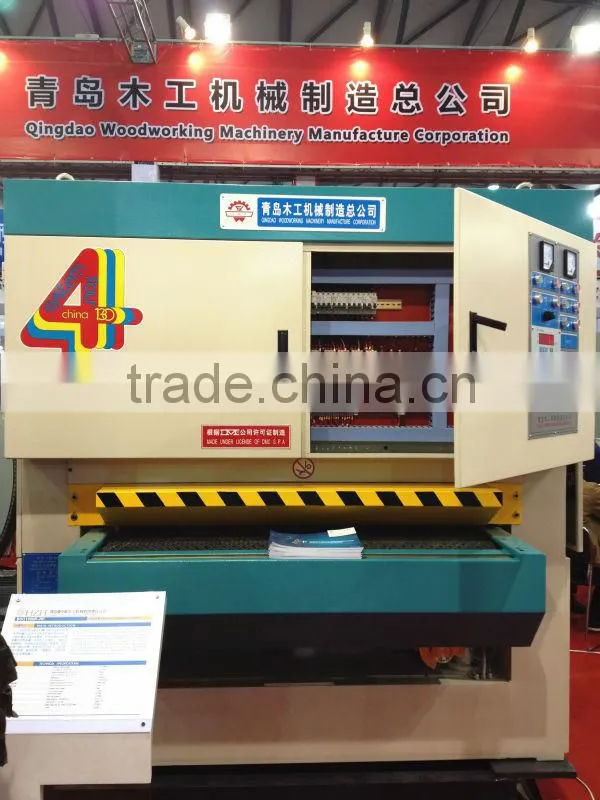

We are at 2013 International Forestry and Woodworking Machinery Exhibition in Shanghai
Package: Pallet package.
Delivery: About 20 days after receive the down payment.
Engineer is available to service machinery oversea
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sanding machine?
Usually 600- 1300mm. Also It can produce as clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
How to contact me?
More details please contact Vivian Qu
Email: qwz(at)
Skype: quvivian
Tel: 0086-84822277
Mobile: 0086-15315014218
