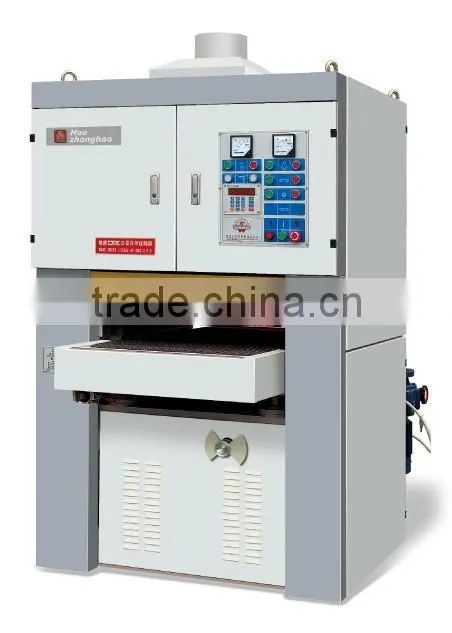

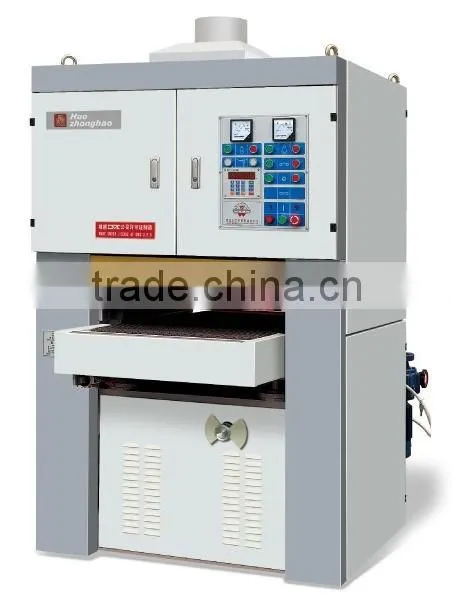

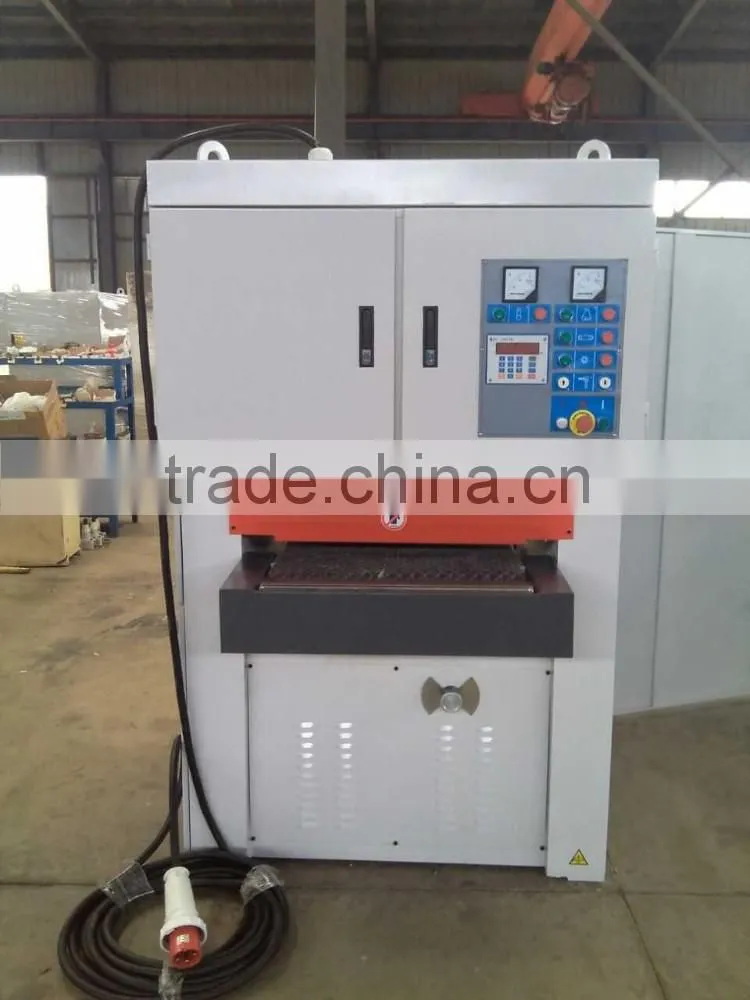

We Supply High Quality SFE630R-RP Woodworking calibrating and polishing two heads wide belt sander machine
Specifications
This machine being produced under technical collaboration of 'D.M.C' Italy and under the licence granted by D.M.C Italy
| Model | SFE63R-RP(A) |
| Width of sanded panel | 30-630mm |
| Thickness of sanded panel | 3-90mm |
| The first group Belt speed | 20m/s |
| The second group Belt speed | 18m/s |
| Size of abrasive belt | 1900×650mm |
| The first group Belt motor power | 15/11Kw |
| The second group Belt motor power | 11/7.5Kw |
| Conveyor Motor | 1.5Kw |
| Working pressure | 0.55Mpa |
| Compressed air consumption | 0.09M3/min |
| Speed required for cleaning equipment | 25-30m/s |
| Dimensions | 1180*1660*1960mm |
| N.W . | 1500kg |
This machine is a double belt sanding machine whose know-how is transferred from Italian DMC Company and it is also manufactured under the license granted by the same company. The max. sanding width is 630mm. It is suitable for calibrating and fine sanding kinds of panels. Its indexed are advanced and it is in high precision, reasonable composition and convenient operation. It has the world advanced level.
This machine is one of the necessary equipment for integrated wood and furniture manufacturing.

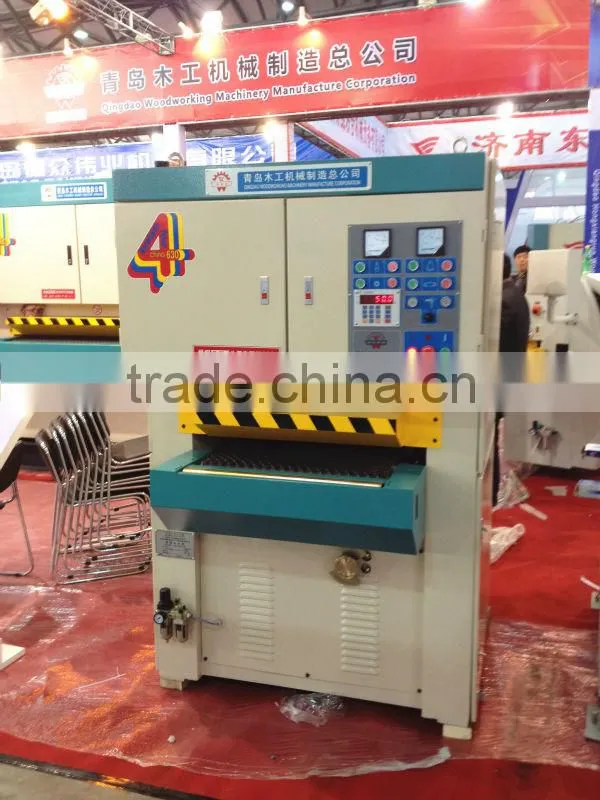

We are at 2013 International Forestry and Woodworking Machinery Exhibition in Shanghai
Engineers available to service machinery overseas
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sanding machine?
Usually 600- 1300mm. Also It can produce as clients requests.
What is the Max working width of Dryer?
Usually is 1500-2800mm. Also It is changeable according to clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
