100ml Large Volume Polypropylene Bottle Infusion Machine

100ml Large Volume Polypropylene Bottle Infusion Machine photo-1
100ml Large Volume Polypropylene Bottle Infusion Machine photo-2

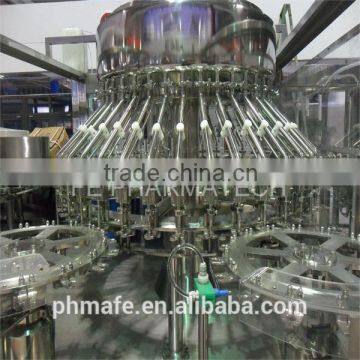

100ml Large Volume Polypropylene Bottle Infusion Machine photo-3

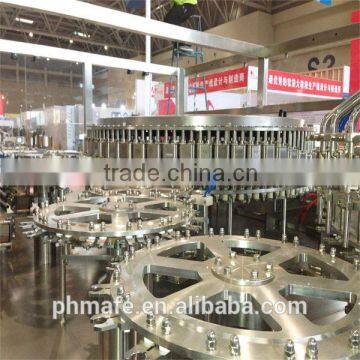

100ml Large Volume Polypropylene Bottle Infusion Machine photo-4

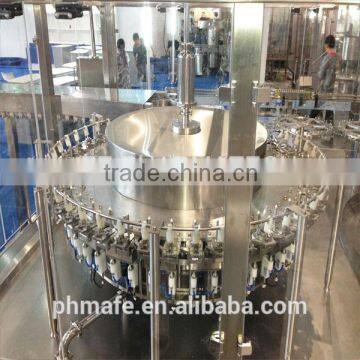

100ml Large Volume Polypropylene Bottle Infusion Machine photo-5

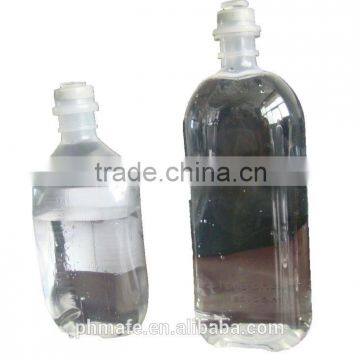

100ml Large Volume Polypropylene Bottle Infusion Machine photo-6
US$ 200 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Medical, Machinery & Hardware, Medical, 100ml Large Volume Polypropylene Bottle Infusion Machine
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Medical, Machinery & Hardware, Medical, 100ml Large Volume Polypropylene Bottle Infusion Machine
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 100ml Large Volume Polypropylene Bottle Infusion Machine
Power 100ml Large Volume Polypropylene Bottle Infusion Machine
Place of Origin Hunan, China
Brand Name FE
Model Number XGF
Dimension(L*W*H) 100ml Large Volume Polypropylene Bottle Infusion Machine
Weight 100ml Large Volume Polypropylene Bottle Infusion Machine
Certification GMP/CE, GMP,CE
After-sales Service Provided Engineers available to service machinery overseas

100ml Large Volume Polypropylene Bottle Infusion Machine








Product Description

Main application:


1. 100ml Large Volume Polypropylene Bottle Infusion Machine is contains bottle-washing, filling, and cap-sealing three stations as a whole.



2.Washing, filling and sealing three stations adopt rotary type.



3.The sealing station uses hot-melt welding to seal cap.



4.The machine uses mechanical hand to catch bottles neck for location and handing-over.



5.Any scrape of bottle or bottom is not allowed.



6.This promotes production efficiency and ensures quality.



 Main Technical Parameters



Production capacity

2000~20000 bottles/hour

Specification

50~500ml round or heteromorphic plastic bottle

Bottle washing

ionic air washing

Washing heads

20~60

Filling heads

18~48

Sealing heads

 20~60

Main filling medium

Liquid such as large volume infusion solution

Filling error

±1.5%

Liquid filling temperature and pressure

40~55℃  0.6~2kg/cm²

CIP/ SIP

125 ℃--30 min

Air consumption (clean air): Pressure

0.6~0.8Mpa  180(120)m³/h

Cooling water

250L/h, 15~20℃

Noise

max.75dB

Electric capacity

18~35KW





Working  Principle







Packaging & Shipping





Shipping and Payment



Packing

Export standard package

MOQ

1 set

FOB price

Please contact for new price

Delivery time

60days

FOB port

Shanghai

Payment terms

T/T,L/C at sight
