PU cold room panel advantages
- Waterproof and fireproof.
- Environment-friendly materials
- Safe&easy to install
- Competitively price
Changzhou City Dongqi Warm and Cold Equipment Co.,LTD.It was founded in 2009.It has two branch office.Dongqi cold storage and Dongqi electrical appliances.Dongqi cold storage main production and management polyurethane insulation cold storage board.Dongqi electical mainly engaged in computer temperature controller,research and production of refrigeration control box.
Should any of these items be of interest to you .please let us now.we will give you our best service.
Cold Storage is in thermal insulation materials such as polyurethane insulation board ,and create the suitable temperature by cooling facilities warehouse and low temperature conditions.
Fruit and vegetable cold room can be widely used in food,dairy,pharmaceutical,chemical,logistics,fruits and vegetables,eggs,hotels,supermarkets,hospitals,stations,ships,military etc.
Product Desription of PU Panel
| Weight of PU panel | 50mm,75mm,100mm,120mm,150mm,200mm |
| Length of PU panel | According to user requirements |
| Width of PU panel | 960mm/1000mm |
| Fireproof | According to customer requirement, default is B2 grade |
| Density | 42~45(KG/M3) |
| Temperature | -50°C ~ +50°C |
| PU panels cover |

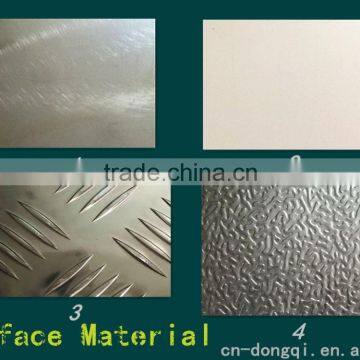

Color plate,aluminum,stainless steel,galvanized steel,
|
| Interior material | High quality polyurethane(PU) |
| Product name | cold room panel 75mm |
| After-sales Service Provided | No overseas service provided |
| Warranty | one year |
| Certificate | ISO9001;2008 |
Performance Parameter of PU Panel
| Project | Norm | Our company |
| Density | 40±2kg/m3 | 40.91 kg/m3 |
| Thermal conductivity | ≤0.024W/(m.K) | 0.021 W/(m.K) |
| Compressive strength | ≥160kpa | 170kpa |
| Adhesive strength | >0.100MPa | 0.145 MPa |
Cold Storage Panel Application Temperature
| Thickness of cold storage panel | Application Temperature |
| 50mm | Temperature 5°c or above |
| 75mm | Temperature -5°c or above |
| 100mm | Temperature -15°c or above |
| 120mm | Temperature -25°c or above |
| 150mm | Temperature -35°c or above |
| 200mm | Temperature -50°c or above |
1. What is the thickness of the Cold Storage panel?
The thickness of the cold Storage panel is 50mm, 75mm, 100mm, 120mm, 150mm, 200mm.
2. If you want to customize the Large Usage and High Efficiency Cold Storage , the details about the cold storage as follows you should tell me.
(1) What is the size of the cold storage?
(2) What is the cold storage used for?
