We supply high quality Plywood Making Wide Belt Sanding Machine Line

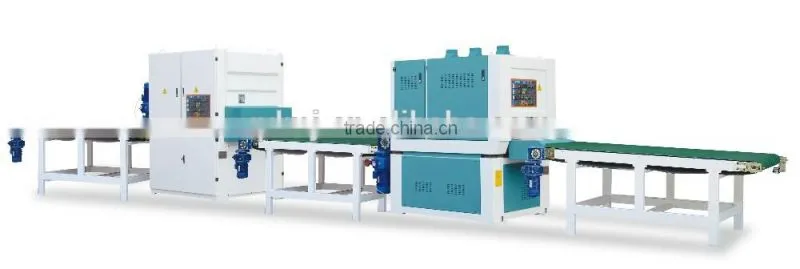

Sanding machine line
Upper float sanding machine
| Model | MSG630F R-RP | MSG1000F R-RP |
| Working Width | 30-630mm | 30-1000mm |
| Working Thickness | 2-100mm | 2-100mm |
| First sand belt Speed | 3-16m/s | 3-16m/s |
| Second sand belt Speed | 3-16m/s | 3-16m/s |
| Feed Speed | 5-25m/min | 5-25m/min |
| Size of Sand belt | 650*1900mm | 1020*2000mm |
| No.1 Motor Power | 11Kw | 15Kw |
| No.2 Motor Power | 7.5kw | 11kw |
| Feeding power | 1.1kw | 4kw |
| Lifting power | 0.37kw | 0.55kw |
| Brush Roller | 0.25kw | 0.25kw |
| Total Motor Power | 18.6kw | 24.6kw |
| Working Air Pressure | at least 0.55Mpa | at least 0.55Mpa |
| Speed of Sucked Air | at least 25m/s | at least 25m/s |
| Overall Dimensions | 1862*1240*1995mm | 1862*1635*2040mm |
Bottom sanding machine
| Model | MSG630F R-RP | MSG1000F R-RP |
| Working Width | 30-630mm | 30-1000mm |
| Working Thickness | 2-100mm | 2-100mm |
| First sand belt Speed | 3-16m/s | 3-16m/s |
| Second sand belt Speed | 3-16m/s | 3-16m/s |
| Feed Speed | 5-25m/min | 5-25m/min |
| Size of Sand belt | 650*1900mm | 1020*2000mm |
| No.1 Motor Power | 11Kw | 15Kw |
| No.2 Motor Power | 7.5kw | 11kw |
| Feeding power | 1.5kw | 1.5kw |
| Lifting power | 0.37kw | 0.55kw |
| Total Motor Power | 20.37kw | 27.87kw |
| Working Air Pressure | at least 0.55Mpa | at least 0.55Mpa |
| Speed of Sucked Air | at least 25m/s | at least 25m/s |
| Overall Dimensions | 1800*1260*2120mm | 1850*1550*2280mm |
Package: PE film package.
Delivery: About 20 days after receive the down payment.
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
