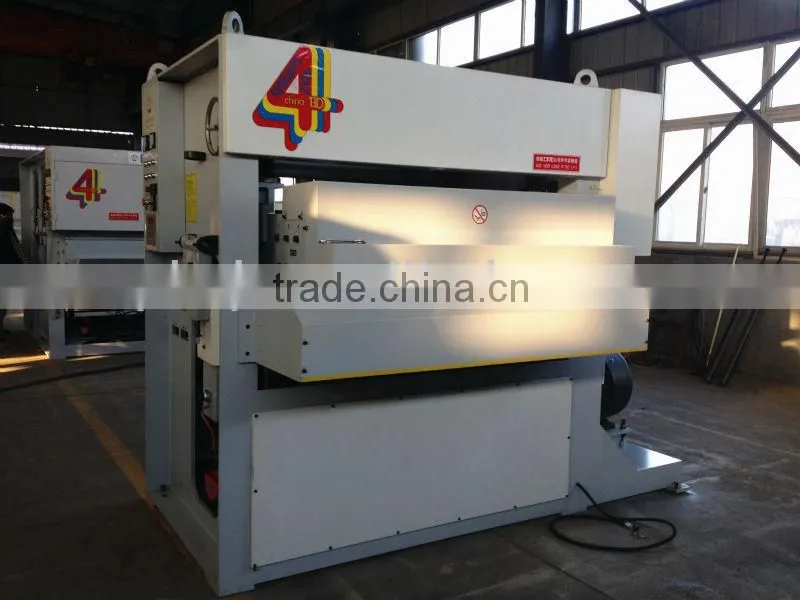

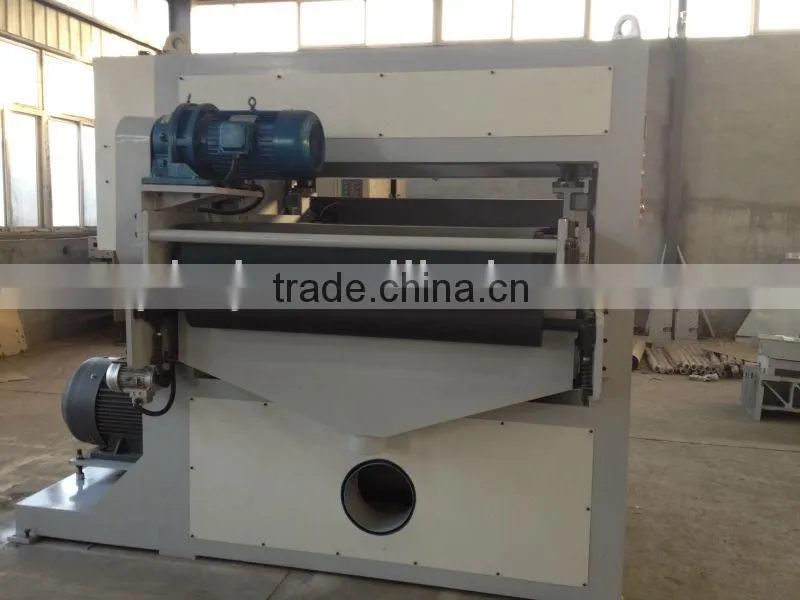

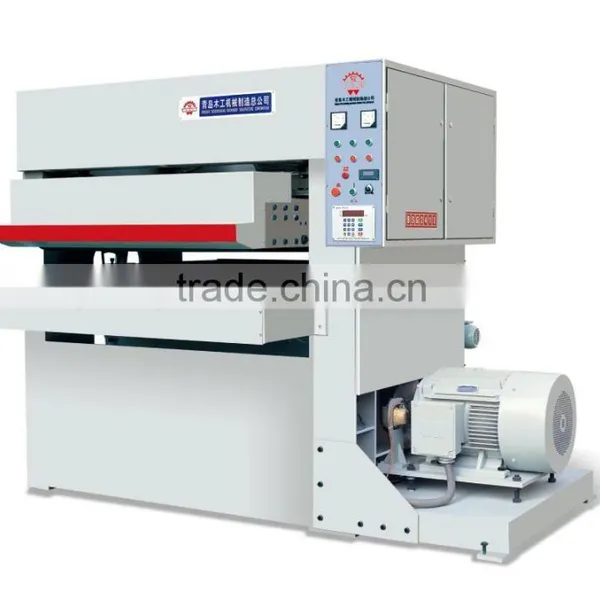

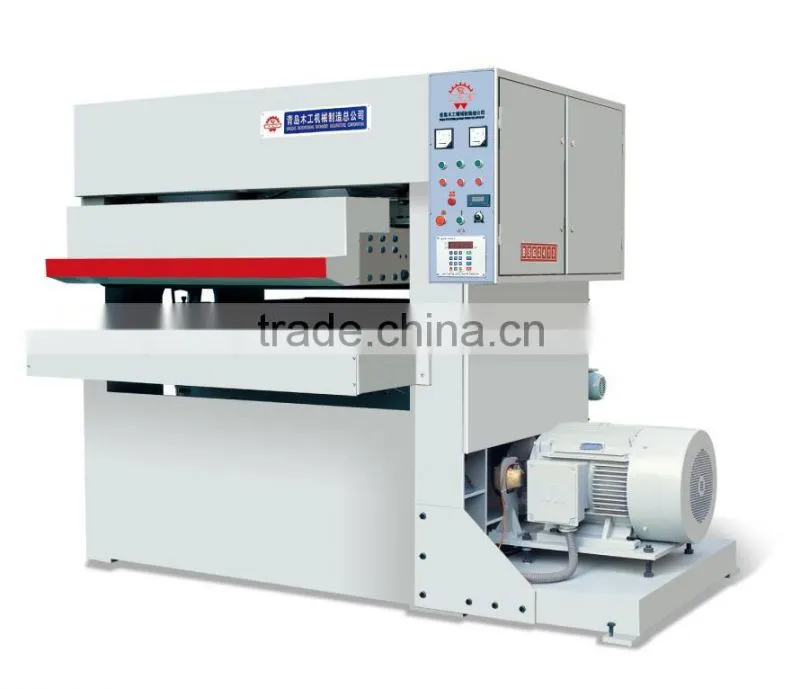

We supply high quality woodworking sanding machine BSG2413
| Model | BSG2413 |
| width of sanded panel | 40--1300mm |
| thickness of sanded panel | 2.5--120mm |
| speed of abrasive belt | 18m/s |
| size of abrasive belt | 1330*2620mm |
| feed speed | 13-100m/min |
| power of abrasive belt | 55Kw |
| conveyor motor power | 7.5Kw |
| working pressure | 0.6Mpa |
| compressed air consumption | 0.15m³/min |
| speed required for cleaning equipment | 25-30m/s |
| compressed air volm | ≥8000m³/h |
| weight | 6000Kg |
| overall dimension | 2915*2075*2245 |
Adopt imported original frequency converter, action is sensitive and reliable and with good stability
The machine adopts frequency-controlled drive, the feed speed is 13-100m/min.
1Adopt world-advanced experience, a special machine-type designed meticulously
2Suitable for sanding various kinds of panels for factories that specialized in manufacturing woodworking panel.
3It is simple in design, convenient in operation and maintenance safety and reliable, with extra-low fault rate
4Sanding speed is high, with high efficiency and accuracy. Feed power adopts frequency converter. Feed speed is digital display and it can be adjusted according to different demands
5More safety devices are designed, safety and reliable, while you operate the machine, it can assure safety for operator and the machine, and it can save working manpower
6Carefully chosen world-advanced electric appliance elements, normal working state can be assured effectively
Package: Plastic film packing and fit in container directly.
Delivery: About 40 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Engineers available to service machinery overseas
