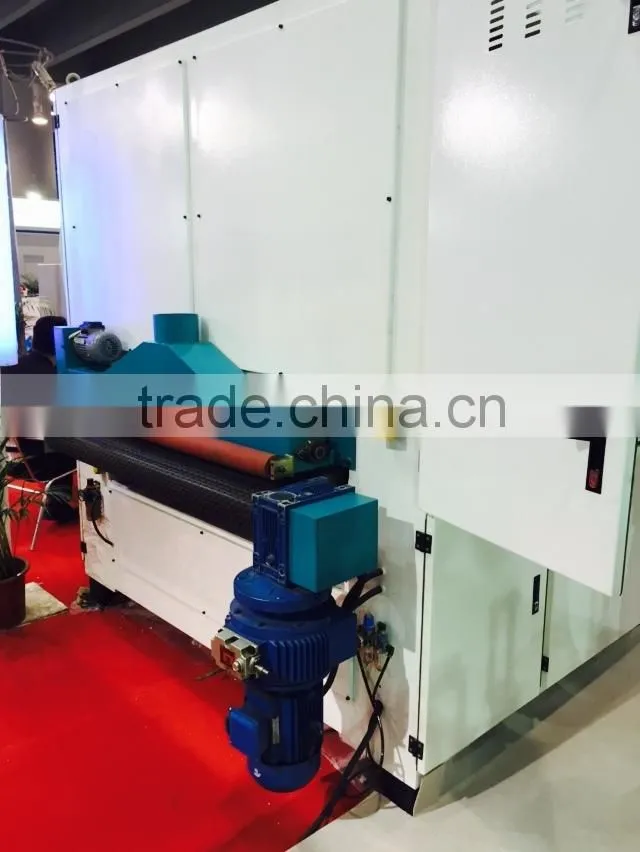

Help CenterSegmental Crossing Keyboard Pad Sanding Machine for Panel
Related Products
-
Woodworking Wide Belt Sander Machine LineUS$ 26,000 - 30,000MOQ: 1 Set -
Woodworking Wide Belt Sanding Machine LineUS$ 26,000 - 30,000MOQ: 1 Set
-
Wide Belt Sander Machine LineUS$ 26,000 - 30,000MOQ: 1 Set
-
Wide Belt Sanding Machine LineUS$ 26,000 - 30,000MOQ: 1 Set
-
Plywood Making Wide Belt Sander Machine LineUS$ 26,000 - 30,000MOQ: 1 Set

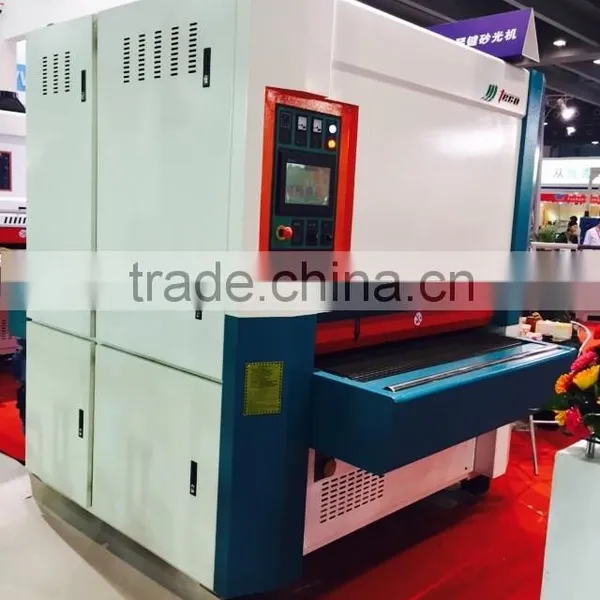

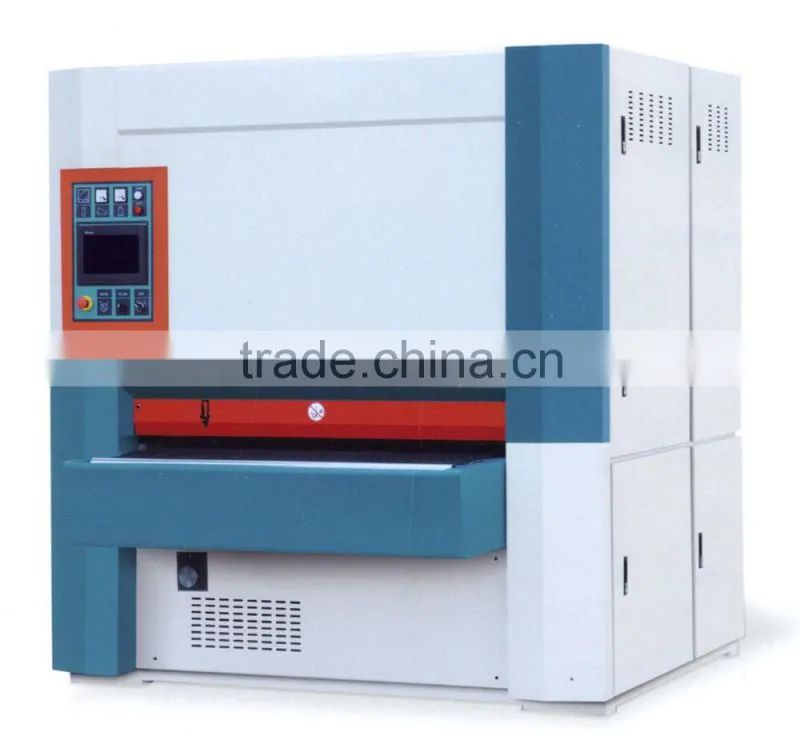

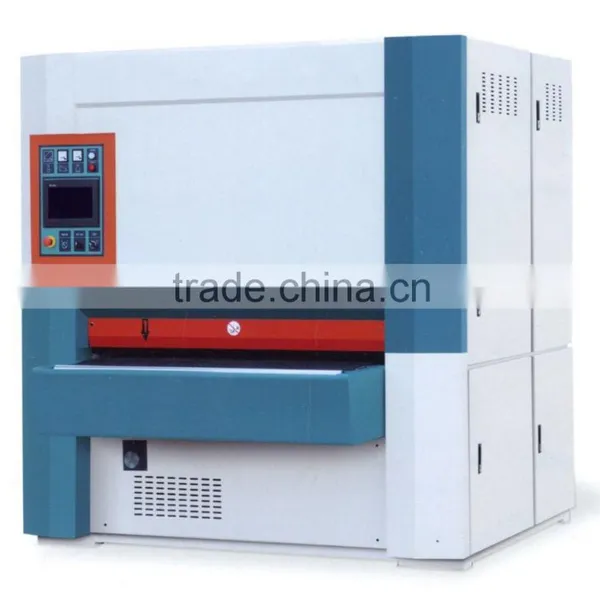

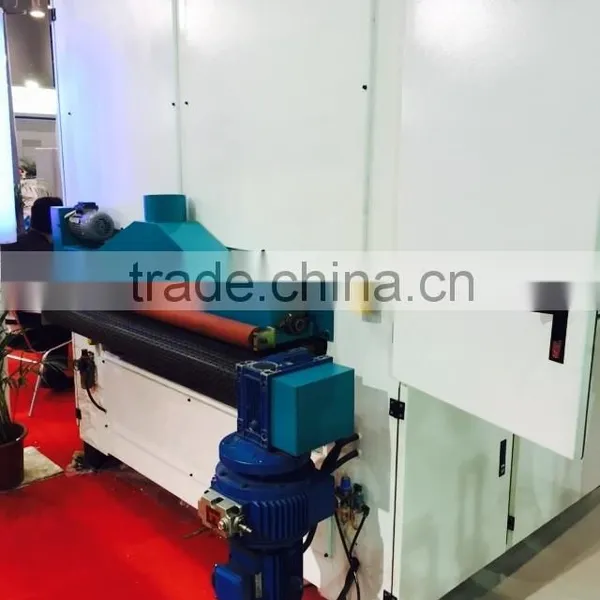

We supply high quality Crossing keyboard sanding machine for panel PSG1300P-P/ PSG1300R-P-P
Model |
PSG1300P-P |
PSG1300R-P-P |
Working Width |
1300mm |
1300mm |
Working Thickness |
2-110mm |
2-110mm |
Cross sanding belt speed |
3-18m/s |
3-18m/s |
Vertical/Segmental sanding belt speed |
3-18m/s |
3-18m/s |
Feed Speed |
5-25m/min |
5-25m/min |
Cross sandpaper size |
150*5000mm |
150*5000mm |
Vertical sandpaper size |
1320*2620mm |
1320*2620mm |
Vertical sanding unit power |
--- |
15kw |
Cross sanding unit power |
15kw |
15kw |
Segmental sanding unit power |
15kw |
15kw |
Feeding power |
3kw |
3kw |
Lifting power |
0.37kw |
0.37kw |
Brush roller power |
0.55kw |
0.55kw |
Total Power |
33.92kw |
48.92kw |
Working Air Pressure |
0.55Mpa |
0.55Mpa |
Consumption of compressed air |
1.2m3/min |
1.2m3/min |
Volume of dust collector |
10000m3/h |
10000m3/h |
Speed of dust collector |
25-30m/s |
25-30m/s |
Overall Dimensions |
2262*1983*2130mm |
3000*2180*2300mm |
This machine is suitable for sanding the surface of laminated, coated panel and veneer patterned panel

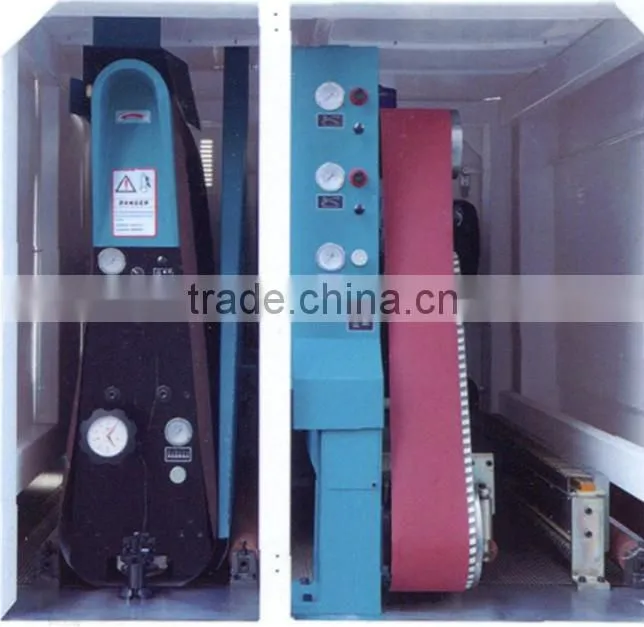

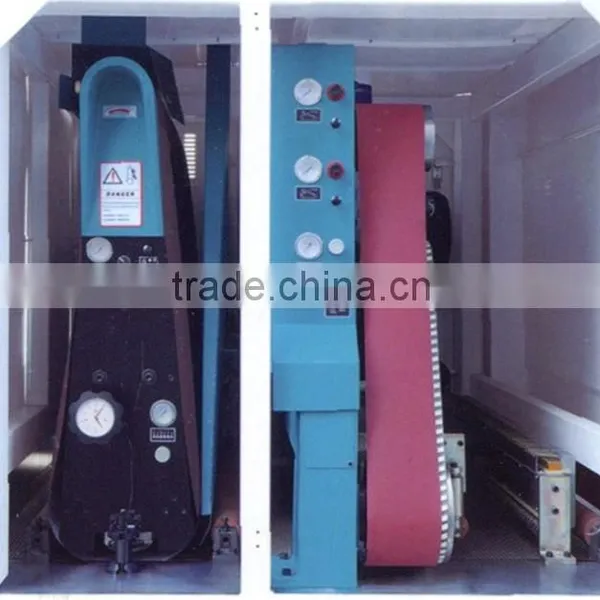

Under the control of senor, the working pressure and touch time of each separate piano unit are different

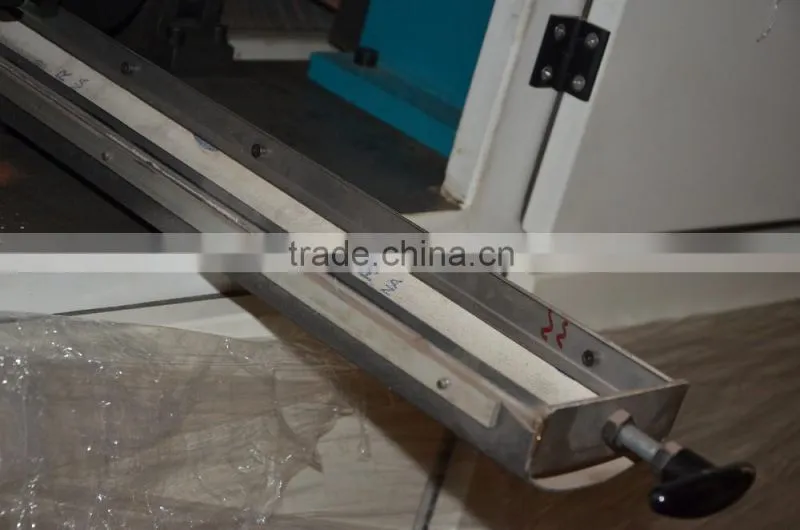

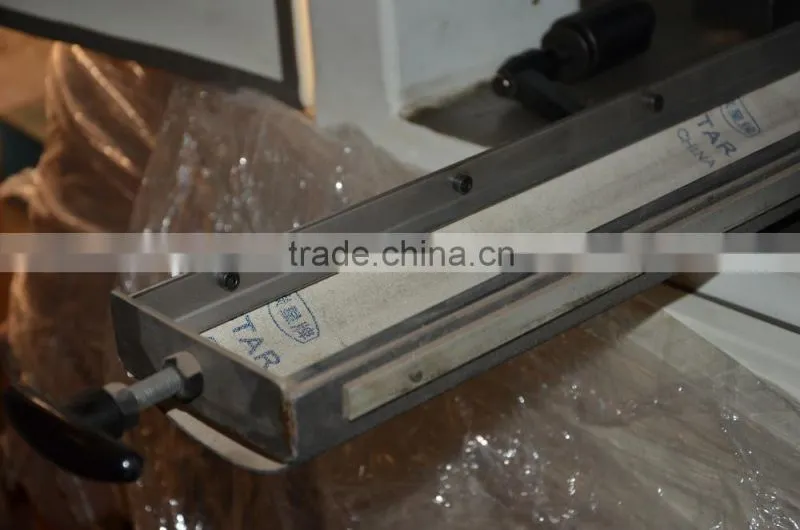

The segmental sanding pad is high compensatory.The max compensation adjustment is 2mm
Package: PE film package.
Delivery: About 20 days after receive the down payment.
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sander?
Usually 600- 1300mm. Also It can produce as clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
How to contact me?
More details please contact Vivian Qu
Email: qwz(at)
Skype: quvivian
Tel: 0086-84822277
Mobile: 0086-15315014218
Web:
