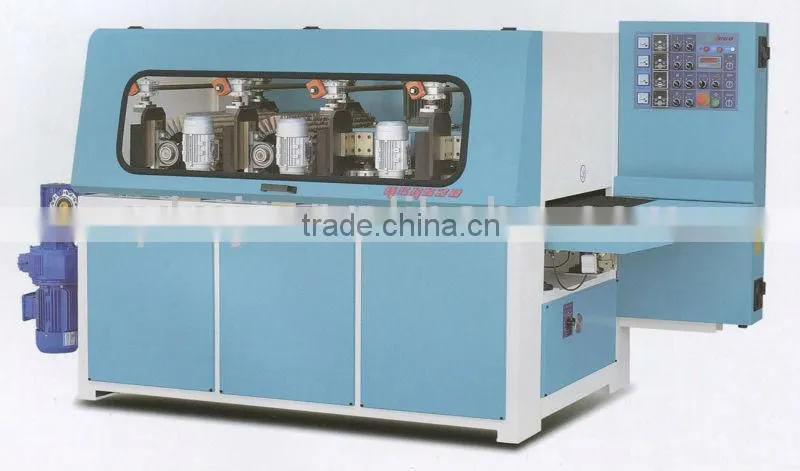

We supply Oscillating Curve Brush sanding machine for wood QSG630
Function Characteristic
1 Unique designing structure

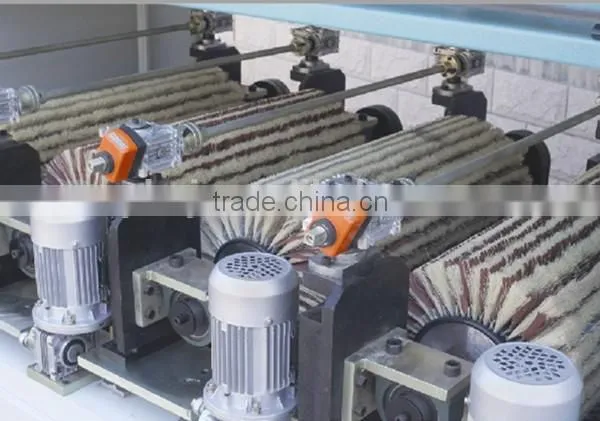

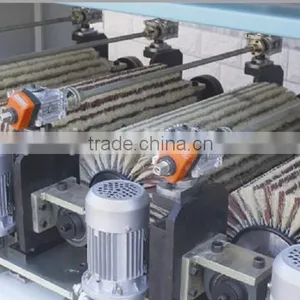

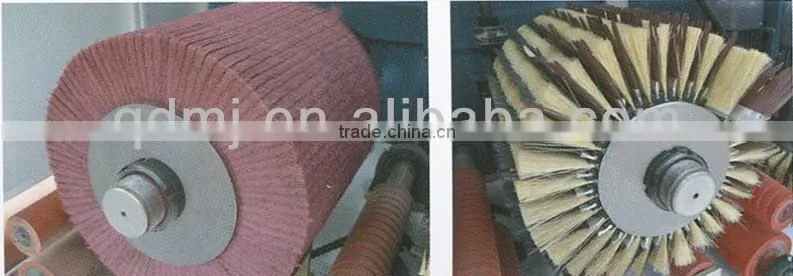

2 The combination of sanding roller and brush disc
3 It can assemble wire brush for surface wire brush treatment
4 The roller design for transverse oscillation
5 The sanding paper and brush is separate structure, the cost is low.
6 Drawer-type replace the sanding paper, it is very convenient

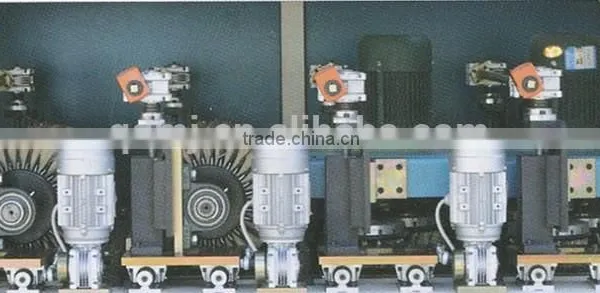

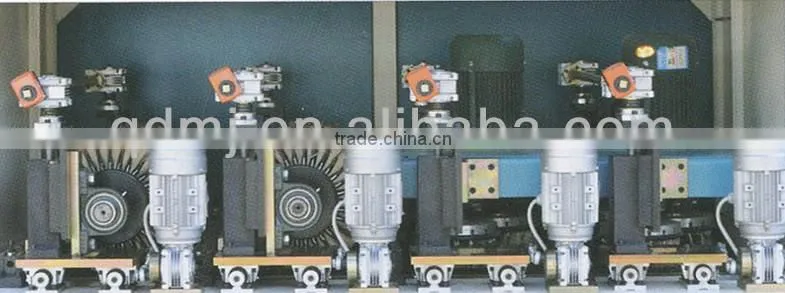

7 4 sanding spindles frequency control of motor speed separately for meet the difference sanding request.
8 It also used for sanding the primer
Model |
QSG630 |
Working Width |
630mm |
Working Thickness |
5-110mm |
Feed Speed |
5-25m/min |
Number of Brush Roller |
2 |
Number of Sanding Disc |
4 (in two rows) |
Feeding Speed |
3-15.6m/s |
Magnitude of the swing |
±25mm |
Main motor power |
1.5kw*4 |
Total Motor Power |
8.59kw |
Overall Dimensions |
2800*1400*1520mm |
Package: Plastic film packing and fit in container directly.
Delivery: About 20 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
