Low investment hydraulic sesame oil extraction machine
with factory price
Brief introduction of hydraulic sesame oil making machine :
The machine is suitable for cold pressing or hot pressing any oil seeds and oil plant,
such as olive, sesame seeds, palm kernel, pumpkin seeds, cashew, avocado, tiger nut, fruit seeds, etc.
Only one machine, you could get the better oil and easy to operate.
Main structure of hydraulic sesame oil making machine :
The machine is mainly composed of plunger, hydraulic cylinder, upright, flexible top, base, workbench,
feed cylinder, heating collar, fixing, oil tank etc.
Features of hydraulic sesame oil making machine :
Hydraulic oil press has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, compact structure,
low energy consumption reliable performance,etc.So this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.
This machine can press at 2 to 7 kilogram per batch, the time is about 6 to 10 minutes.
Technical parameter of hydraulic sesame oil making machine :
Models | HSO-180 | HSO-230 | HSO-320 |
External Dimension(mm) | 800*650*1100 | 900*750*1400 | 1100*1000*1500 |
Weight of machine | 530kg | 880kg | 1320kg |
Nominal pressure | 1600KN | 2200KN | 3000KN |
Max pressure for working | 55Mpa | 55Mpa | 55Mpa |
Power of electricity heating circle | 1KW | 1KW | 2KW |
Controlling temperature of heating circle | 70-100°C | 70-100°C | 70-100°C |
Sesame weight/time | 1-3kg | 2-7kg | 5-15kg |
Power(kw) | 1.5kw | 1.5kw | 1.5kw |
Deatails of oil production output for hydraulic sesame oil making machine :
Raw Material | Mode | Oil Extraction Rate(%) | Time Period/time | Weight(kg)/time | 10 hours processing capacity(KG) |
Sesame
| 180 |
42%-52%
| 5-8min | 1-3 | 150-300 |
230 | 5-8min | 1-7.5 | 400-600 | ||
300 | 6-8min | 1-15 | 1000-1200 | ||
Amonds
| 180 |
40%-45%
| 5-8min | 1-2.5 | 150-250 |
230 | 5-8min | 1-6 | 300-500 | ||
300 | 6-9min | 1-14 | 800-1000 | ||
Walnuts
| 180 |
50%-60%
| 5-8min | 1-2.5 | 150-250 |
230 | 5-8min | 1-6 | 300-500 | ||
| 300 | 6-9min | 1-14 | 800-1000 |

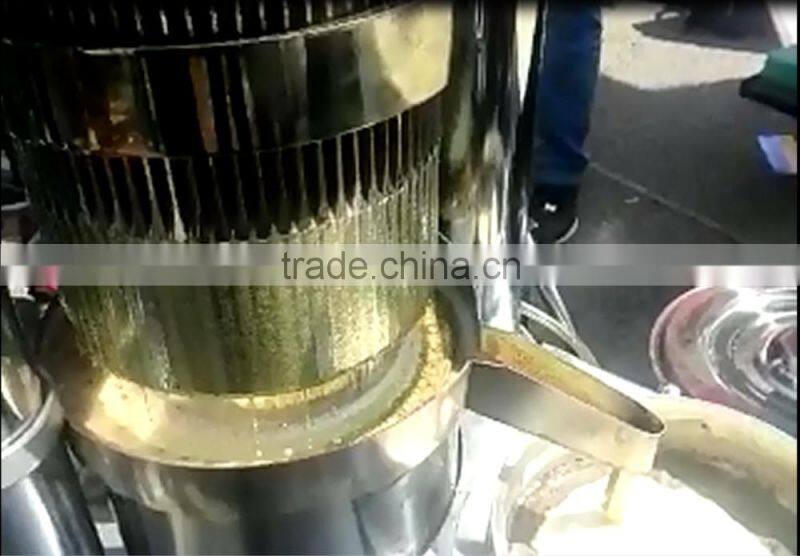

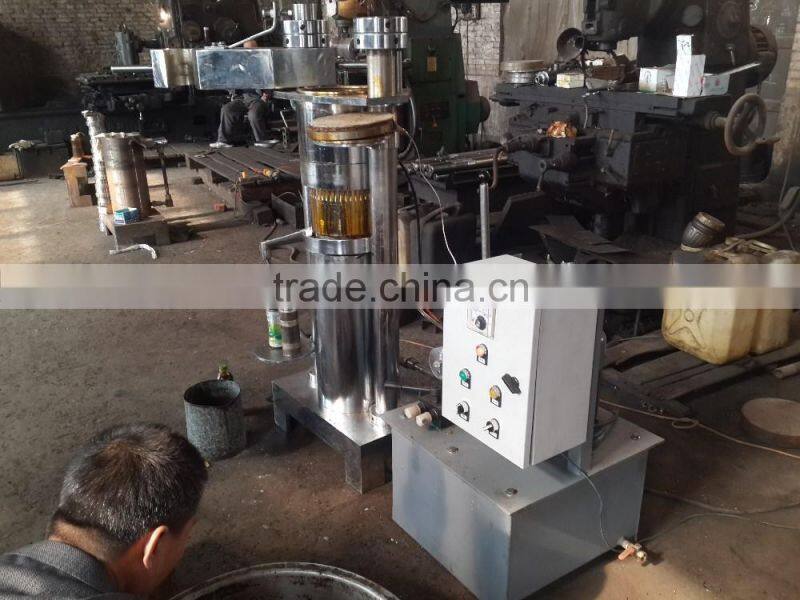

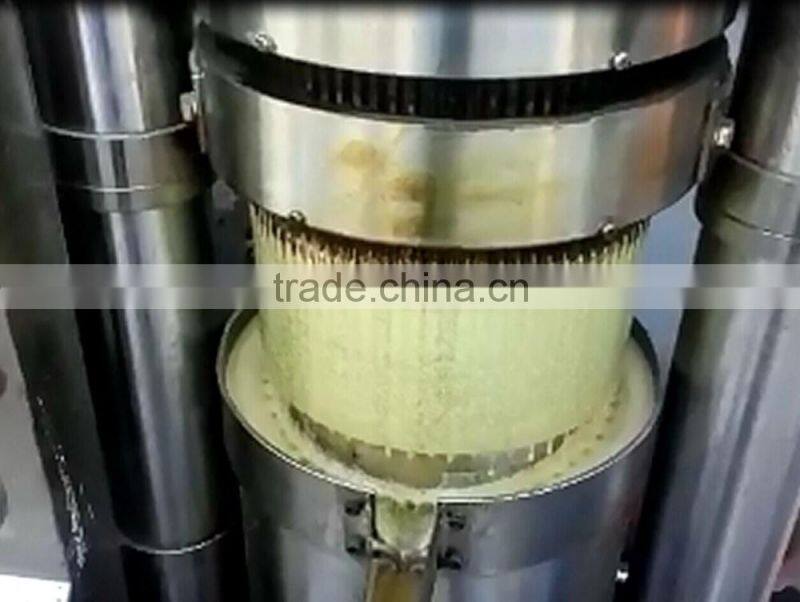

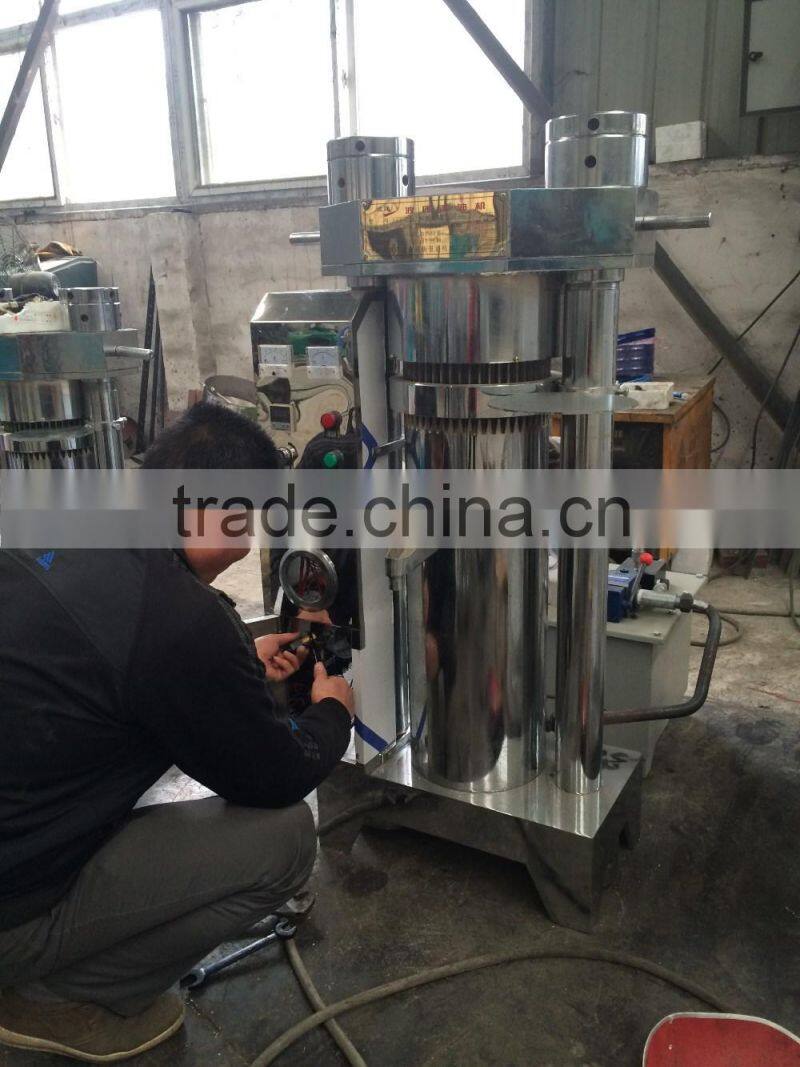

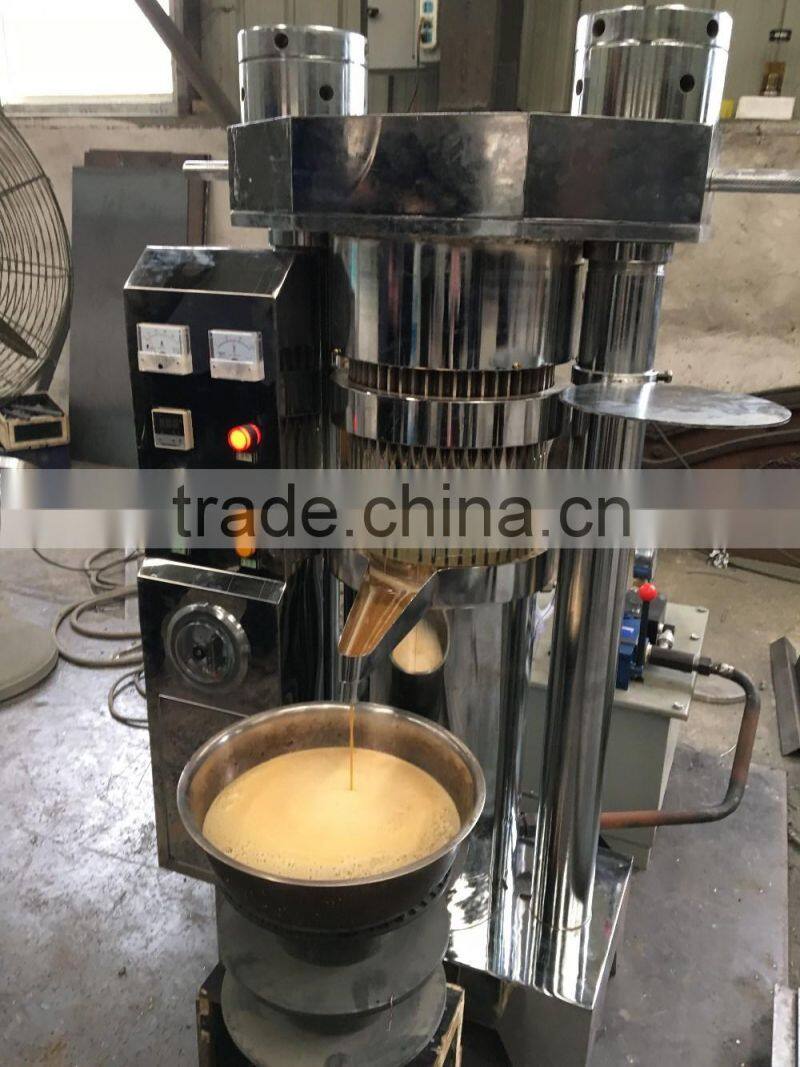

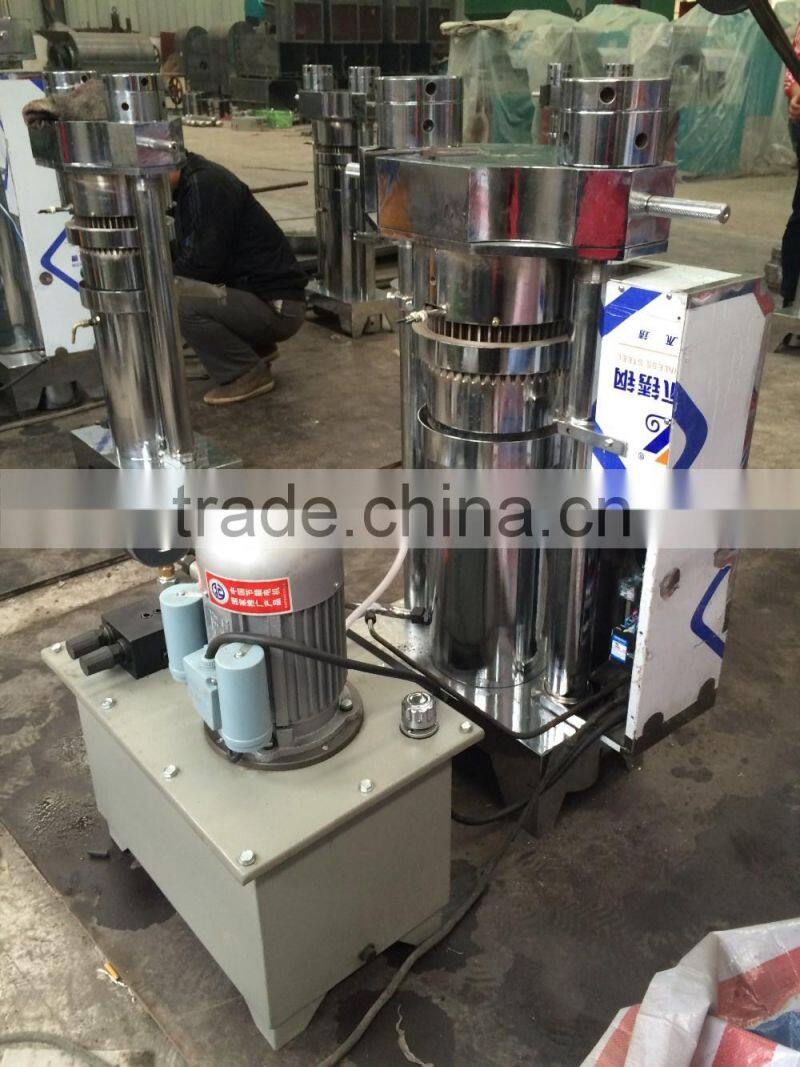

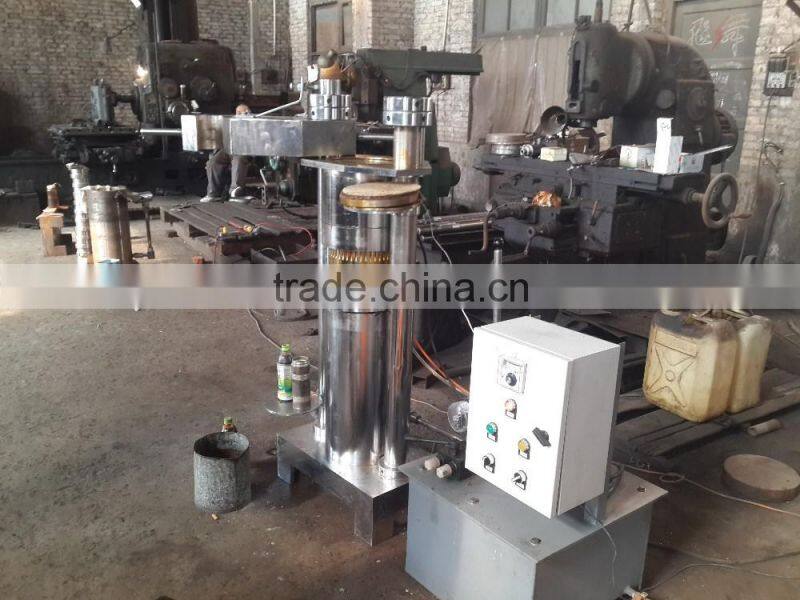

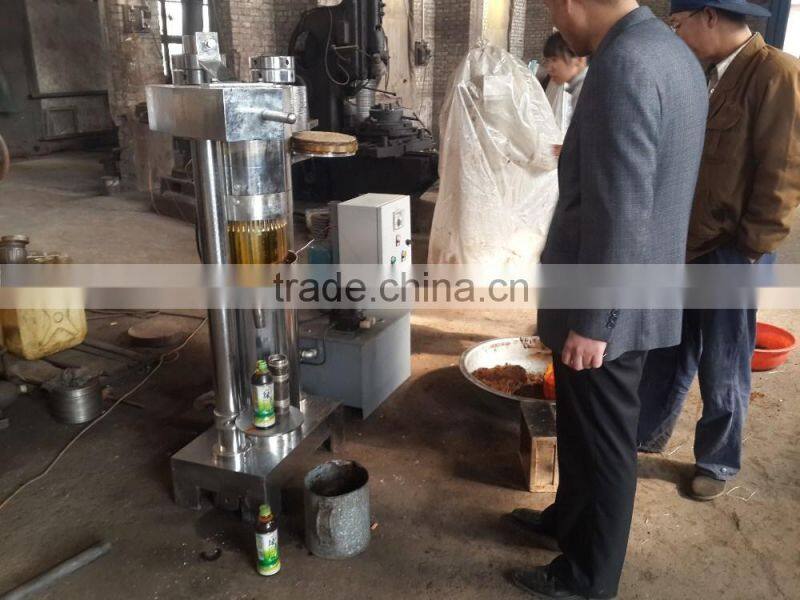

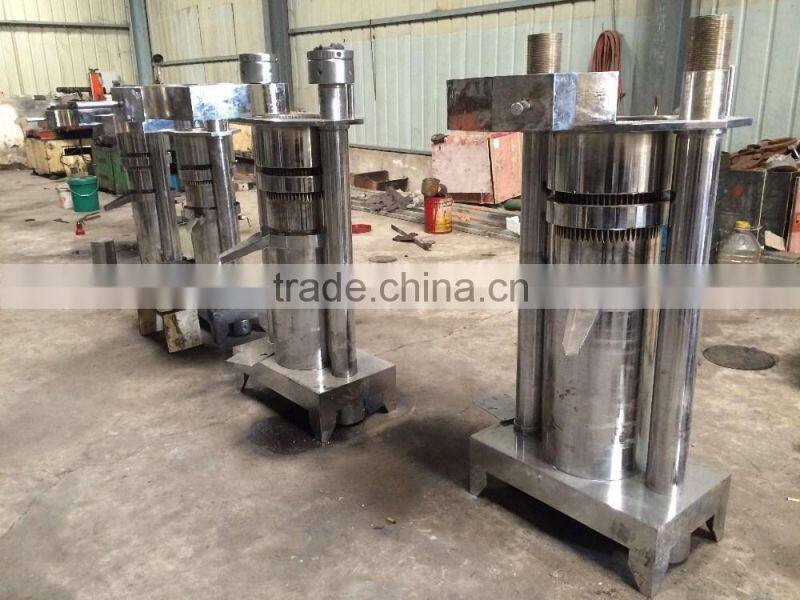

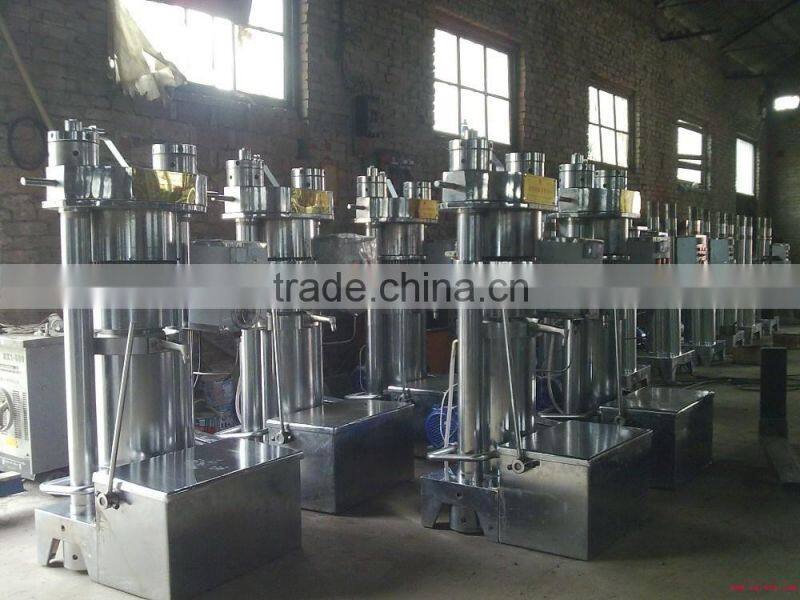

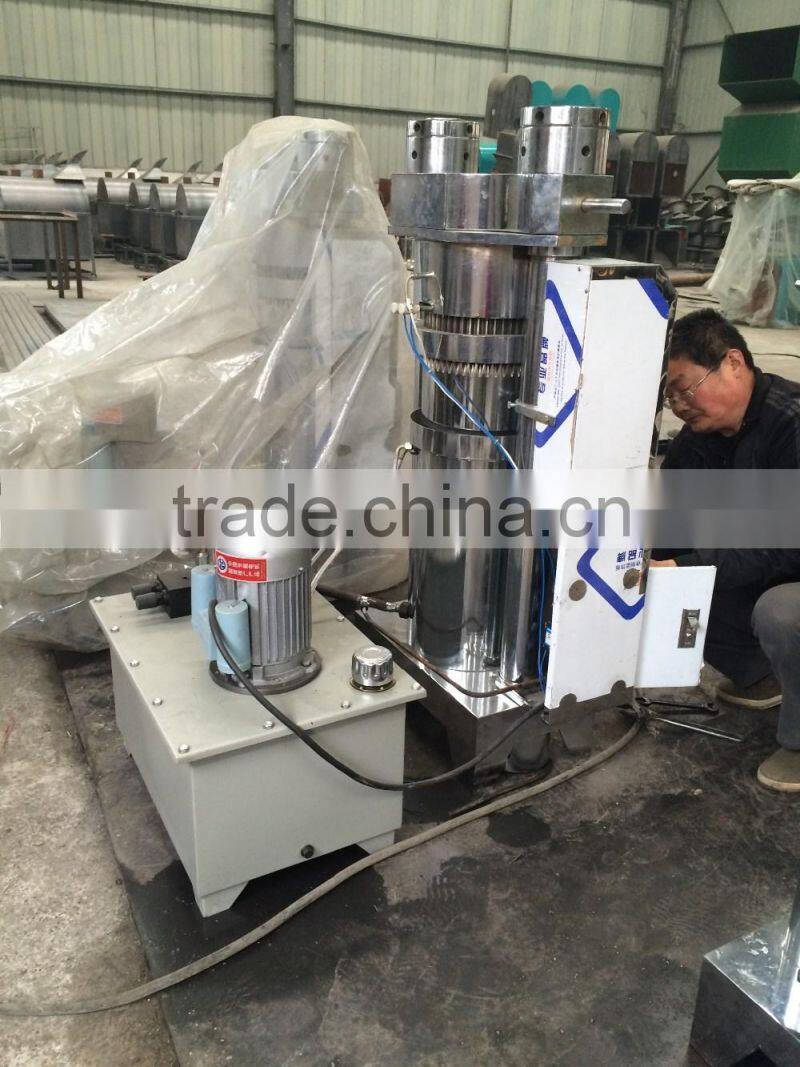

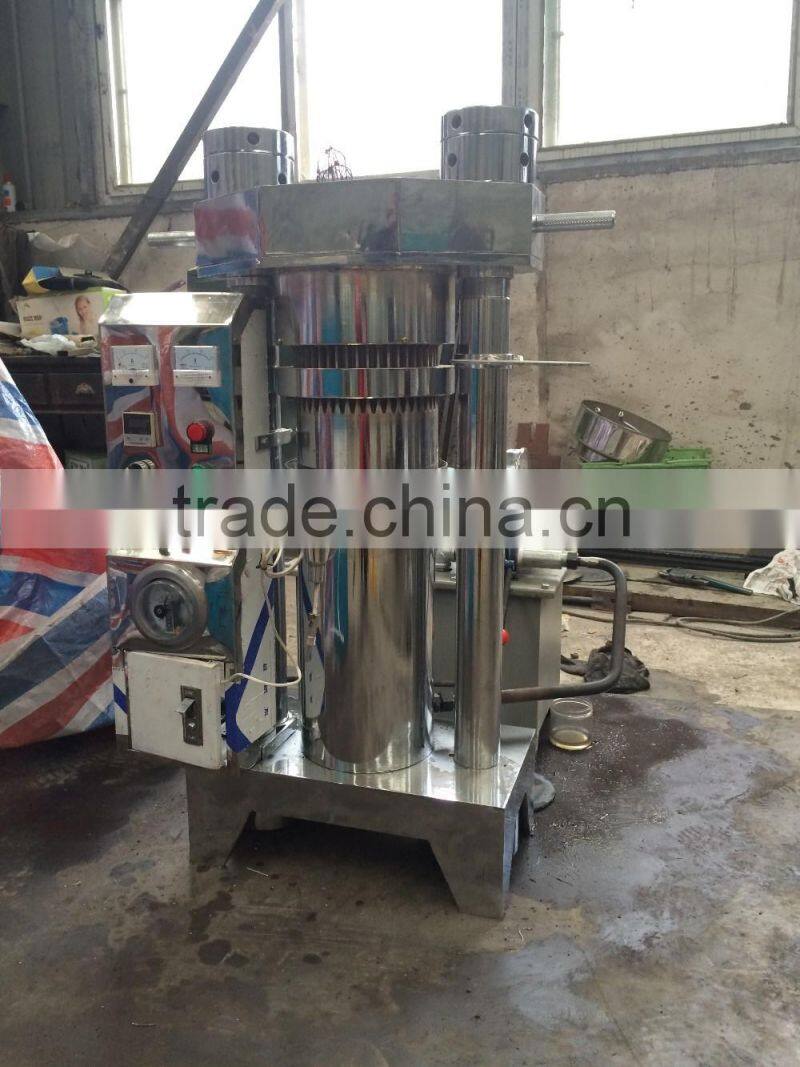

Pictures of hydraulic sesame oil making machine :
Thanks for your interested in our hydraulic sesame oil making machine ! For more deatils, please contact us freely as below:
