China hydraulic sesame oil machine
with hight oil pressing-rate
Brief introduction of hydraulic sesame oil machine :
The machine is suitable for cold pressing or hot pressing any oil seeds and oil plant,
such as olive, sesame seeds, palm kernel, pumpkin seeds, cashew, avocado, tiger nut, fruit seeds, etc.
Only one machine, you could get the better oil and easy to operate.
Main structure of hydraulic sesame oil machine :
The machine is mainly composed of plunger, hydraulic cylinder, upright, flexible top, base, workbench,
feed cylinder, heating collar, fixing, oil tank etc.
Features of hydraulic sesame oil machine :
Hydraulic oil press has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, compact structure,
low energy consumption reliable performance,etc.So this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.
This machine can press at 2 to 7 kilogram per batch, the time is about 6 to 10 minutes.
Technical parameter of hydraulic sesame oil machine :
Models |
HSO-180 |
HSO-230 |
HSO-320 |
External Dimension(mm) |
800*650*1100 |
900*750*1400 |
1100*1000*1500 |
Weight of machine |
530kg |
880kg |
1320kg |
Nominal pressure |
1600KN |
2200KN |
3000KN |
Max pressure for working |
55Mpa |
55Mpa |
55Mpa |
Power of electricity heating circle |
1KW |
1KW |
2KW |
Controlling temperature of heating circle |
70-100°C |
70-100°C |
70-100°C |
Sesame weight/time |
1-3kg |
2-7kg |
5-15kg |
Power(kw) |
1.5kw |
1.5kw |
1.5kw |
Raw Material |
Mode |
Oil Extraction Rate(%) |
Time Period/time |
Weight(kg)/time |
10 hours processing capacity(KG) |
|
Sesame
|
180 |
42%-52%
|
5-8min |
1-3 |
150-300 |
230 |
5-8min |
1-7.5 |
400-600 |
||
300 |
6-8min |
1-15 |
1000-1200 |
||
|
Amonds
|
180 |
40%-45%
|
5-8min |
1-2.5 |
150-250 |
230 |
5-8min |
1-6 |
300-500 |
||
300 |
6-9min |
1-14 |
800-1000 |
||
|
Walnuts
|
180 |
50%-60%
|
5-8min |
1-2.5 |
150-250 |
230 |
5-8min |
1-6 |
300-500 |
||
| 300 | 6-9min |
1-14 |
800-1000 |
Its most effectiveness and profitability make it an ideal investment.

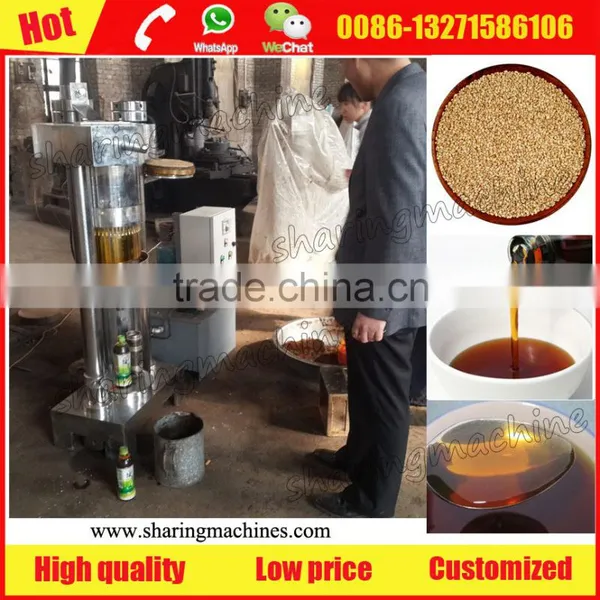

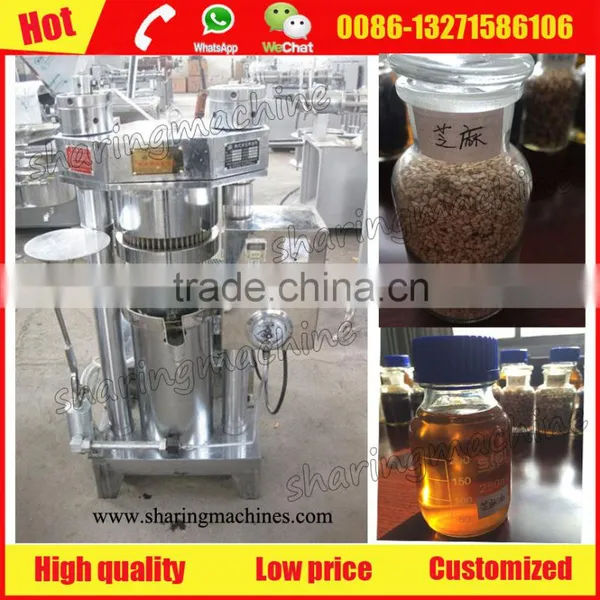

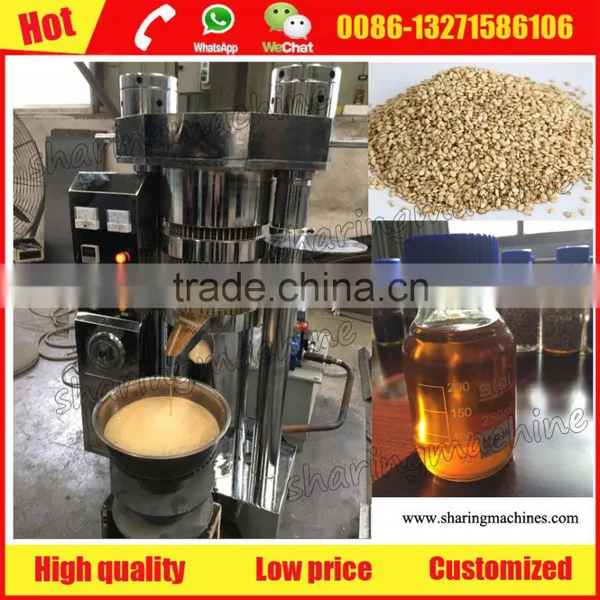

Pictures of hydraulic sesame oil machine :
Thanks for your interested in our hydraulic sesame oil machine ! For more deatils, please contact us freely as below:
