Medical glass vials IV infusion making plant
- 1 Set / Sets per Month
- SHANGHAI
- T/T
- Scented teatriangle package packaging machine Inside and outside bag packaging line
- Give bag packaging machine Between-meal nibblespackaging line
- Internal and external package linkage line Green teatriangle package packaging machine
- Triangle package packaging machine Green teapackaging linkage line
- Between-meal nibblesgive bag packaging machine The five metalsbag packing machine
- Black teatriangle package packaging machine Packaging linkage line
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Bottles |
Packaging Material: | Glass, Metal, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V (can be customized) | Power: | 50Hz (can be customized) | Place of Origin: | Hunan, China |
Brand Name: | FE PHARMATECH | Model Number: | BPY | Dimension(L*W*H): | base on the machine type |
Weight: | base on the machine type | Certification: | GMP, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

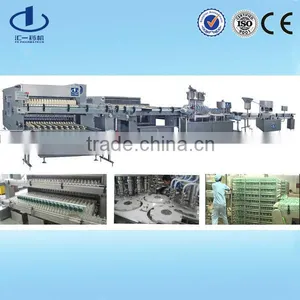

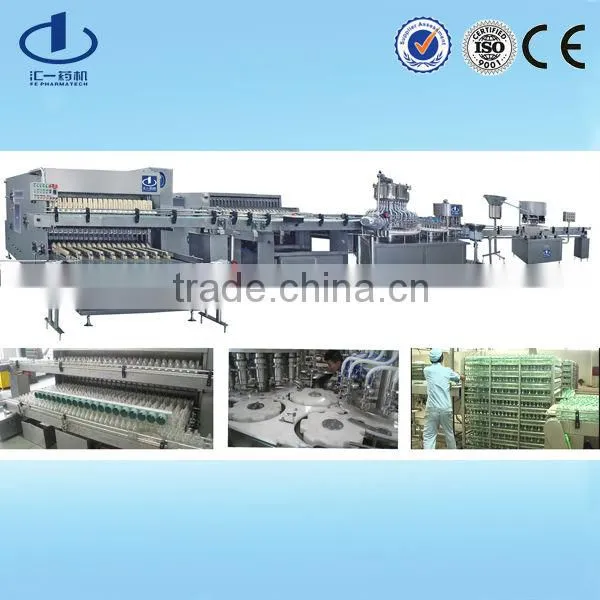

Medical glass vials IV infusion making plant
Main Application :
This production line is suitable for 50ml , 100ml , 250ml and 500ml glass bottle IV-solution producing . The whole line is made up of washing , filling and jamming machines , it can finish automatically the procedure such as bottle-collating , rough or fine washing for inside and outside of bottle , filling , plug-pressuring , cap-collating , cap-jamming and cap – rolling , lamp checking, labeling etc. This production line is suitable other liquid medicine for washing , filling and sealing producing also , as :syrup , ding etc .
Function feature:
1. The whole line is with series connection mode, the structure is clear and appearance is elegant.The line can ba separate in different purified class section, and set the buffer area, and the bottle deliver dose not cross area, and totally confirm to the requirements of GMP.
2. The line can made like this: fine cleaning & filling in one machine or filling & stoppering in one machine.Then the line will be short with need less cpace and less operator.
3. The rough washing and fine washing are totally separated and finished in 2 machine, avoid the cross contamination.
4. The bottle washing machine applies the modern structure, roug cleaning adopts the same place for bottle input and output. This saves operator and the machine space. At the same time,the rough cleaning and the fine cleaning bottle output style all adopt the twice bottle recieving technology, solves the problem of bottle collapsed and broken.
5. The rough washing adopts the ultrasonic bottle washing, thoroughly overcoming the brush hair loss, bottles broken, dead area and etc. Moreover, the bottle stays in ultrasonic water for a long time, can reach the requirements of thorough degreasing and decontamination. Good cleaning effect and the low bottle breakage rate.
6. The bottle washing machine uses the intermittent rinsing, avoiding the cross contamination caused by continuous rinsing.
7.Rinsing water can be recycled in the lower class, decreasing the water consumption.
8. The filling adopts the time, constant current theory, the filling quantity is adjusted by the computer with accurate measurement. No bottle, no filling, completely avoid the funnel -like defects. And can realize theCIP/SIP.
9. The production line is with high degree of automation, need less operator, low laboring use, high general use, easy specifications changing.
Main technical parameters
Model | BPY50/500-120 | BPY50/500-200 | BPY50/500-300 | BPY50/500-600 |
Applied bottle size | 50ml,100ml,250ml,500ml | |||
Capacity | 80-120 bottle/min | 120-200bottle/min | 200-300bottle/min | 300-600bottle/min |
Electric capacity | 35KW | 37KW | 45KW | 55KW |
Pressed air consumption | 4 m³/h(0.6MPa) | 5 m³/h(0.6MPa) | 6 m³/h(0.6MPa) | 7 m³/h(0.6MPa) |
Water consumption | Tap water:200ml/bottle purified water:80ml/bottle Injection water:100ml/bottle 0.2MPa | |||
Outer dimension(mm) | 17800X6000X2300 | 19000X6000X2300 | 24000X7000X2300 | 24000X7000X2300 |
Note:
1. In the table, the capacity is inversely proportional to the bottle size, that is the size much bigger the capacity is much lower, the specific is correct based on the tender documents.
2. In the table, the outer dimension can do according to the workshop size( that is to change the place style of the washing machine)
