Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Based Panel Machine > MD45SA Woodworking Automatic Edge Banding Machine

MD45SA Woodworking Automatic Edge Banding Machine

MD45SA Woodworking Automatic Edge Banding Machine photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, automatic edge banding machine, automatic edge bander machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, automatic edge banding machine, automatic edge bander machine
Place of Origin Shandong, China
Brand Name HZH
Model Number MD45SA
Voltage 380V
Power(W) 10.76KW
Dimension(L*W*H) 2980x940x1260mm
Weight 1000kG
Certification ISO9001/CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

We offer High quality Woodworking Auotomatic Edge Bander Machine MD45SA



Product Description



Thickness of panel:10-45mm
Min width of panel:60mm
Min length of panel:160mm
Belt height:12-47mm
Thickness of belt:0.4-3mm(PVC)
Panel feeding speed:0-14m/min(Stepless)
Air pressure:0.7Mpa
Pre-milling motor:2X1.8KW    12000r/min   200HZ
End cutting motor:2x0.35KW   12000r/min    200HZ
Fine trimming motor:2x0.5KW    12000r/min    200HZ
Buffing motor:2x0.18KW    1400r/min   50HZ
Heating power of glue tank:2.6KW
 Panel feeding motor:1.1KW
Glue spindle motor:0.75KW
Power of accessorial heater:0.12KW
Total power:10.76KW
Outline size:2980x940x1260mm
Net Weight:1000kg

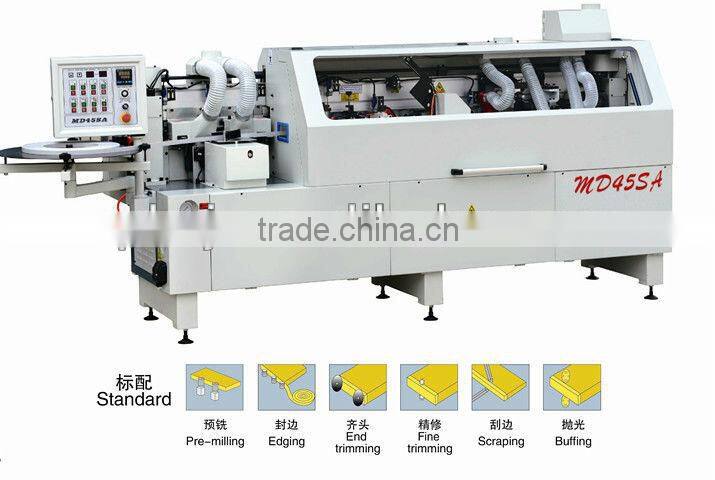

  This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,pre-milling,edging,end cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is especially suitable for the factory producing board furniture.
