Help CenterMD60G-6 Woodworking Automatic Edge Banding Machine
Related Products
-
MD60G-7 Woodworking Automatic Edge Banding MachineUS$ 10,000 - 15,000MOQ: 1 Set -
MD45S Woodworking Auotomatic Edge Banding MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
MD516-3 Woodworking Automatic Edge Banding MachineUS$ 5,000 - 8,000MOQ: 1 Set
-
Woodworking End Corner Rounding MachineUS$ 200 - 500MOQ: 1 Set
-
Woodworking Edge Banding Edge Bander Machine for Edge WorkingUS$ 4,000 - 6,500MOQ: 1 Set

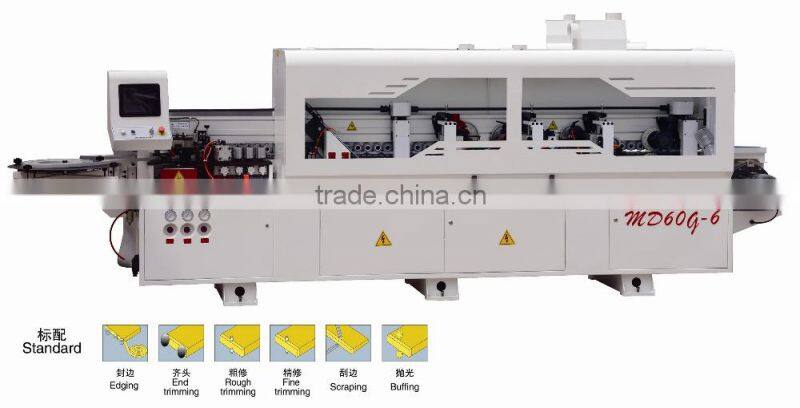

We offer High quality Auotomatic Edge Bander Machine MD60G-6
PLC Control with TOUCH SCREEN
Model MD516NX-5
Thickness of panel: 10-60mm
Min width of panel: 60mm
Min length of panel: 160mm
Thickness of belt: 0.3-3mm(PVC)
Max. belt size higher than panel:1.5mm
Panel feeding speed:0-26m/min(Adjustable)
Air pressure:0.7Mpa
End cutting motor: 2x0.5KW 12000r/min 200HZ
Fine trimming motor: 2x0.75KW 12000r/min 200HZ
Buffing motor: 2x0.25KW 1400r/min 50HZ
Heating power of glue tank:.2.6KW
Panel feeding motor:2.2KW
Glue spindle motor: 0.75KW
Power of accessorial heater:0.12KW
Total power: 8.67KW
Outline size: 4000x1200x1500mm
Net weight: about 1400Kg
Youtube Video: https://youtu.be/ZTt0Z_H-kU8

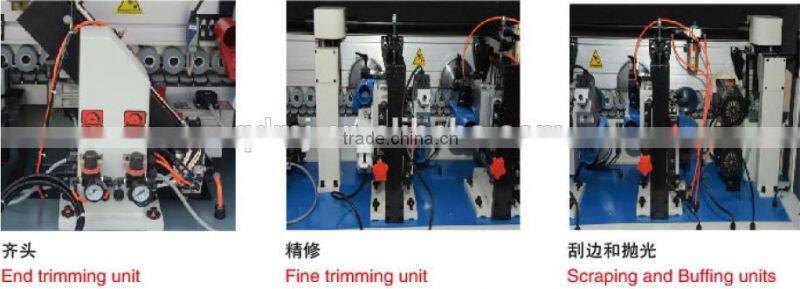

The machine is used for MDF, wooden board and shaving board. It can complete the processes of feeding work piece, feeding coiled material, cutting, end trimming, fine trimming,scraping and buffing. It can achieve the level as same as foreign machines and the price is favorable. It is especially suitable for the factory producing board furniture.
Package: Plastic film package.
Delivery: About 20 days after receive the down payment.
