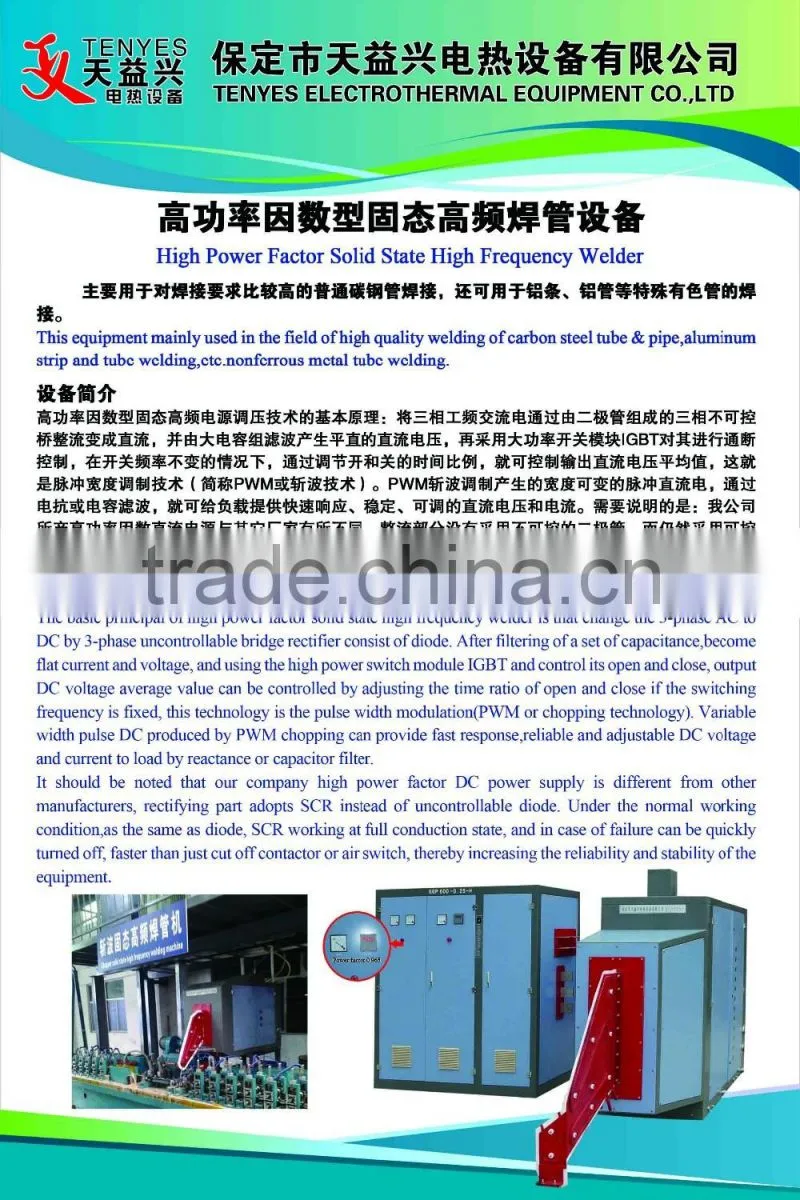

High Efficiency Solid State HF Welder use the chopper type rectifying circuit for adjustment power and adjustment voltage for IGBT components. In this case, whatever how much the load weight of equipment is the equipment will always work in the high power factor condition, and have the performance for the fine voltage and power regulation that can not be achieved by SCR so that the welding temperature control will be more precise and weld quality will greatly improve.
The PWM pulse width modulation chopping with IGBT is a kind of DC power supply for HF control, the control speed is faster as 40 times as SCR system, and the DC power supply can provide the ideal precision thermal control and very fast fault protection action to make the equipment more secure and reliable.
Composed with the three phase full-controlled rectifier circuit by phase-shifted control of SCR, it has the following advantages:
1. When it works in a full range of DC, the power factor is high, the harmonic is smaller and the harmonic interference is small on the power grid.
2. The reactive loss is small, the conversion efficiency for power supply is high and much energy saving.
3. As the working frequency for the chopper circuit is high, the response speed for the adjustment voltage and adjustment power is faster than the former for several dozens times, therefore the weld seam quality is better.
4. Because the chopping component is IGBT which has self-turn-off capability. When it is failure, it can be cut off in a very short time to avoid inverter damage and play a greater protective effect.
5. Input voltage scope is wide,output accuracy is high.
TENYES ELECTROTHERMAL EQUIPMENT CO.,LTD established in 2002 and is a research, development, manufacture, sales and technical service of high-tech private enterprise. Our company specialized in manufacturing high frequency and medium frequency induction heating power supplies and related supporting equipment.
Our products are widely used in the field of pipe welding, brazing, smelting (casting),forging, petrochemical,tableware,heat treatment of metals(quenching, annealing, tempering). Our products are popular in domestic market, some products are exported to Southeast Asia, Western Europe.
1.Free Fumigation Seaworthy Export Wooden Package
2.Mark as buyer's request
3.Pallet for fork truck
After-sales Service Provided: Engineers available to service machinery overseas(Round- trip air ticket, food, accommodation, salary covered by buyer)
