TENYES ELECTROTHERMAL EQUIPMENT CO.,LTD is a research,development, manufacture, sales and technical service of high-tech private enterprise, which specialized in manufacturing high frequency, medium frequency and super-audio frequency induction heating equipment. Our equipments are operating in over 20 provinces, municipalities and autonomous regions. The machines of TENYES are sold to many other countries, such as USA, Germany,Belgium,Italy,Russian,Thailand,Pilipinas,Sri Lanka and so on. TENYES received praises from our customers around world by the superior quality products and perfect after-sale service.

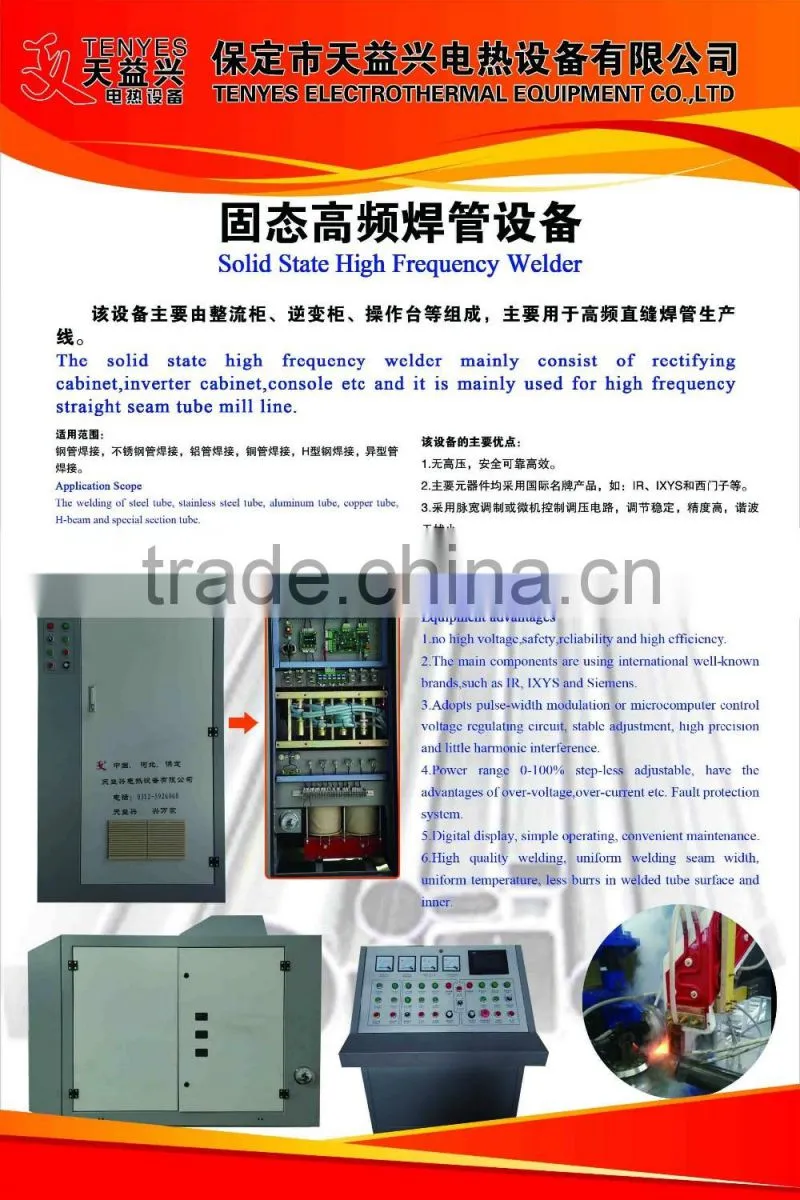

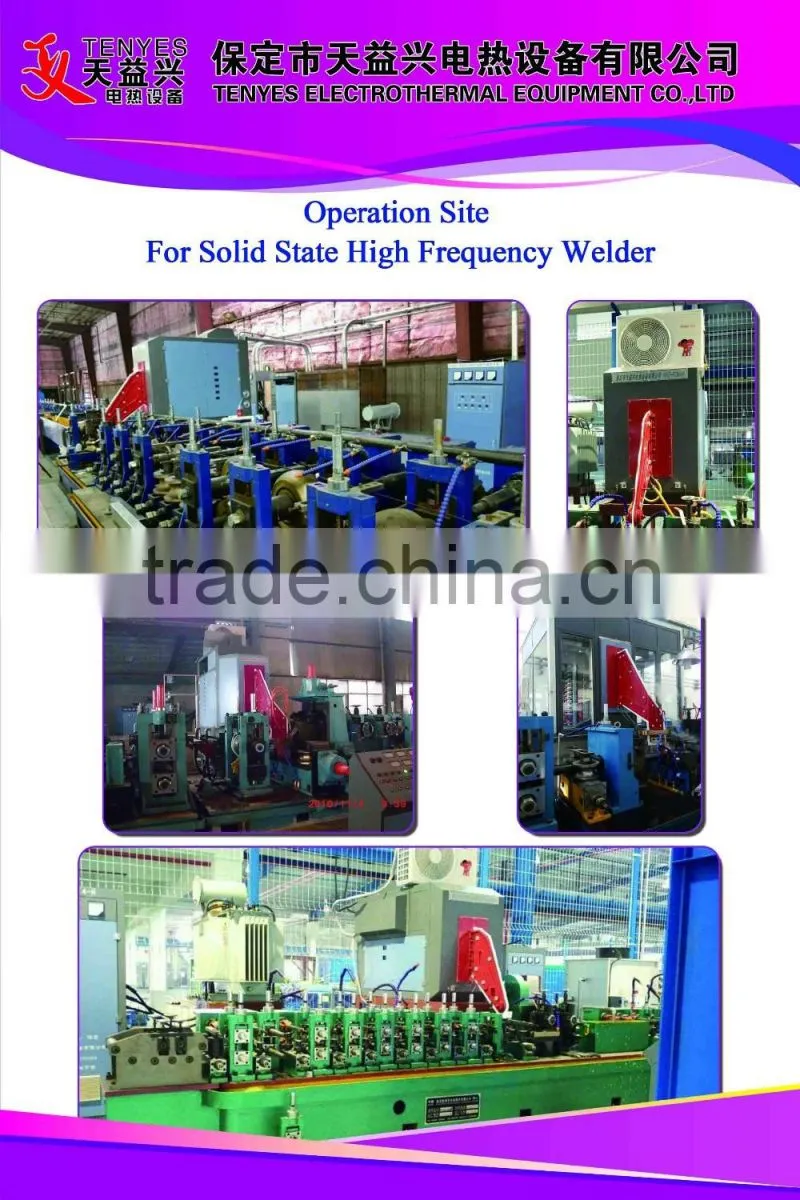

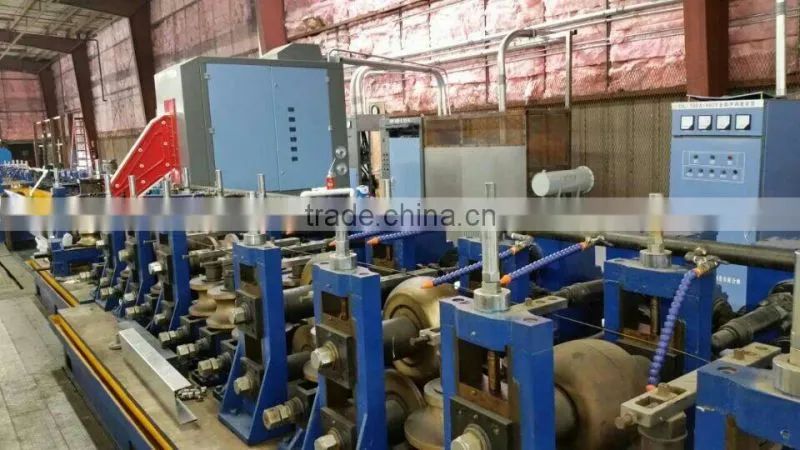

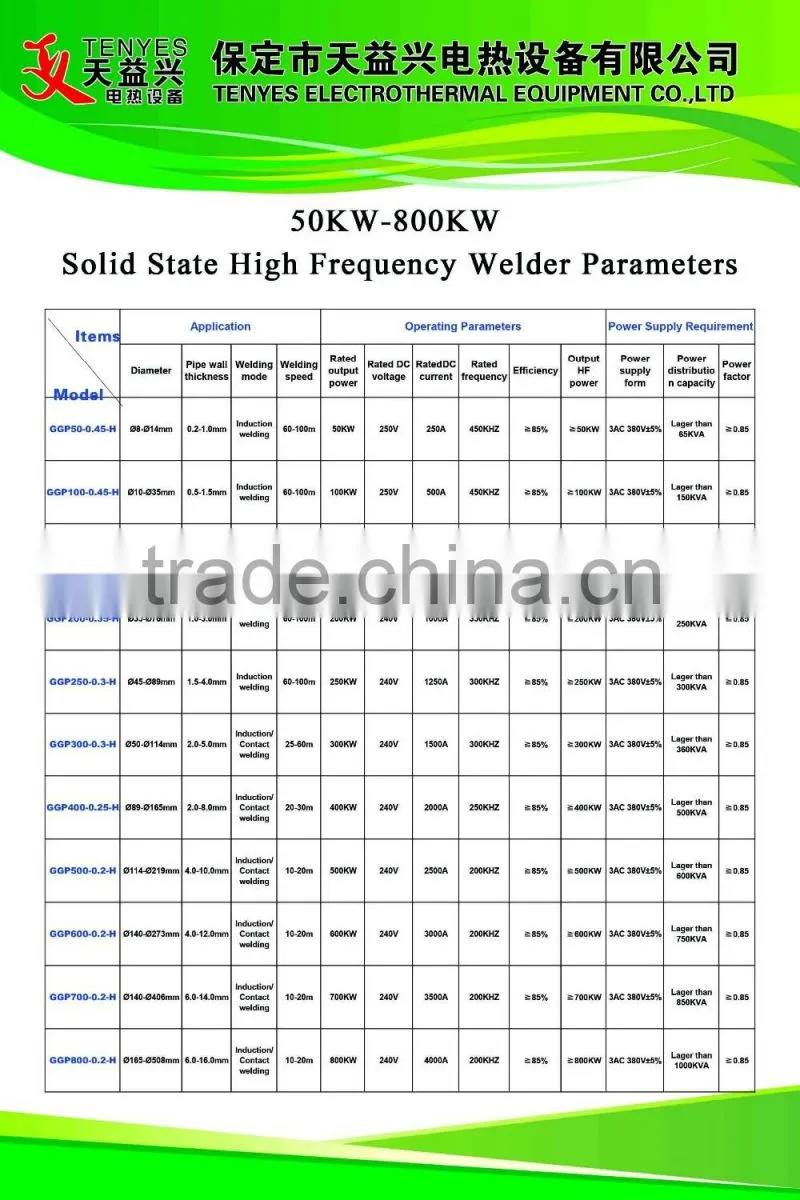

Brief Introduction for each part of solid state HF Welding machine
Solid state HF welding machine is specially designed for straight seam welding. It adopts high power components of US IR MOSFET and Germany IXYS company rapid recovery diode.The high power capacitor C and inductor coil L compose current-mode parallel upper-voltage resonance circuit,which doesn't need output transformer. Thus, it not only improves the efficiency, but also increase the reliability of the welder.The solid state HF welder has such distinct features as energy-saving,effective welding,simple structure, easy maintenance, low failure rate,low maintenance cost etc.
1). rectifying cabinet
As for solid state high frequency welder, the rectifying cabinet uses high power thyristor rectifier,and some harmonic absorption and LC resonant filter components are designed at the same time to reach the goal of reducing the equipment output voltage pulse and increase ripple coefficient index. The ripple coefficient of the whole equipment output is less than 5% to ensure the welding quality and avoid the disturbance of harmonic wave component to power grid simultaneously.
2). inverter output cabinet
Offering high frequency power supply to steel pipe/tube welding, IRFP460 and the quick recovering diode DSEI60-06P of American IR corporation and Germany IXYS corporation are used to form electricity converter as the main power device. The single layer power module output power is more than 50KW. The same power modules have the feature of interchangeability.

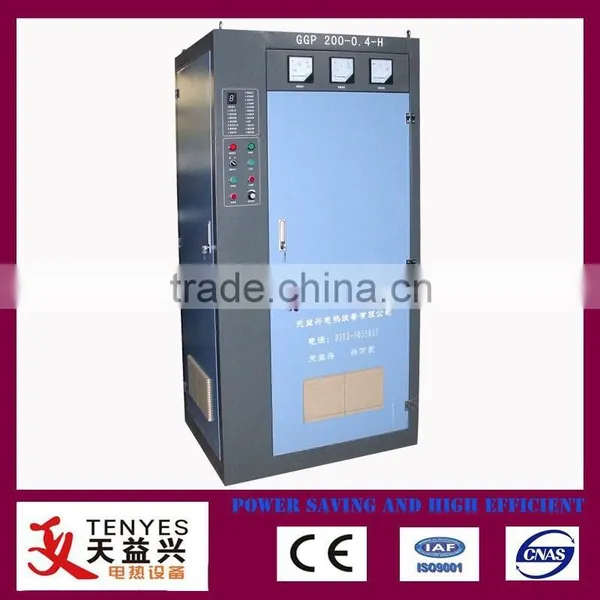

3). central control console
Indicate the output current and voltage of the DC power unit; armature voltage and current, The pipe line can be completely controlled by the central control unit.It achieve remote manipulation and power regulation of solid state high-frequency welder.
4). isolating transformer
Isolation step down transformer adopts oil-immersed type transformer, and reduces the input voltage from alternating voltage 380V to about 200V to supply the rectifying cabinet, at the same time, this transformer reduces harmonic wave interference of electric network and increase the power factor of the solid-state high frequency welder.
5). air-water cooler
Circulating cooling system for soft water has completed its cooling to the warming section of rectifying cabinet and output inverter cabinet, using air-water heat exchanger and internal circulation adopts distilled water,with the function of temperature self-control and display. This system have the features of complete protection and with no need to additionally build cooling tower and circular pool.
6).water-water cooler
Circulating cooling system for soft water has completed its cooling to the warming section of rectifying cabinet and output inverter cabinet, using air-water heat exchanger and outer water (normal) cools down the inner water (distilled water), with the function of temperature self-control and display. This system have the features of complete protection and with additionally build cooling tower and circular pool.
7). DC speed adjust unit (water cooling)
DC Drive cabinet for Steel pipe welding machine with speed - current double closed-loop control, with a wide speed range, good dynamic performance, the advantages of multi-motor linkage
1.Free Fumigation Seaworthy Export Wooden Package
2.Mark as buyer's request
3.Pallet for fork truck
After-sales Service Provided: Engineers available to service machinery overseas(Round- trip air ticket, food, accommodation, salary covered by buyer)
