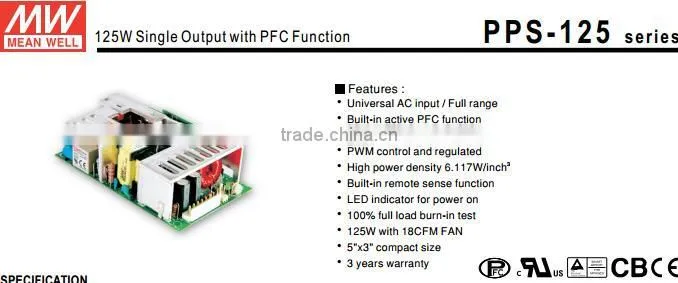

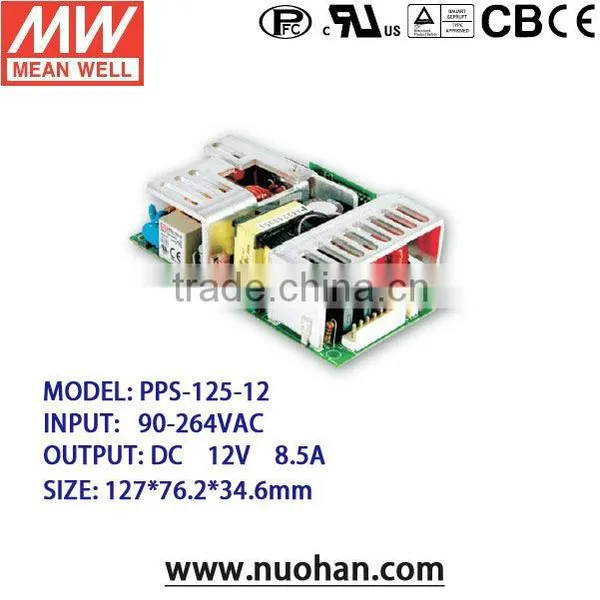

Help CenterMean Well PPS-125-12 125W 12V Smps PFC 125w 12v Power Supply
Related Products
-
Meanwell 60w 15v Switching Power Supply/60W Single Output Medical Type/12V Ac/dc Switching Power Supply/power Supplies 12v 60wUS$ 1 - 100MOQ: 1 Piece -
Meanwell 65W Medical Type 65w Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power SupplyUS$ 1 - 20MOQ: 1 Piece
-
Meanwell MPS-45-15 45W 15v 3a Single Output Medical Type Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well UL CE CB TUV EMC EPS-35-36 35w 36v Power SupplyUS$ 1 - 20MOQ: 1 Piece
MODEL |
PPS-125-12 |
||
OUTPUT |
DC VOLTAGE |
12V |
|
RATED CURRENT |
8.5A |
||
CURRENT RANGE (convection) |
0 ~ 8.5A |
||
CURRENT RANGE (18CFM FAN |
0 ~ 10.5A |
||
RATED POWER (convection) |
102W |
||
RATED POWER (18CFM FAN) |
126W |
||
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
||
VOLTAGE ADJ. RANGE |
11.40 ~ 12.60V |
||
VOLTAGE TOLERANCE Note.3 |
±2.0% |
||
LINE REGULATION |
±0.5% |
||
LOAD REGULATION |
±1.0% |
||
SETUP, RISE TIME |
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load |
||
HOLD UP TIME (Typ.) |
24ms/230VAC 24ms/115VAC at full load |
||
INPUT |
VOLTAGE RANGE |
90 ~ 264VAC 127 ~370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
||
POWER FACTOR (Typ.) |
PF>0.93/230VAC PF>0.98/115VAC at full load |
||
EFFICIENCY (Typ.) |
80% |
||
AC CURRENT (Typ.) |
115VAC |
1.7A |
|
230VAC |
0.75A |
||
INRUSH CURRENT (Typ.) |
COLD START 24A/230VAC |
||
LEAKAGE CURRENT |
<2mA / 240VAC |
||
PROTECTION |
OVER LOAD |
130 ~ 160% rated output power |
|
Protection type : Fold back current limiting, recovers automatically after fault condition is removed | |||
OVER VOLTAGE |
13.8 ~ 16.2V |
||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
ENVIRONMENT |
WORKING TEMP. |

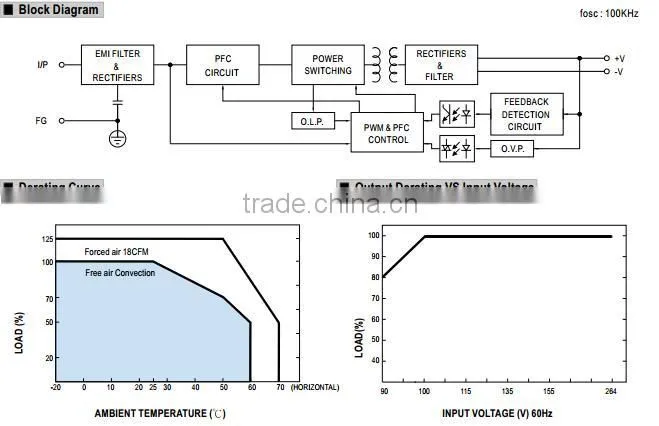

-20~+70°C (Refer to derating curve) |
|
WORKING HUMIDITY |
20~90% RH non-condensing |
||
STORAGE TEMP., HUMIDITY |
-40~+85°C, 10~95%RH |
||
TEMP. COEFFICIENT |
±0.05%/°C (0~50°C) |
||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||
|
SAFETY&EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1 approved |
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100MOhms/500VDC/25°C/70%RH |
||
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A |
||
OTHERS |
MTBF |
111.7Khrs min. MIL-HDBK-217F (25°C) |
|

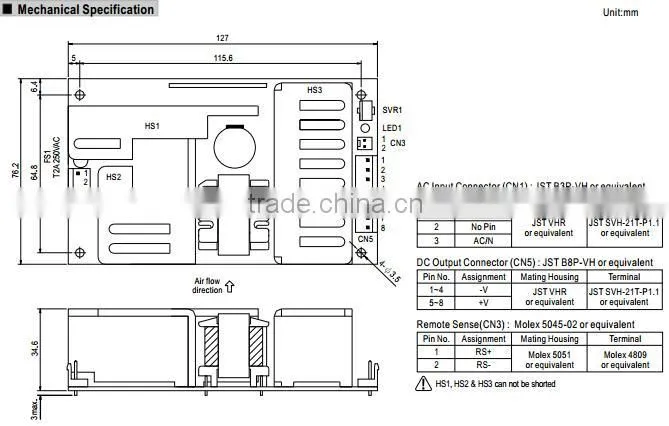

DIMENSION |
127*76.2*34.6mm (L*W*H) |
||
PACKING |
0.37Kg; 36pcs/14.3Kg/0.79CUFT |
||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Heat Sink HS1,HS2 can not be shorted. |
||
