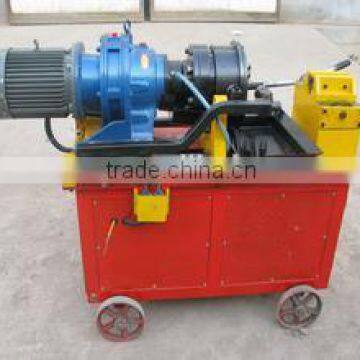

Welcome to visit Ronen company!( Reinforced rib - stripped thread rolling machine)
features:
1, Die optimization improvements, substantial increase in processing mm - 36 mm 50mm steel wire teeth accuracy and efficiency, effective solution to the industry in processing mm - 36 mm 50mm bar top to torsional deformation ( first flared silk ), parts of low loss and High Efficiency Technology Challenges.
2, at once Steel Threaded processing, the processing thread tooth - shaped rich, smooth.

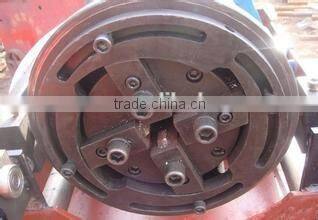

3, innovation of die structure design, the use of direct axis continuously through bad regulation, effectively reducing rolling round loss.
4, using unique technology of lead angle, silk light on the shortcut, improve work efficiency
5, 3.1 - wire, high concentricity, stable and strong.
6, steel easy feeding machine automatically after rolling the car, each Nissan 500-700 a head.
7, the long axis design, dental Machinable steel wire Length reached : 120mm.
Operation:
1, Through to power, start pump, by the main motor button, to turn in to handle, to workpiece direction in to implementation of cutting, PEEL RIB Length reached requirements, PEEL RIB knife automatically up open, Turn handle continue to in to, to implementation of get rolling thread, get silk round of and steel contact slightly hard, and spindle rotating a week, axis to in to a pitch length, in to to Must be degree, to implementation of automatically in to, until the entire get rolling process complete automatically parking, and automatically reverse, to implementation of automatically back knife.
2, when the automatic cutter, turning the feed lever clockwise, will be rolled back to its original position, the machine automatically stops, the rib - stripped and the Tool automatically, you can remove the artifacts that have been processed.3, with a ring gauge to check the quality of the machined Steel Threaded.
Technical Parameters:
Model: |
RN-DS |
Max Thread Length: |
80MM |
Thread Pitch |
1.75-3.5MM |
Rebar Diameter: |
16-40MM |
Thread Angle |
60°/75°,Customized |
Spindle Speed: |
48-82 r/min |
Cooling Pump Power: |
40W |
Max Output Torque: |
520KN |
Motor Power: |
4KW 8A |
Voltage: |
3-380V 50HZ |
Color: |
According to the model |
Daily Output |
600-1000 heads |
Dimension: |
1*0.7*0.9M |
Net Weight: |
400kg |
Certification: |
ISO9001:2008 |
Package: |
Wooden Case, Iron Frame |
Operation Flow |
1 Rip Peeling of rebars 2 Rolling parallel threads on rebar head |
||
Applied in |
1 Constructions 2 Nuclear power station 3 Railway station 4 Power transmission tower 5 Satalaunch |
||
1, for cooling liquids must be water soluble coolant.
2, is strictly prohibited without coolant rolling processing thread.
3, to be reinforced at the end of the processing should be smooth, will take no tooth SAWS cutting, and in the end 100mm length on the inside straight, do not allow bending, do not allow gas cutting or cutting machine for cutting end directly processed.
4, when the initial cutting feed should be uniform, never travels in case the blade split.
5, guide rails, skateboarding, mechanical stop device should be cleaned and oiled regularly.
6.Filings should be cleaned up promptly a day,
7, cooling liquid tank cleaned once a half months.
8, retardment machines should be lubricated periodically to keep the oil level.
9, straight thread machine should have regular maintenance.
10, chassis must be inspected daily and reliable neutral or grounded.
wooden case for thread rolling machine
within 7 days or according to the order
1.Professional and patient consulting service to help you find the suitable solution.
2.Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3.Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4.Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5.Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6.For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7.For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.
