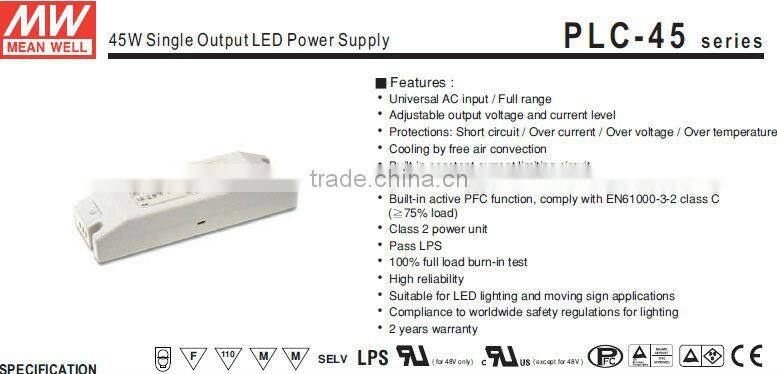

Meanwell Power Suppli 27v 45w PFC Function ul Led Driver

Name: Meanwell Power Suppli 27v 45w PFC Function ul Led Driver
Brand: Meanwell
SKU: 117424719
Availability: InStock

Meanwell Power Suppli 27v 45w PFC Function ul Led Driver thumbnail-1

Meanwell Power Suppli 27v 45w PFC Function ul Led Driver photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Meanwell

Model Number:

PLC-45-27

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Meanwell

Model Number PLC-45-27

Output Power Other, 45.9W

Output Type Single

Input Voltage Other, 90 ~ 264VAC 127 ~ 370VDC

Output Voltage 27V

Output Frequency 50-60HZ

Output Current 1.7A

MODEL		PLC-45-27
OUTPUT	DC VOLTAGE	27V
	CONSTANT CURRENT REGION Note.6	20.25 ~ 27V
	RATED CURRENT	1.7A
	CURRENT RANGE	0 ~ 1.7A
	RATED POWER	45.9W
	RIPPLE & NOISE (max.) Note.2	2.7Vp-p
	VOLTAGE ADJ. RANGE Note.5	25 ~ 30V
	CURRENT ADJ. RANGE Note.5	1.275 ~ 1.75A
	VOLTAGE TOLERANCE Note.3	±10%
	LINE REGULATION	±3.0%
	LOAD REGULATION	±5.0%
	SETUP, RISE TIME	1500ms / 230VAC 3000ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	86.5%
	AC CURRENT(Typ.)	0.55A/115VAC 0.25A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A(twidth=50us measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 110%
	OVER CURRENT Note.4	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed.
	OVER VOLTAGE	31 ~ 35V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	95°C±10°C (TSW1)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30~ +50°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.6	UL1310, TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C ( ≥75% load),EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level, criteria A
QTHERS	MTBF	5.15K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	181.56235mm (LWH)
	PACKING	0.41Kg; 30pcs/13.3Kg/0.67CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB. 6. Constant current operation region is within 70% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
